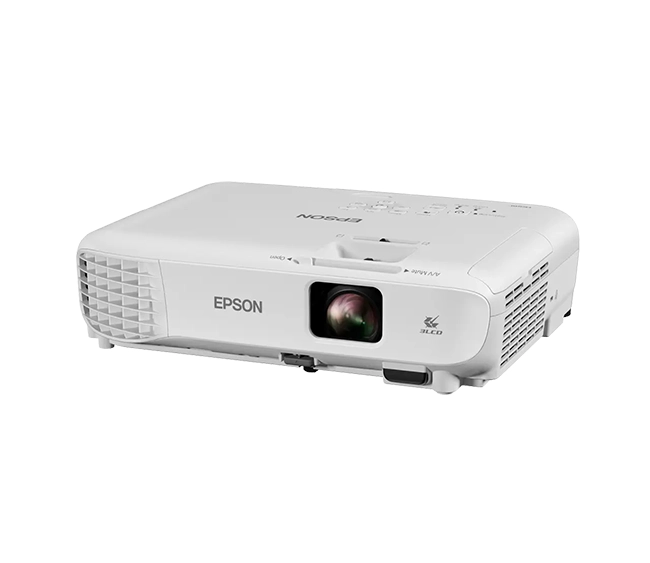

The Epson EB-W06 3700 Lumens WXGA Projector is a
bright 3700 lumens WXGA 3LCD projector designed for classrooms, offices, and home entertainment. With widescreen WXGA resolution (1280 × 800), this projector delivers clear, vibrant, and sharp images even in well-lit rooms. It features flexible connectivity with HDMI, VGA, and USB, a long lamp life of up to 12,000 hours in Eco mode, and reliable Epson 3LCD technology for true-to-life colors.
Display Technology
- Projection System: Epson 3LCD, RGB liquid crystal shutter
- Native Resolution: WXGA (1280 × 800)
- Supported Resolutions: VGA (640×480) up to WUXGA (1920×1200)
- Aspect Ratio: 16:10 native, supports 4:3 and 16:9
- Brightness: 3700 lumens (color & white brightness)
- Contrast Ratio: 16,000:1
- Projection Size: 30" – 320" diagonal
- Throw Ratio: 1.49 – 1.64
- Zoom Ratio: 1.2x optical zoom
- Focus: Manual
Lamp & Lifespan
- Lamp Type: UHE 210W
- Lamp Life:
- Normal Mode: Up to 6,000 hours
- Eco Mode: Up to 12,000 hours

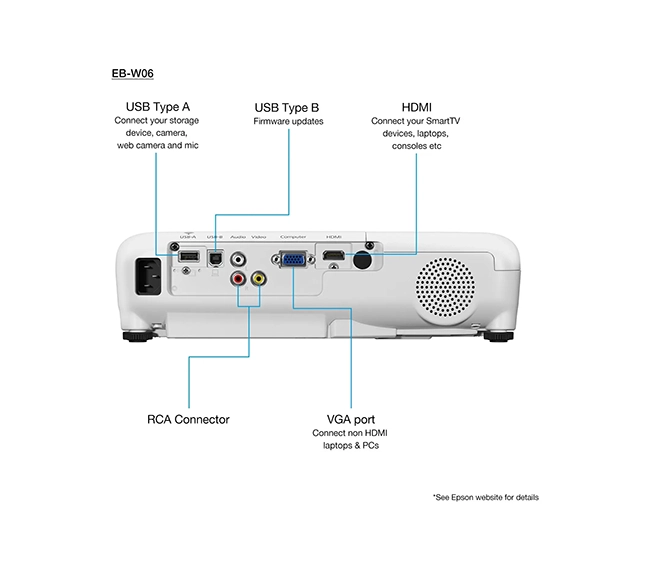

Connectivity
- HDMI: 1 × HDMI input (HDCP supported)
- VGA (D-sub 15 pin): 2 × input, 1 × output
- USB Type-A: 1 × (USB memory, wireless module, DC out)
- USB Type-B: 1 × (USB display, mouse, and control)
- Composite Video: 1 × RCA (Yellow)
- Audio In: 2 × stereo mini jack, 1 × RCA (red/white)
- Audio Out: 1 × stereo mini jack
- RS-232C: 1 × D-sub 9-pin
- LAN (RJ-45): Optional (via external adapter)
Audio
- Built-in Speaker: 2W mono
Performance & Features
- Keystone Correction:
- Vertical: ±30° (automatic/manual)
- Horizontal: ±30° (manual)
- Color Reproduction: Up to 1.07 billion colors
- Projection Method: Front, Rear, Ceiling mount
- Noise Level:
- Normal Mode: ~37 dB
- Eco Mode: ~28 dB
- Wireless Projection: Optional via Epson wireless LAN module
Physical Specifications
- Dimensions (W × D × H): 302 × 234 × 77 mm
- Weight: ~2.5 kg
- Color: White
Power & Efficiency
- Power Supply: 100–240 V AC, 50/60 Hz
- Power Consumption:
- Normal Mode: ~327 W
- Eco Mode: ~225 W
- Standby: <0.3 W
Warranty
- Projector Warranty: 2 years (varies by region)
- Lamp Warranty: 12 months or 750 hours (whichever comes first)
Typical Use Cases
- Education – Widescreen projector ideal for modern teaching content
- Business – Perfect for wide-format presentations in meeting rooms
- Entertainment – Great for movies, sports, and home projection
- Portable Use – Lightweight design for flexible installation
Key Features
- 3700 lumens brightness for clear projection in daylight
- WXGA resolution (1280 × 800) with widescreen 16:10 aspect ratio
- Epson 3LCD technology for vivid and accurate colors
- Long lamp life up to 12,000 hours in Eco mode
- Multiple connectivity options (HDMI, VGA, USB, Composite)
- Compact and lightweight for portability
Meta Description
Epson EB-W06 3700 Lumens WXGA Projector with 1280×800 resolution, HDMI, VGA, and USB connectivity. Long lamp life up to 12,000 hours, built-in 2W speaker, and widescreen 16:10 format. Ideal for classrooms, offices, and home projection.
