KSh 4,150(KSh 4,814 Incl VAT)

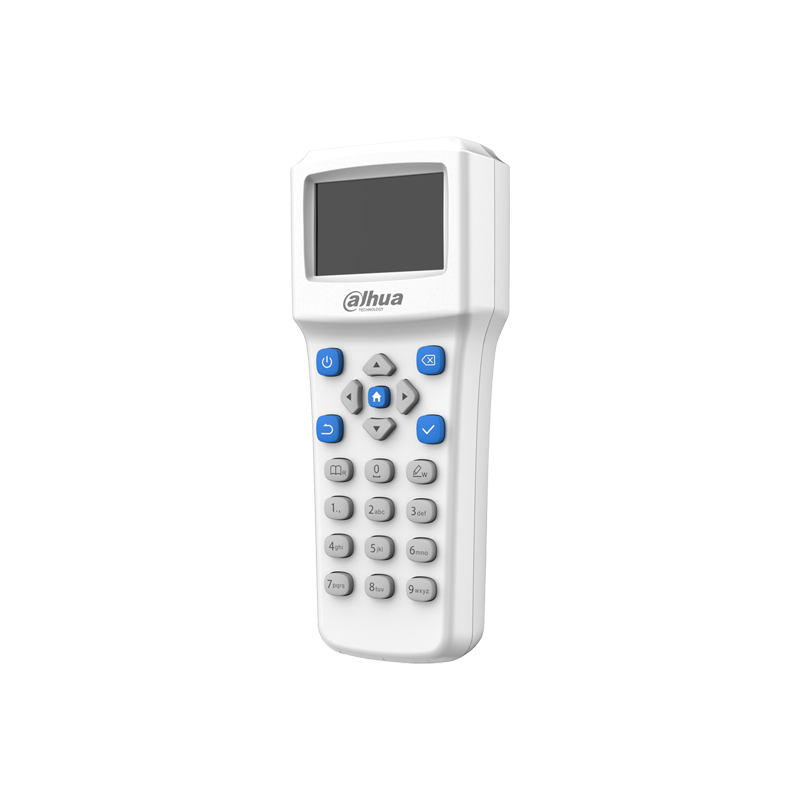

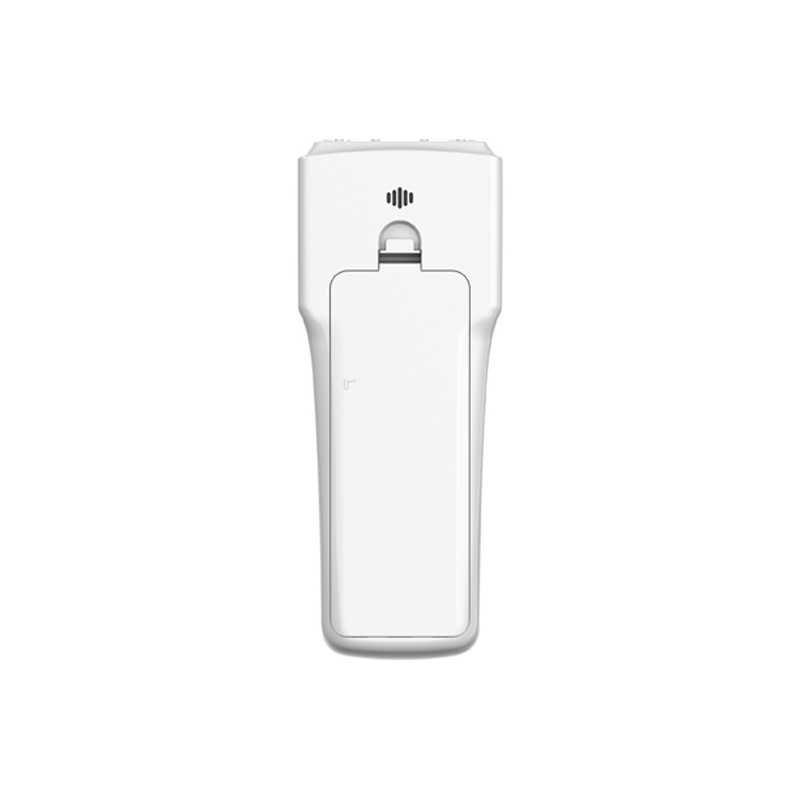

Device Type: Addressable Device Encoder / Handheld Programmer
Model / Part Number: Dahua DHI-HY-BM-1712
Working Power: DC 6 V -2-6
Monitoring Current: ≤ 1.5 mA -2-7
Operating Current: ≤ 60 mA -2-7
Output Voltage: DC 16 V or DC 24 V -2-6
Addressing Method: Electrical Encoder -7-9
Address Range: 1–254 -7-9
Communication Distance: ≤ 1500 m -7-9
Operating Temperature: –10 °C to +55 °C -2-6
Storage Temperature: –20 °C to +65 °C -2-6
Operating Humidity: ≤ 95% RH (no condensation) -2-6
Color: White -2-9
Dimensions: 160.0 mm × 47.3 mm × 31.4 mm -2-6
Weight: 167 g -2-6
Certifications: CE -6
Key Specs: Dahua DHI-HY-BM-1712, Addressable Device Encoder, Handheld Programmer, LCD Display with Backlight, Auto-Address Increment, 1-254 Address Range, 1500m Communication Distance, Low Power Sleep Mode
Usage: Fire Alarm System Installation, Service and Maintenance, Device Replacement, Loop Diagnostics, and System Expansion
