KSh 10,000(KSh 11,600 Incl VAT)

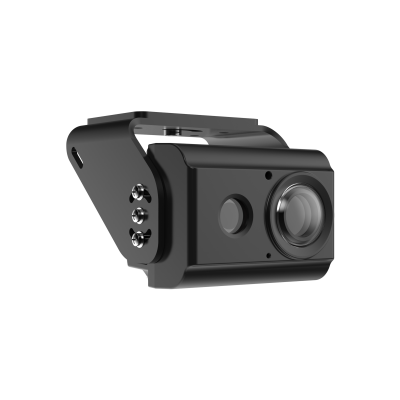

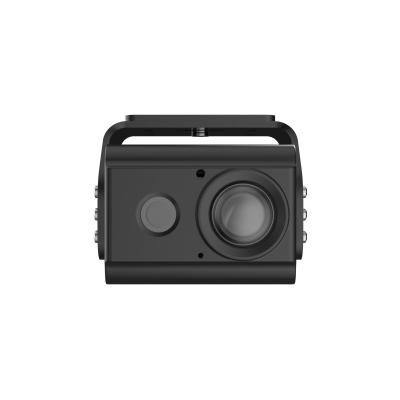

Device Type: 2MP Mobile Analog Blind Spot Detection Camera (Vehicle-Mounted)
Model / SKU: DHI-DAE-CBS5210-H (official base model: DAE-CBS5210-H/V-CY)
Brand: Dahua
Series: Mobile Series / CYP (Blind Spot Detection)
Image Sensor: 1/2.8" 2-Megapixel Progressive Scan CMOS
Max. Resolution: 1920 × 1080 (1080P) @ 25/30 fps
Min. Illumination: 0.02 Lux @ F2.0 (30 IRE); 0 Lux with IR On
S/N Ratio: >42 dB
Lens: Fixed-Focal, 2.0 mm (M12 Mount); Max. Aperture F1.9; Fixed Aperture Control
Field of View: Horizontal 143.2° / Vertical 76.6° / Diagonal 170.2° (Ultra-Wide Angle)
Close Focus Distance: 0.5 m
Illumination: Built-in IR LED (1 LED); Max. IR Distance up to 20 m; Auto IR On/Off Control
Video Output: Switchable CVI / TVI / AHD / CVBS over a single coaxial cable. This is a mobile analog camera — it does not have an RJ45 Ethernet port or PoE support; it is designed for connection to mobile DVRs (MDVRs) in vehicles.
Video Formats: CVI / TVI / AHD / CVBS (PAL/NTSC)
Frame Rate: CVI PAL: 1080P @ 25 fps / 720P @ 25 fps; MJPEG: 1080P @ 30 fps / 720P @ 30 fps
Data Ports: 4-Pin Aviation Port (Power & Video Signal)
Audio Input: Supported
Image Enhancements: DWDR (Digital Wide Dynamic Range), 3D NR (3D Noise Reduction), BLC, Mirror, Rotation Mode, Smart Illumination, White Balance (Auto/Manual), Image Adjustment (Sharpness, Brightness, Contrast, Saturation, Gamma Curve)
Power Supply: 9V–16V DC
Power Consumption: < 5 W
Protection: IP67 Weatherproof; IK08 Vandal-Proof
Casing Material: Metal
Operating Conditions: –40°C to +60°C (–40°F to +140°F); Humidity < 95% RH (Non-Condensing)
Physical: Product Dimensions: 90.0 mm × 110.6 mm × 65 mm (with bracket); Net Weight: 0.372 kg
Key Specs: Dahua DHI-DAE-CBS5210-H 2MP Mobile Analog Blind Spot Detection Camera, 1/2.8" 2MP CMOS, 1920×1080 @ 25/30fps, 2.0mm Fixed Lens (F1.9), 143.2° Horizontal FOV, 20m IR Illumination, CVI/TVI/AHD/CVBS Switchable Output, DWDR, 3D NR, BLC, Mirror, Rotation Mode, 4-Pin Aviation Port, Audio Input, IP67 Weatherproof, IK08 Vandal-Proof, 9–16V DC (<5W), Metal Housing, –40°C to +60°C, 90×110.6×65mm, 0.372kg
Usage: Vehicle Blind Spot Monitoring, Commercial Fleets, Trucks & Buses, Construction Vehicles, Emergency Vehicles, Fleet Safety Systems, and Any Mobile Installation Requiring Ultra-Wide-Angle Analog Video Coverage with Weatherproof and Vandal-Resistant Construction
