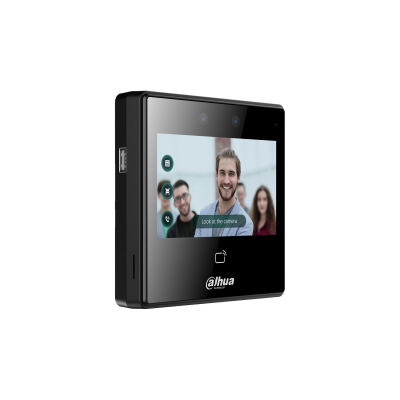

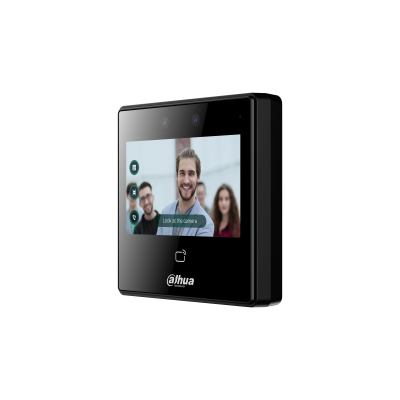

Device Type: Face Recognition Access Controller & Time Attendance Terminal (Standalone, Indoor)
Model / SKU: DHI-ASI3213A-W (official model: ASI3213A-W)
Brand: Dahua
Series: AI / Standalone Lite Series
Display & Camera:- Display: 4.3-inch Capacitive Glass Touchscreen; Resolution 480 (H) × 272 (V)
- Camera: 2-MP CMOS Wide-Angle Dual-Lens HD Camera with Auto IR Illumination and DWDR (Digital Wide Dynamic Range)
Verification Methods: Face, IC Card, Password, and Combination Unlock; Remote Unlock; Multi-User Authentication; Supports Mask Detection; Supports Visitor QR Code with DSS Pro Platform
Face Recognition Performance:- Distance: 0.3 m – 1.5 m (0.98 ft – 4.92 ft)
- Height Range: 1.1 m – 2.0 m (3.61 ft – 6.56 ft)
- Accuracy: 99.9% (with Liveness Detection)
- Comparison Speed: 0.2 s per person (1:N)
Card Reader:- Card Type: IC Card (13.56 MHz MIFARE); Desfire Card (EV3, Compatible with Dahua Card by Default)
- Card Reading Distance: 0 cm – 3 cm (0" – 1.18")
Capacity:- Users: 3,000
- Faces: 3,000
- Passwords: 3,000
- Cards: 5,000
- Administrators: 50
- Records: 300,000
User Types: Normal User, VIP User, Patrol User, Guest User, Blocklist User, Other User
Data Ports & Communication:- Network Port: 1 × RJ-45 (10/100 Mbps Self-Adaptive Ethernet)
- Wi-Fi: IEEE 802.11b/g/n, 2.4 GHz; Wi-Fi AP Mode Supported
- RS-485: 1 Port
- Wiegand: 1 Port
- USB: 1 × USB 2.0 Port
- Peripheral Reader Support: 1 × RS-485 Card Reader; 1 × Wiegand Card Reader
- Network Protocol: IPv4, RTSP, RTP, TCP, UDP, SIP, P2P; OSDP Protocol Supported
Access Control Functions: Anti-passback, Tamper Alarm, Duress Alarm, Door Sensor Timeout, Intrusion Detection, Illegal Card Exceeding Threshold; First User Unlock; Remote Verification; Restricted List / Trusted List; Real-time Monitoring; Web Configuration; Auto Registration
Period / Schedule: 128 Period Lists; 128 Holiday Periods
Interoperability: ONVIF; CGI; SDK & API
Power Supply: 12 VDC, 1.5 A; Power Consumption ≤18 W; Power Adapter Optional (Sold Separately)
Casing Material: PC + ABS
Physical:- Product Dimensions (H×W×D): 115.0 mm × 118.0 mm × 27.1 mm (4.53" × 4.65" × 1.07")
- Net Weight: 250 g (0.55 lb)

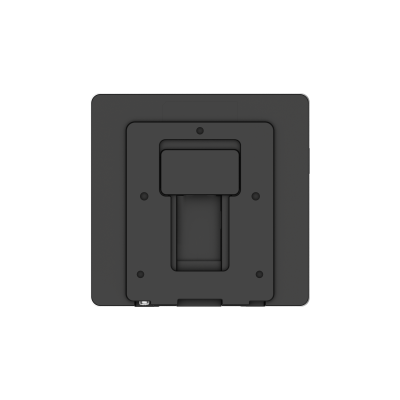

- Installation: Wall Mount; 86 Case Mount; Desk Mount (Wall Mount Bracket Included)
Environmental: Operating Temperature: –10°C to +40°C (+14°F to +104°F); Operating Humidity: 0%–90% RH (Non-Condensing); Indoor Use Only
Key Features: Visible Light Facial Recognition with Liveness Detection; 4.3-inch Touchscreen (480×272); 2-MP CMOS Dual-Lens Camera with IR and DWDR; Multiple Unlock Methods (Face, Card, Password, Remote, Combination); Supports Mask Detection; Supports Visitor QR Code with DSS Pro Platform; 3,000 Users / 3,000 Faces / 5,000 Cards / 3,000 Passwords / 300,000 Records; Face Recognition 0.2s at 99.9% Accuracy; TCP/IP + Wi-Fi (2.4 GHz); RS-485 / Wiegand / USB 2.0; ONVIF/CGI/SDK/API Compatible; Wi-Fi AP Mode; Easy Configuration via PC and Mobile Web Client; Supports Making Video Calls and Using App to Receive Alarm Notifications, Remotely Unlock Doors; Supports Customization of Voice Prompts; 128 Periods & 128 Holidays
Usage: Single Door Access Control Systems, Office & Commercial Building Entrances, Server Rooms, Data Centers, Retail Stores, Employee Time & Attendance Tracking, and Any Indoor Installation Requiring a Reliable Standalone Access Controller with Face, Card, and Password Verification, Wi-Fi Connectivity, and Attendance Management
