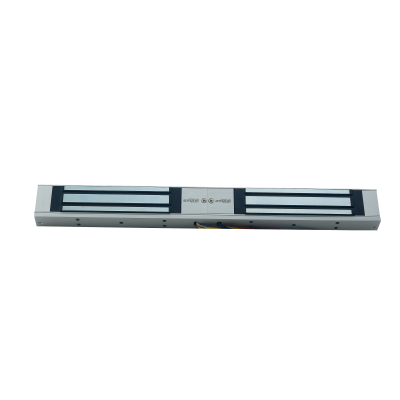

Device Type: Double Door Electromagnetic Lock (Magnetic Lock / Maglock)
Model / SKU: DHI-ASF180B-V1 (also listed as ASF180B-V1)
Brand: Dahua
Holding Force: 180 kg (396.83 lb) Tensile Force × 2 (Total 360 kg / 793.66 lb)
Door Type: Double Door (Two-Way)
Unlock Angle: 90°
Lock Status Indicator: LED Indicator Displays Lock Status
Door Status Detection: 1 × Relay (Door Detector Signal Feedback via 5-Wire)
Signal Output: COM / NO / NC
Fail-Safe Operation: Open While Power Off (Automatically Unlocks When Power is Cut)
Power Supply: 12 VDC, 370 mA × 2
Power Consumption: ≤9 W (Working)
Materials & Construction:- Casing Material: Aluminum Alloy
- Surface Treatment: Electroplating and Drawing
- Suction Plate Dimensions: 180 mm × 38 mm × 13 mm (7.09" × 1.50" × 0.51") (2 pcs)
- Embedded Reverse Current Protection: Yes
- Anti-Wear Materials: Built with Anti-Wear Materials for Extended Lifespan
- Anti-Residual Magnetism Design: Prevents Residual Magnetism After Power Off
Applicable Door Thickness: 5 cm – 15 cm (1.97" – 5.91")
Lifespan: 40,000 Operations (Aging Test Certified)
Physical:- Product Dimensions (Lock Body): 360 mm × 40 mm × 21.5 mm (14.17" × 1.57" × 0.85")
- Packaging Dimensions: 385 mm × 210 mm × 250 mm (15.16" × 8.27" × 9.84")
- Gross Weight: 2.3 kg (5.07 lb)
- Installation: Surface Mount
Environmental:- Operating Temperature: –20°C to +55°C (–4°F to +131°F)
- Operating Humidity: 5%–95% RH (Non-Condensing)
- Operating Environment: Indoor
Compatible Accessories (Sold Separately):- DHI-ASF180ZL-V1: ZL Mounting Bracket for ASF180B-V1
- DHI-ASF180L-V1: Door Frame Mounting Bracket for ASF180B-V1
- DHI-ASF180U-V1: Glass Door Mounting Bracket for ASF180B-V1 (Door Thickness 8–15 mm)
Key Features: Electromagnetic Force Operation (Free from Mechanical Failure); Automatically Unlocks When Power Off; Suitable for Wood, Glass, and Metal Doors; Compatible with All Dahua Access Control Devices and Other Mainstream Access Control Systems; 5-Wire Design for Door Detector Signal Feedback; Embedded Reverse Current Protection; Anti-Residual Magnetism Design; Double Door Configuration with Dual Suction Plates
Key Specs: Dahua DHI-ASF180B-V1 Double Door Magnetic Lock, 180kg (396.83 lb) × 2 Holding Force (Total 360kg), 12V DC 370mA × 2, ≤9W Power Consumption, Fail-Safe (Unlocks on Power Off), LED Lock Status Indicator, Door Status Detection (1 Relay, 5-Wire COM/NO/NC), Aluminum Alloy Construction with Electroplating & Drawing Finish, Anti-Residual Magnetism, Reverse Current Protection, 40,000 Operations Lifespan, 90° Unlock Angle, Surface Mount, Indoor Use, –20°C to +55°C Operating Temperature, 360×40×21.5mm, 2.3kg Gross Weight, Compatible with ASF180ZL/L/U Mounting Brackets (Sold Separately)
Usage: Double Door Access Control Systems, Office & Commercial Building Entrances, Server Rooms, Data Centers, Retail Stores, Residential Security Doors, Wood/Glass/Metal Door Applications, and Any Installation Requiring a Reliable Fail-Safe Electromagnetic Locking Solution for Double Doors
