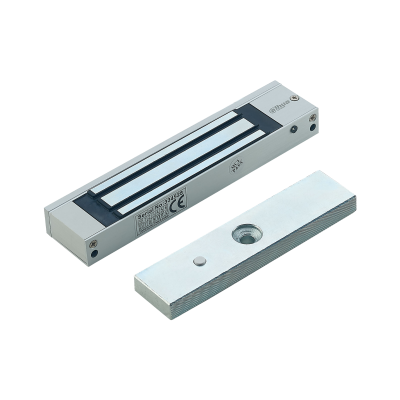

Device Type: Single Door Electromagnetic Lock (Magnetic Lock / Maglock)
Model / SKU: DHI-ASF180A-V1 (also listed as ASF180A-V1)
Brand: Dahua
Holding Force: 180 kg (396.83 lb) Tensile Force
Door Type: Single Door (One-Way)
Unlock Angle: 90°
Lock Status Indicator: LED Indicator Displays Lock Status
Door Status Detection: 1 × Relay (Door Detector Signal Feedback via 5-Wire)
Signal Output: COM / NO / NC
Fail-Safe Operation: Open While Power Off (Automatically Unlocks When Power is Cut)
Power Supply: 12 VDC, 370 mA
Power Consumption: ≤4.5 W (Working)
Materials & Construction:- Casing Material: Aluminum Alloy
- Surface Treatment: Electroplating and Drawing
- Suction Plate Dimensions: 140 mm × 33 mm × 13 mm (2 pcs)
- Anti-Residual Magnetism Design: Prevents Residual Magnetism After Power Off
- Embedded Reverse Current Protection: Yes
- Anti-Wear Materials: Built with Anti-Wear Materials for Extended Lifespan
Applicable Door Thickness: 5 cm – 15 cm (1.97" – 5.91")
Lifespan: 40,000 Operations (Aging Test Certified)
Physical:- Product Dimensions (Lock Body): 180 mm × 40 mm × 21.5 mm (7.09" × 1.57" × 0.85")
- Gross Weight: 1.2 kg (2.65 lb)
- Installation: Surface Mount
Environmental:- Operating Temperature: –20°C to +55°C (–4°F to +131°F)
- Operating Humidity: 5%–95% RH (Non-Condensing)
- Operating Environment: Indoor
Certifications: CE, FCC (Variant Dependent)
Compatible Accessories (Sold Separately):- DHI-ASF180ZL-V1: Mounting Bracket for ASF180A-V1
- DHI-ASF180L-V1: Door Frame Mounting Bracket for ASF180A-V1
- DHI-ASF180U-V1: Glass Door Mounting Bracket for ASF180A-V1 (Door Thickness 8–15 mm)
Key Features: Electromagnetic Force Operation (Free from Mechanical Failure); Automatically Unlocks When Power Off; Suitable for Wood, Glass, and Metal Doors; Compatible with All Dahua Access Control Devices and Other Mainstream Access Control Systems; 5-Wire Design for Door Detector Signal Feedback; Embedded Reverse Current Protection; Anti-Residual Magnetism Design
Key Specs: Dahua DHI-ASF180A-V1 Single Door Magnetic Lock, 180kg (396.83 lb) Holding Force, 12V DC 370mA, ≤4.5W Power Consumption, Fail-Safe (Unlocks on Power Off), LED Lock Status Indicator, Door Status Detection (1 Relay, 5-Wire COM/NO/NC), Aluminum Alloy Construction with Electroplating & Drawing Finish, Anti-Residual Magnetism, Reverse Current Protection, 40,000 Operations Lifespan, 90° Unlock Angle, Surface Mount, Indoor Use, –20°C to +55°C Operating Temperature, 180×40×21.5mm, 1.2kg Gross Weight, Compatible with ASF180ZL/L/U Mounting Brackets (Sold Separately)
Usage: Single Door Access Control Systems, Office & Commercial Building Entrances, Server Rooms, Data Centers, Retail Stores, Residential Security Doors, Wood/Glass/Metal Door Applications, and Any Installation Requiring a Reliable Fail-Safe Electromagnetic Locking Solution
