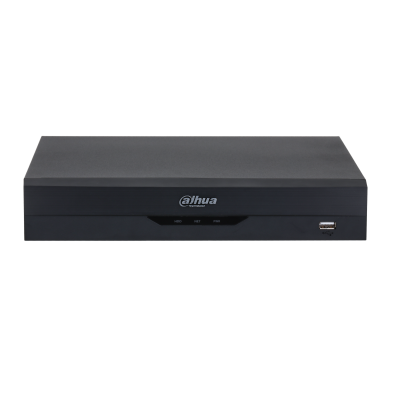

Device Type: 8-Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder (XVR)
Model / SKU: XVR5108HS-5M-I3 (also listed as DH-XVR5108HS-5M-I3; "/T" suffix denotes two-way talk variant)
Brand: Dahua
Series: 5MP Series / WizSense
Video Input (Penta-brid):- Analog Camera Input: 8 × BNC Ports — Supports HDCVI / AHD / TVI / CVBS auto-detect
- IP Camera Input: Up to 12 channels (4 IP channels by default + 8 channels when analog channels are converted to IP); each IP channel supports up to 6MP
- Max Analog Resolution: Up to 5MP (HDCVI/AHD/TVI)
- Max IP Resolution: Up to 6MP
- Incoming Bandwidth: 64 Mbps
Video Output: 1 × HDMI (up to 2560 × 1440) + 1 × VGA (up to 1920 × 1080); Multi-screen Display: 1/4/8/9 (16 when IP extension is enabled)
Encoding & Compression:- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Encoding Capacity (Encode Enhancement Disabled): Main Stream: Channels 1–2 support 5M-N @ 1–25 fps, others 5M-N @ 1–12 fps; Channels 1–2 support 4M-N/1080p @ 1–25/30 fps, others 4M-N/1080p @ 1–15 fps; 1080N/720p/960H/D1/CIF @ 1–25/30 fps
- Video Bit Rate: 32 kbps – 6144 kbps
- Dual-Stream: Yes
Two-Way Talk (Coaxial):- 8-Channel Two-Way Talk over Coaxial Cable — Allows seamless communication between the camera, client, and recorder
- Local & Network User Two-Way Talk: Shares the same audio input with the first channel
- Note: The "/T" suffix in the model code denotes the two-way talk feature. The base model XVR5108HS-5M-I3 may also support this functionality.
Audio:- Audio Input: 1-channel RCA + 8-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Audio Compression: G.711a; G.711u; PCM
- Audio Sampling: 8 kHz, 16 bit
- Audio Bit Rate: 64 kbps
Data Ports / Network:- Ethernet: 1 × RJ-45 (10/100 Mbps)
- USB: 2 (1 front USB 2.0, 1 rear USB 2.0)
- RS-485: 1 port
- Network Protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search
Storage: 1 × SATA Port, up to 16 TB per HDD
Backup Method: USB Device and Network
AI Functions (WizSense):- AcuPick / QuickPick 2.0: 2-channel for analog channels (improves target retrieval efficiency)
- Perimeter Protection: 4-channel for analog channels (supports tripwire and intrusion detection powered by AI)
- Face Recognition: 2-channel for analog channels; Up to 10 face databases with 10,000 images
- Face Detection: 2-channel (up to 8 face images/s each channel); 6 face attributes
- SMD Plus: 8-channel for analog channels (secondary filtering for human and vehicle)
- AI Coding: 8-channel — saves storage and bandwidth while maintaining target details
- AI Video Quality Analytics: 8 channels (detects brightness, color cast, defocus, overexposure, contrast, black and white)
- Scene Changing: 1 channel
- Irregular Black Block Masking: 1 channel
Power Supply: 12V DC, 2A
Power Consumption: <7 W (without HDD)
Physical:- Form Factor: Compact 1U
- Dimensions (W×D×H): 260.0 mm × 237.8 mm × 47.6 mm
- Net Weight: 0.97 kg (2.14 lb)
- Gross Weight: 1.39 kg (3.07 lb)
- Packaging Dimensions: 344.0 mm × 89.0 mm × 287.0 mm
Operating Conditions: –10°C to +55°C (+14°F to +131°F); Humidity 10%–90% (Non-Condensing)
Key Specs: Dahua XVR5108HS-5M-I3 8-Channel Penta-brid 5MP WizSense XVR, 8× BNC Analog Input (HDCVI/AHD/TVI/CVBS), Up to 12 IP Channels (6MP), 8-Channel Two-Way Talk over Coaxial Cable, 2-Channel AcuPick/QuickPick 2.0, 4-Channel Perimeter Protection, 2-Channel Face Recognition (10 Databases / 10,000 Images), 8-Channel SMD Plus, 8-Channel AI Coding, Smart H.265+/H.265, HDMI + VGA Output, 1 SATA up to 16TB, 64 Mbps Bandwidth, 12V DC, Compact 1U
Usage: Small to Medium Surveillance Systems, Residential Security, Retail Stores, Offices, Cashier Zones, and Any Installation Requiring Hybrid Analog/IP Recording with Advanced AI Analytics and Two-Way Audio Communication
