Video Input & Compatibility
- 4 Analog Channels: Supports up to 4 BNC analog cameras with auto-detection for HDCVI, AHD, TVI, and CVBS formats .
- Penta-brid Flexibility: Along with the 4 analog channels, it supports 1 IP channel by default, which can be expanded to 5 IP channels (by converting analog channels) .
- Resolution Support: Records analog channels at up to 1080N/720P, and IP channels at up to 2MP .
AI & Smart Features
- SMD Plus (4 Channels): Smart Motion Detection uses secondary filtering to differentiate between humans and vehicles, reducing false alarms from leaves, rain, or lighting changes .
- AI Coding: A compression technology that saves storage and bandwidth while preserving the details of targets (humans/vehicles) in videos .
- AI Search: Enables quick retrieval of footage by searching for specific target classifications (Human, Vehicle) .
Storage & Hardware
- Single HDD Bay: Features 1 SATA port supporting a hard drive up to 6TB (some listings mention up to 8TB, but the official spec sheet generally lists 6TB) .
- Compact Form Factor: A 1U chassis measuring 197.0 mm × 203.1 mm × 41.5 mm, suitable for desktop installation .

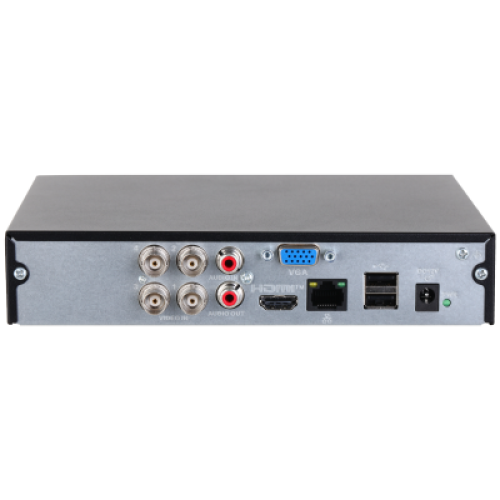

- Video Outputs: Includes 1 HDMI (up to 1920×1080) and 1 VGA port for monitor connections .
Audio & Connectivity
- Two-Way Talk: Supports 1-channel RCA audio input and output, with two-way talk functionality sharing the same audio interface .
- Network: Features a single 10/100 Mbps RJ-45 Ethernet port for remote access via the DMSS mobile app or Smart PSS software .
