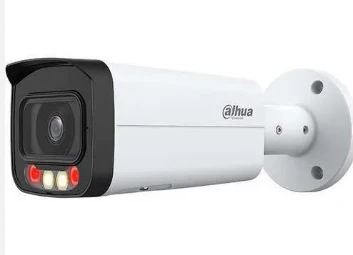

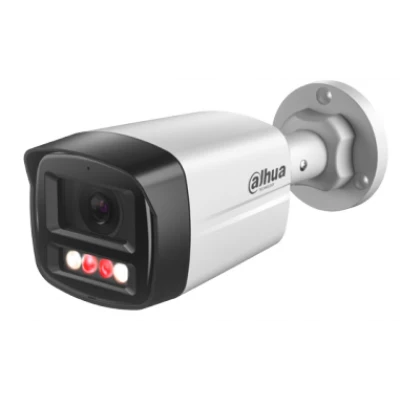

Device Type: 2MP Entry Series Smart Dual Light Active Deterrence Fixed-Focal Bullet Network Camera
Model / SKU: DH-IPC-HFW1239TL1-PV-0360B-S6 (also listed as IPC-HFW1239TL1-PV-0360B; the “-0360B” suffix denotes the 3.6 mm lens variant)
Brand: Dahua
Series: Entry Series / Smart Dual Light
Form Factor: Bullet
Image Sensor: 1/2.8" 2-Megapixel Progressive Scan CMOS
Max. Resolution: 1920 × 1080 (2MP / 1080p) @ 25/30 fps
Min. Illumination: 0.005 Lux @ F1.6 (Color, 30 IRE); 0.0005 Lux @ F1.6 (B/W, 30 IRE); 0 Lux with Illuminator On
S/N Ratio: >56 dB
Lens: Fixed-Focal, 3.6 mm; Max. Aperture F1.6; M12 Mount; Iris Control Fixed
Field of View (3.6 mm): Horizontal 86° / Vertical 46° / Diagonal 103°
Close Focus Distance (3.6 mm): 1.1 m (3.61 ft)
DORI Distance (3.6 mm): Detect 53.8 m / Observe 21.5 m / Recognize 10.8 m / Identify 5.4 m
Illumination: Built-in IR LED (2 LEDs) + Warm Light LED (2 LEDs); Max. IR Distance 30 m; Max. Warm Light Distance 30 m; Auto/Manual Control
Angle Adjustment: Pan 0°–360° / Tilt 0°–90° / Rotation 0°–360°
Video Output: Network Streaming Only (No Analog Video Output)
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Sub Stream Only)
Smart Codec: Smart H.265+ / Smart H.264+
Frame Rate: Main Stream: 1920 × 1080 @ 1–25/30 fps; Sub Stream: 704 × 576 @ 1–25 fps / 704 × 480 @ 1–30 fps
Stream Capability: 2 Streams
Bit Rate: H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps
WDR: DWDR (Digital WDR)
Noise Reduction: 3D NR
Image Enhancements: HLC, BLC, Digital Watermarking, ROI, Rotation Mode
Data Ports: 1 × RJ-45 (10/100 Base-T Ethernet)
Network Protocols: IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP, P2P, Auto Registration
Storage: No Micro SD Card Slot (Not Supported)
Audio: Built-in Microphone and Speaker; Two-Way Talk Supported
Smart Features (Entry Series):- Human Detection: Supports classification and accurate detection of human
- Smart Search: Works with Smart NVR for refined intelligent search, event extraction, and merging to event videos
- Abnormality Detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict, illegal access
- Active Deterrence: Sound and Light Alarm (Siren + Warning Light)
- One-Tap Arming/Disarming Supported
Power Supply: 12V DC / PoE (802.3af)
Power Consumption: Approx. 11.5 W
Operating Conditions: -40°C to +60°C; Humidity <95% RH (Non-Condensing)
Protection: IP67 Weatherproof
Casing Material: Plastic + Metal
Dimensions: 197.9 mm × 80.2 mm × 76.2 mm
Net Weight: 350 g
Key Specs: Dahua DH-IPC-HFW1239TL1-PV-0360B-S6 2MP Entry Series Smart Dual Light Bullet Camera, 1/2.8" 2MP CMOS, 1920×1080 @ 25/30fps, 3.6mm Fixed Lens (F1.6), 30m IR + 30m Warm Light Illumination, DWDR, 3D NR, H.265/Smart H.265+, Dual-Stream, ROI, Human Detection, Built-in Microphone & Speaker, Two-Way Talk, Active Deterrence (Siren + Warning Light), One-Tap Arming/Disarming, PoE (802.3af) / 12V DC, IP67 Weatherproof, Plastic + Metal Housing
Usage: Outdoor & Indoor Surveillance, Residential Security, Small to Medium Business Monitoring, Retail Stores, Parking Lots, Driveways, and Any Installation Requiring an Entry-Level Camera with Smart Dual Light Night Vision, Active Deterrence, and Two-Way Audio
