KSh 51,730(KSh 60,007 Incl VAT)

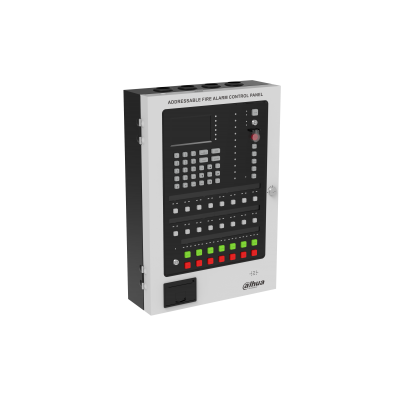

Device Type: Addressable Fire Alarm Control Panel with Printer
Model / Part Number: Dahua DHI-HY-1025
Working Voltage: DC 12V~48V -1
Main Power: AC90-240V / 50Hz, 60Hz -1
Backup Power: 2 × 12V/5Ah Lead-Acid Batteries -1
System Capacity: Maximum 508 Field Devices -1
Loop Number: 2 Loops -1
Loop Capability: Max. 254 Sensors and Modules per Loop -3-4
Topology Mode: Class B for DHI-HY-1025 -3-4
Display: 480 × 272 4.3" LCD Screen -1
Communication Mode: Two Bus Line (Two-Wire, Polarity-Free) -1
Communication Distance: 1500m Standard (3000m Extendable) -4
Log Record: Max. 9,999 Historical Records -4
Printer: Micro Thermal Printer (Built-in) -1
Networking: RS485, Ethernet, 4G -4
Protection Grade: IP30 -1
Operating Temperature: –10°C to +40°C -1
Operating Humidity: ≤ 95% RH (Non-Condensing) -1
Dimensions: 333.0 mm × 115.0 mm × 480.0 mm -1
Weight: 7 kg (10 kg with Batteries) -1
Compliance Standard: EN54-2, EN54-4 -1
Key Specs: Dahua DHI-HY-1025, Addressable Fire Alarm Control Panel, 2 Loops, 508 Devices, 4.3" LCD, Two-Wire Polarity-Free, Built-in Thermal Printer, EN54-2/4 Certified
Usage: Residential Complexes, Hotels, Shopping Malls, Healthcare Facilities, Office Buildings, Schools, Banks, Libraries, Factories, Warehouses -14
