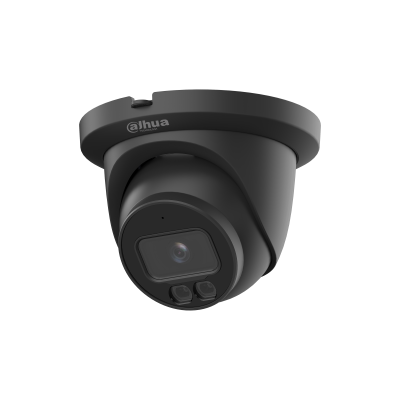

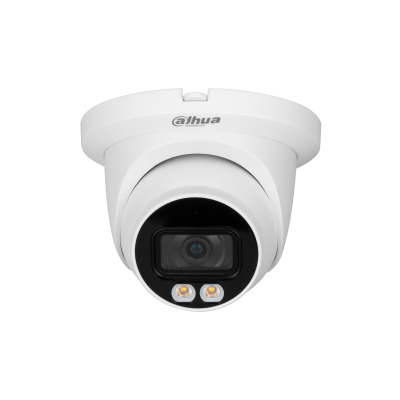

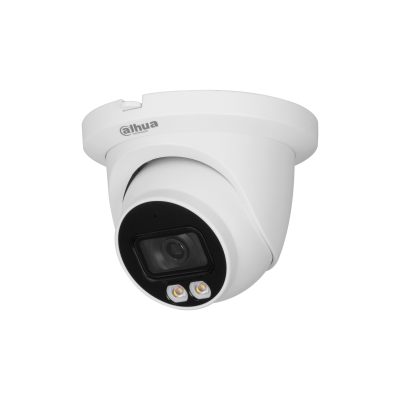

Device Type: 5MP Full-color Fixed-focal Warm LED Eyeball (Turret) WizSense Network Camera
Model / SKU: DH-IPC-HDW3549TMP-AS-LED (official base model: IPC-HDW3549TM-AS-LED; lens variants: -0280B for 2.8mm, -0360B for 3.6mm)
Brand: Dahua
Series: WizSense 3 Series / Full-color
Form Factor: Eyeball (Turret) — Note: The product name you provided says "DOME," but the "HDW" prefix denotes an eyeball/turret form factor, not a dome.
Image Sensor: 1/2.7" 5-Megapixel Progressive Scan CMOS
Max. Resolution: 2592 × 1944 (5MP) @ 20 fps; 2688 × 1520 (4MP) @ 25/30 fps
Min. Illumination: 0.003 Lux @ F1.0 (Color)
S/N Ratio: >56 dB
Electronic Shutter: Auto/Manual, 1/3 s–1/100,000 s
Lens: Fixed-Focal, 2.8 mm / 3.6 mm; Max. Aperture F1.0; M12 Mount
Field of View (2.8 mm): Horizontal 98° / Vertical 71° / Diagonal 129°
Field of View (3.6 mm): Horizontal 77° / Vertical 56° / Diagonal 101°
Close Focus Distance: 1.2 m (2.8 mm) / 2.4 m (3.6 mm)
DORI Distance (2.8 mm): Detect 56 m / Observe 22.4 m / Recognize 11.2 m / Identify 5.6 m
DORI Distance (3.6 mm): Detect 80 m / Observe 32 m / Recognize 16 m / Identify 8 m
Illumination: Built-in Warm Light LEDs (2 LEDs); Max. Illumination Distance 30 m; Auto/Manual Control
Pan/Tilt/Rotation: Pan 0°–360° / Tilt 0°–78° / Rotation 0°–360°
Video Output: Network Streaming Only (No Analog Video Output)
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Sub Stream Only)
Smart Codec: Smart H.265+ / Smart H.264+
Frame Rate: Main Stream: 2592 × 1944 @ 1–20 fps / 2688 × 1520 @ 1–25/30 fps; Sub Stream: 704 × 576 @ 1–25 fps; Third Stream: 1280 × 720 @ 1–25/30 fps
Stream Capability: 3 Streams
WDR: 120 dB
Noise Reduction: 3D DNR
Image Enhancements: Day/Night (ICR), BLC, HLC, ROI (4 Areas), Rotation Mode (0°/90°/180°/270°), Mirror, Privacy Masking (4 Areas), Digital Watermarking, Smart Illumination
Data Ports: 1 × RJ-45 (10/100 Base-T Ethernet)
Network Protocols: ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, Multicast, NFS, NTP, PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SAMBA, SFTP, SMTP, SNMP, TCP, UDP, UPnP, 802.1X
Interoperability: ONVIF (Profile S/G/T), CGI, P2P, Milestone
Storage: Micro SD Card (Max. 256 GB, Card Not Included)
Audio: Built-in Microphone; Audio Compression: G.711a, G.711Mu, G.726, AAC
Alarm: No Alarm I/O
Smart Features (WizSense):- Perimeter Protection: Tripwire, Intrusion (with classification and accurate detection of vehicle and human)
- Intelligent Search: Works with Smart NVR for refined intelligent search, event extraction, and merging to event videos
- SMD Plus: Smart Motion Detection Plus
- Abnormality Detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full/error, network disconnection, IP conflict, illegal access, voltage detection
Power Supply: 12V DC / PoE (802.3af)
Power Consumption: Not Specified in Available Sources
Operating Conditions: -40°C to +60°C; Humidity <95% RH
Protection: IP67 Weatherproof; Wide Voltage (±30% Input Voltage Tolerance)
Casing Material: Metal
Dimensions: Not Specified in Available Sources
Net Weight: Not Specified in Available Sources
Key Specs: Dahua DH-IPC-HDW3549TMP-AS-LED 5MP Full-color WizSense Eyeball Camera, 1/2.7" 5MP CMOS, 2592×1944 @ 20fps, 2.8mm/3.6mm Fixed Lens (F1.0), 30m Warm Light Illumination, 120dB WDR, 3D DNR, H.265/Smart H.265+/H.264+, Triple-Stream, ROI (4 Areas), Perimeter Protection (Tripwire/Intrusion with Human & Vehicle Classification), SMD Plus, Built-in Microphone, MicroSD up to 256GB, PoE (802.3af) / 12V DC, IP67 Weatherproof, Metal Housing, ONVIF
Usage: Outdoor & Indoor Surveillance, Residential Security, Small to Medium Business Monitoring, Retail Stores, Parking Lots, Driveways, and Any Installation Requiring Full-Color Night Vision with AI-Powered Perimeter Protection and Built-in Audio
