KSh 5,430(KSh 6,299 Incl VAT)

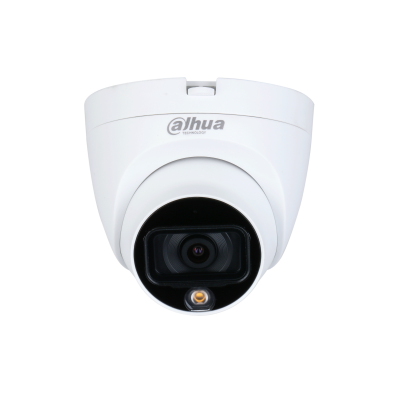

Device Type: 5MP Full-Color HDCVI Quick-to-Install Eyeball Camera (Lite Series)
Model / SKU: DH-HAC-HDW1509TLQP-A-LED (also listed as HAC-HDW1509TLQP(-A)-LED-S2)
Brand: Dahua
Image Sensor: 1/2.7" 5-Megapixel CMOS (Full-color Starlight)
Max. Resolution: 2880 × 1620 (5MP, 16:9)
Min. Illumination: 0.001 Lux @ F1.0 (Color Mode); 0 Lux with Warm Light On
S/N Ratio: >65 dB
Lens: Fixed-Focal, 3.6 mm (Standard) / 2.8 mm (Optional); Max. Aperture F1.0; M12 Mount
Field of View (3.6 mm): Horizontal 88° / Vertical 46° / Diagonal 104°
Field of View (2.8 mm): Horizontal 112° / Vertical 57° / Diagonal 132°
Close Focus Distance: 2.3 m (3.6 mm) / 1.6 m (2.8 mm)
Illumination: 1 × Warm Light LED; Max. Illumination Distance up to 20 m; Auto/Manual Control
Video Output: Switchable HDCVI / TVI / AHD / CVBS over a single coaxial cable. Important: The camera is not an IP/network camera — it transmits analog HD video over coax and does not have an RJ45 Ethernet port.
Video Resolution Modes: 5M (2880×1620), 4M (2560×1440), 1080p (1920×1080), 960H (960×576)
Frame Rate: 25 fps @ 5MP, 4M, 1080p (HDCVI); 25 fps @ 4M (AHD/TVI); 25 fps @ 960H (CVBS)
Image Enhancement: 120 dB True WDR, 3D DNR, BLC, HLC, HLC-Pro, Smart Light, Mirror, Privacy Masking (8 Zones)
Audio: Built-in Microphone (Model "-A" suffix denotes audio); Broadcast-Quality Audio over Coaxial Cable
Data Ports: No network ports. Video, audio, data, and power are transmitted simultaneously over 1 coaxial cable (HDCVI technology).
Power Supply: 12V DC ±30% (500 mA); PoC (Power over Coax) Supported for Construction Flexibility
Power Consumption: Max. 5.5 W
Protection: IP67 Weatherproof (Dust-Proof and Able to Withstand 1m Water Submersion for 30 Minutes)
Casing Material: Metal + Plastic
Dimensions: 97.1 mm × 94.2 mm (Φ)
Net Weight: Approx. 0.5 kg
Operating Conditions: -40°C to +60°C (-40°F to +140°F); Humidity <95% RH
Certifications: CE (EN55032, EN55024, EN50130-4, EN60950-1); FCC (CFR 47 FCC Part 15 Subpart B); UL (UL60950-1)
Key Features: Full-Color 24/7 Imaging (Warm Light LED Enables Color Video in Total Darkness); 120 dB True WDR for High-Contrast Scenes; 3D DNR for Effective Noise Reduction with Minimal Sharpness Impact; Super Adapt Intelligent Algorithm for Auto Parameter Adjustment; Broadcast-Quality Audio via Coaxial Cable; 4 Signals (Video, Audio, Data, Power) Over 1 Coaxial Cable; Quick-to-Install Eyeball Design Saves Installation Time; HDCVI/TVI/AHD/CVBS Switchable Output; IP67 Weatherproof
Key Specs: Dahua DH-HAC-HDW1509TLQP-A-LED 5MP Full-Color HDCVI Eyeball Camera, 1/2.7" 5MP CMOS, 2880×1620 @ 25fps, 3.6mm Fixed Lens (F1.0), 20m Warm Light Illumination, 120dB True WDR, 3D DNR, Built-in Microphone, HDCVI/TVI/AHD/CVBS Switchable Output, 4-in-1 Signal over Coax, IP67, 12V DC / PoC, Metal + Plastic Housing, 97.1×94.2mm
Usage: Residential & Small-to-Medium Business Surveillance, Indoor & Outdoor Monitoring, Low-Light/24/7 Color Surveillance, Parking Lots, Driveways, Retail Entrances, and Any Installation Using Existing Coaxial Cable Infrastructure
