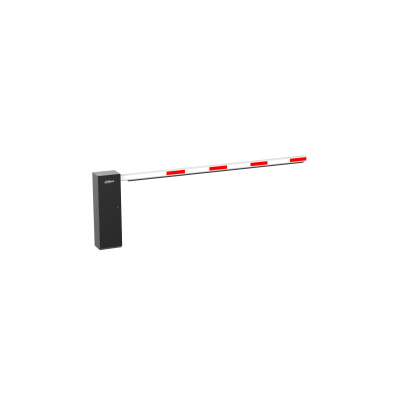

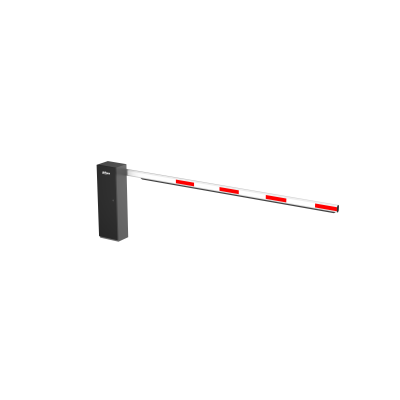

Device Type: Telescopic Straight Arm Barrier Gate (Bidirectional, Springless, High-Flow)
Model / SKU: DHI-IPMECD-1062-L (official base model: IPMECD-1062; the -L suffix denotes the left-side configuration)
Brand: Dahua
Arm Type: Telescopic Straight Arm (Springless Design)
Arm Length: Adjustable 2.7 m – 4.5 m (8.86 ft – 14.76 ft)
Arm Model Compatibility: IPMECD-0162-M30, IPMECD-0162-M40, IPMECD-0162-M2745
Opening/Closing Time: 2 – 6 seconds (speed depends on arm length and weight)
Motor: 24 VDC Brushless DC Motor (Quiet, Low Power Consumption, Stable, and Efficient)
Rotational Speed: 2000 RPM
Transmission Ratio: 150:1
Motor Lifespan: 3.5 Million Operations
Directional Configuration: Left and Right Interchangeable (Right by Default); Supports Quick Switching Between Directions
Anti-Smashing & Safety Functions:- Supports External Radar, Loop (Inductive Coil), and IR Anti-Smashing Functions
- Auto-Lifting Against Obstruction: Barrier Arm Automatically Rises When It Makes Contact with an Object
- Anti-Drop Function: Yes
- Manual Hand Crank Control in Power Failure: Yes — Supports Manually Rising the Barrier After a Power Failure
- Built-in 12 VDC Output: For Powering External Radar (12 V ± 5%, Max 1 A)
Speed & Position Control: The Speed and Position at Which the Barrier Rises and Falls Is Adjustable
Remote Control:- Supports Remote Control at a Maximum Distance of 50 m (164 ft) in Open Space
- Included: 2 Remote Controls; Supports Up to 40 Pairable Remote Controllers
Communication & Monitoring:- RS-485 Port: 1 Channel — Allows Connection to a Camera; Barrier Status (Operation Count, Operating Status, Operation Log) Can Be Read on the Camera's Web Interface
- I/O: 1 Channel
- Status Output: 2 Channels (One Fully Open, One Fully Closed)
- Sub-1G Wireless: Frequency Range 433.82 MHz – 434.02 MHz; Modulation Type ASK
Count Mode: Yes — Supports Operation Counting
Power Supply: 100–264 VAC (Full-Voltage)
Power Consumption: < 210 W
Protection: IP54 (Dust and Water Splash Resistant)
Anti-Corrosion Level: Basic Protection
Environmental:- Operating Temperature: –30 °C to +65 °C (–22 °F to +149 °F)
- Storage Temperature: –30 °C to +65 °C (–22 °F to +149 °F)
- Operating Humidity: 10%–90% RH (Non-Condensing)
- Storage Humidity: 10%–90% RH (Non-Condensing)
Physical:- Product Dimensions (L × W × H): 285.0 mm × 200.0 mm × 940.0 mm (11.22" × 7.87" × 37.01")
- Packaging Dimensions: 1,020.0 mm × 320.0 mm × 385.0 mm (40.16" × 12.60" × 15.16")
- Net Weight: 24.6 kg (54.21 lb) — Without Barrier Arm
- Gross Weight: 30.0 kg (66.14 lb)
- Installation: Bottom-Mounted with Expansion Bolts
Key Specs: Dahua DHI-IPMECD-1062-L Telescopic Straight Arm Barrier, 2.7–4.5m Adjustable Arm, 24VDC Brushless Motor (2000 RPM), 2–6 Second Opening/Closing, 3.5 Million Operations Lifespan, Springless Design, Left/Right Interchangeable, Auto-Lifting Against Obstruction, Manual Hand Crank in Power Failure, 50m Remote Control Range (2 Remotes Included), RS-485 Communication, IP54 Protection, 100–264 VAC, <210W Power Consumption, –30°C to +65°C Operating Temperature, 285×200×940mm, 24.6kg (Without Arm)
Usage: Vehicle Access Control, Parking Facilities, Toll Gates, Residential & Commercial Entrances, Industrial Sites, High-Flow Traffic Zones, and Any Installation Requiring a Reliable, High-Speed Telescopic Barrier Arm with Safety Protection and Remote Monitoring Capabilities
