The DGS-F1010P-E is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices
Here are the
detailed specifications for the

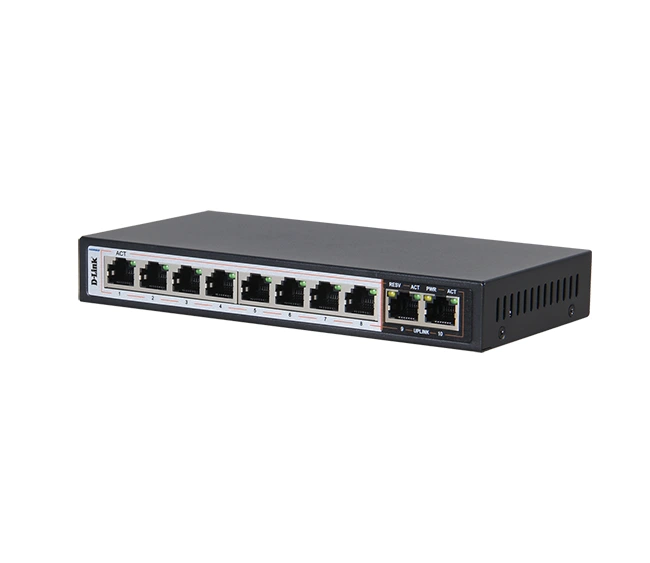

D-Link DGS-F1010P-E 10-Port Gigabit PoE+ Switch:
🔌 Ports & Interfaces
- 8 × 10/100/1000 Mbps PoE+ Ports (Ports 1–8)
- 2 × 10/100/1000 Mbps Uplink Ports (Ports 9–10)
- Auto MDI/MDI-X Support on all ports
- PoE Standards: IEEE 802.3af/at
- PoE Power Budget: Up to 120W total, with a maximum of 30W per port
⚙️ Performance & Switching
- Switching Capacity: 20 Gbps
- Forwarding Rate:
- 10 Mbps: 14,800 pps
- 100 Mbps: 148,800 pps
- 1000 Mbps: 1,488,000 pps
- Transmission Method: Store-and-Forward
- Flow Control: IEEE 802.3x (Full Duplex)
- MAC Address Table: 8K entries
- Packet Buffer Memory: 1.25 Mbits
🧠 Smart DIP Switch Modes

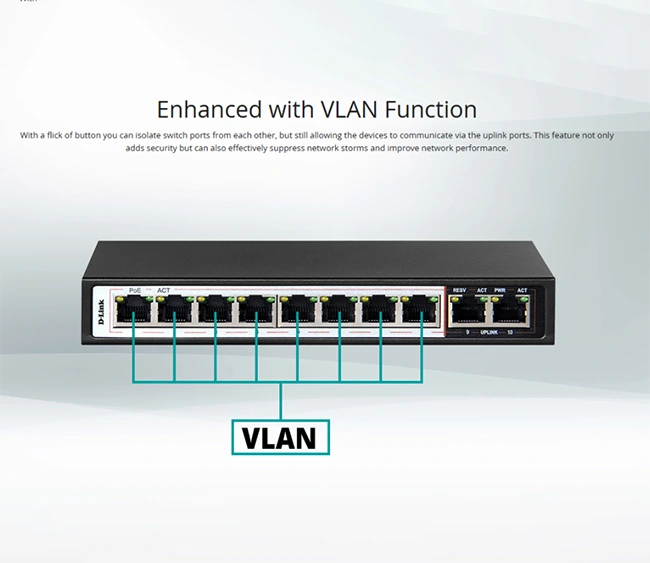

- VLAN Mode: Isolates ports 1–8 to prevent broadcast storms and enhance security
- Extend Mode: Supports PoE/data transmission up to 250 meters at 10 Mbps
- QoS Mode: Prioritizes video traffic for smoother streaming
- PoE Reset: Automatically detects and restarts unresponsive PoE devices
⚡ Power & Protection
- Total PoE Budget: 120W
- Surge Protection: 6kV on all ports
- PoE Pin Assignment: 1/2 (+), 3/6 (–)
📐 Physical & Environmental
- Dimensions: 184 × 94 × 27 mm
- Weight: 1.05 kg
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
- Storage Temperature: -10°C to 70°C (14°F to 158°F)
- Operating Humidity: 10% to 90% RH (non-condensing)
- Storage Humidity: 5% to 90% RH (non-condensing)
- Certifications: CE Class B, FCC Part 15 Class B, VCCI Class B, C-Tick
