Here are the
detailed specifications for the

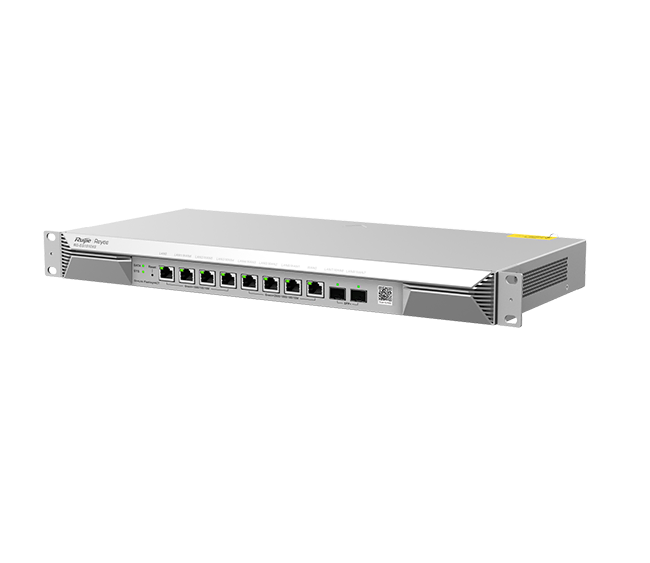

RG‑EG1510XS, Ruijie’s flagship rack-mount business router capable of handling up to
1,500 concurrent clients:
⚙️ Hardware & Performance
- CPU: Quad-core 1.8 GHz
- Memory/Storage: 4 GB DDR, 128 MB NAND + 8 GB eMMC flash
- Syslog Storage: Optional 2.5″ SATA HDD bay (up to 1 TB) for ~4–5 months of logs
- Throughput:
- 4 Gbps (1518-byte NAT + flow audit)
- 3 Gbps with NAT + authentication, DPI, flow audit/control
🌐 Interfaces
- Fixed Ports:
- 1× 2.5 G WAN (10/100/1000/2500 Mbps)
- 1× 1 G LAN
- Switchable Ports:
- SFP+ Slots:
- 2× 1 G/10 G Base-X (one supports 2.5 G)
👥 Capacity & Networking
- Concurrent Clients: Recommended up to 1,500
- VPN:
- Supports IPsec, L2TP, PPTP, OpenVPN
- Tunnels: up to 1,000
- Throughput: ~900 Mbps (IPsec), ~1.4 Gbps (L2TP/PPTP), 400 Mbps (OpenVPN)
- Multi‑WAN: Up to 4× WAN (RJ45) plus SFP+ for load balance and failover
- VLAN: Supports up to 128 VLANs; PPPoE server up to 1,000 clients
🔐 Security & Management
- L7 DPI/App/URL Filtering: 300+ apps
- Firewall & BoD: ACLs (time/IP-based), session limiting, anti-flood/DoS, ARP binding, IP-MAC binding, MAC filter
- Authentication: RADIUS (client/proxy), captive portal (cloud/local) with SMS, QR, voucher, and third-party WiFiDog & WISPr integration
- Routing Protocols: Static, PPPoE client/server, RIP/RIPng, PBR, OSPF v2/v3; DHCP, DNS, NTP, DDNS supported
- Traffic Control: Smart flow/QoS, bandwidth policies by user, app, VLAN, tunnel, plus real-time auditing
☁️ Cloud & Device Management
- Management Modes: Router or AC
- Device Support: Controls up to 1,000 APs/NBS and 128 ES switches
- Integration: Open API and third-party authentication
- GUI & Management Tools: Web GUI (eWEB), Ruijie Cloud, Reyee mobile app
🛠️ Physical & Power

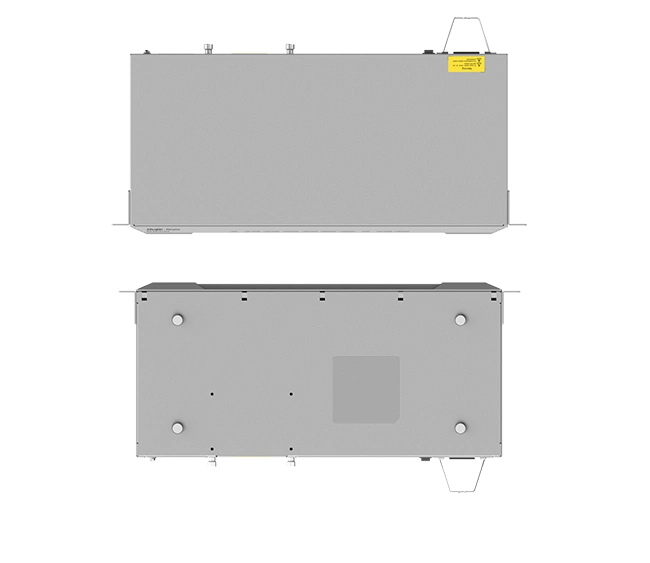

- Dimensions: 440 × 210 × 43.6 mm (1U rack); weight ~3 kg
- Power: Internal PSU 100–240 V AC; < 20 W consumption
- Cooling & Reliability: Fanless, surge protection, MTBF > 400k hours
- Operating Conditions: 0–40 °C; certifications: CE, RoHS
📦 Package & Warranty
- Includes rack brackets, footpads, power cord, user manual, warranty card
- Warranty: 3 years
✅ Summary Table
| Feature |
Details |
| CPU & Memory |
Quad-core 1.8GHz, 4GB RAM, 128MB + 8GB flash |
| Throughput |
4 Gbps NAT; 3 Gbps full services |
| VPN Capability |
1,000 tunnels; IPsec 900 Mbps; L2TP/PPTP 1.4 Gbps |
| Ports |
1×2.5G WAN, 1×1G LAN, 3× LAN/WAN, 2× SFP+ (10G/1G) |
| Concurrency |
1,500 clients |
| VLAN, PPPoE server |
128 VLANs, 1,000 PPPoE |
| Security & QoS |
Full-featured firewall, DPI, flow control |
| Management |
Controls 1000 APs +128 switches |
| Power & Form Factor |
< 20 W, passive, rack-mountable |
| Warranty |
3 years |
