KSh 322,030(KSh 373,555 Incl VAT)

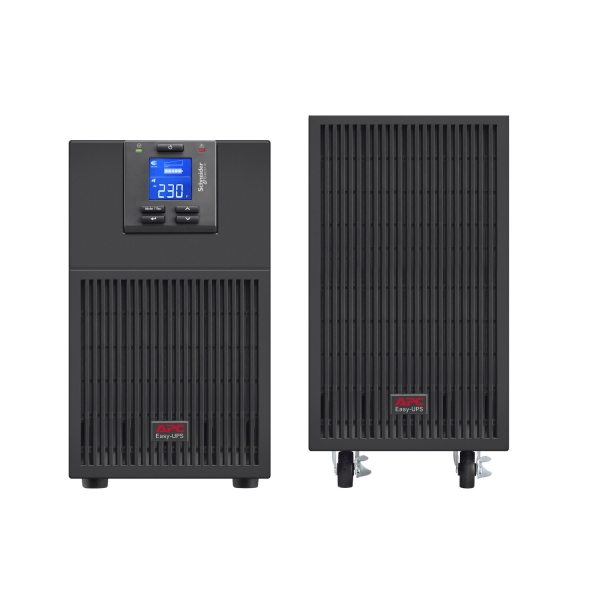

Device Type: Online Double-Conversion Tower UPS (Uninterruptible Power Supply)
Part Number/SKU: SRV10KI
Brand: APC by Schneider Electric (Easy UPS On-Line SRV Series)
Capacity: 10000 VA / 10000 W (Unity Power Factor)
Topology: Double-Conversion Online (True Online)
Input Voltage: 230 V AC, 1 Phase (Configurable for 220 V / 240 V)
Input Voltage Range: 110–300 V (at 60% load); 176–300 V (at full load)
Input Frequency: 40–70 Hz Auto-Sensing
Output Voltage: 230 V AC, 1 Phase (Selectable 220 V / 230 V / 240 V)
Output Frequency: 50/60 Hz ±3 Hz (Sync to Mains)
Output Waveform: Pure Sine Wave
Efficiency: 94% at Full Load
Harmonic Distortion: 1%
Crest Factor: 3:1
Output Connection: Hard Wire 3-Wire (1P + N + E)
Bypass: Internal Automatic & Manual Bypass
Battery Type: Sealed Lead-Acid, Maintenance-Free (Internal)
Battery Voltage: 192 V
Battery Recharge Time: 5 Hours
Battery Life: 3–5 Years
Battery Charger Power: 235 W Rated
Display: Multifunction LCD Status & Control Console
Communication Ports: USB, RS-232 Serial, 1× Intelligent Expansion Slot (for SNMP Card)
Special Features: Emergency Power Off (EPO), ECO Mode, Generator Compatible, Configurable Output Voltage, Cold Start
Alarms: On Battery, Low Battery, Overload Continuous Tone
Surge Energy Rating: 600 Joules
Form Factor: Tower (Not Rack-Mountable)
Dimensions (H×W×D): 685 × 190 × 447 mm
Net Weight: 65 kg
Color: Black (RAL 7010)
Operating Temperature: 0°C to 40°C
Storage Temperature: –15°C to 60°C
Humidity: 0–95% Non-Condensing
Protection Rating: IP20
Acoustic Level: 58 dB
Compliance: CE, UKCA, EAC, TISI; EN/IEC 62040-1, EN/IEC 62040-2
Warranty: 2 Years
Key Specs: APC Easy UPS SRV10KI, 10000VA/10000W Online Double-Conversion, 230V, Pure Sine Wave, 94% Efficiency, Internal Sealed Lead-Acid Battery (192V), 5-Hour Recharge, Hard Wire Output, LCD Display, USB/RS-232, SNMP Slot, EPO, ECO Mode, Generator Compatible, Tower Form Factor, 65 kg
Usage: Small to Medium Data Centers, Enterprise Servers & Storage, Networking Infrastructure, Telecommunications Equipment, Industrial Control Systems, Healthcare Equipment, Mission-Critical Business Applications
