Smart-UPS (SMT/SMX/SRTL Series)
This is the business-grade line, available in tower or rack-mountable form factors, with either lead-acid or lithium-ion batteries.
- Power Rating: 2200 VA / 1980 W (for most 230V line-interactive models) .
- Topology: Line-interactive with Automatic Voltage Regulation (AVR) and pure sine wave output . On-line double-conversion models (SRTL series) provide zero transfer time for critical equipment .
- Outlets: Typically 8x IEC C13 + 2x IEC C19 for 230V tower/rack models . 120V models use NEMA outlets .
- Display: LCD screen showing load, battery, and status information .
- Management: SmartConnect Ethernet port for cloud-based remote monitoring, plus a SmartSlot for optional network management cards .
- Battery: Lead-acid (3-5 year life) or lithium-ion (longer lifespan, no replacement needed during UPS life on some models) .
- Runtime: Approximately 7 minutes 32 seconds at full load (1920W) on some 120V models .

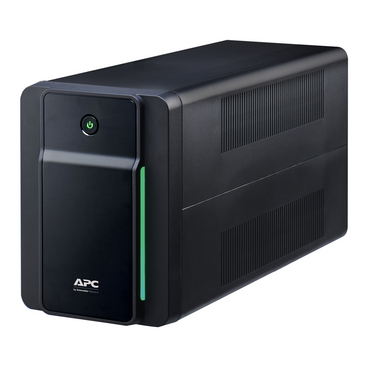

Back-UPS (BX Series)
This is the standard, entry-level line for home and small office use.
- Power Rating: 2200 VA / 1200 W .
- Topology: Off-line/standby with AVR and stepped approximation to a sine wave output .
- Outlets: 6x IEC C13 (or region-specific outlets) .
- Display: LED status indicators (no LCD) .
- Features: Data line protection, audible alarms, and battery failure notification .
- Battery: Lead-acid, typical recharge time of 8 hours, expected life of 2-3 years .
Easy UPS (BVX Series)
A budget-focused line for basic protection.
- Power Rating: 2200 VA / 1200 W .
- Topology: Line-interactive with AVR and stepped approximation to a sine wave output .
- Outlets: 6x IEC C19 outlets .
- Features: Cold-start capable, audible alarms, and LED indicators .
- Battery: Lead-acid, typical recharge time of 8 hours .
