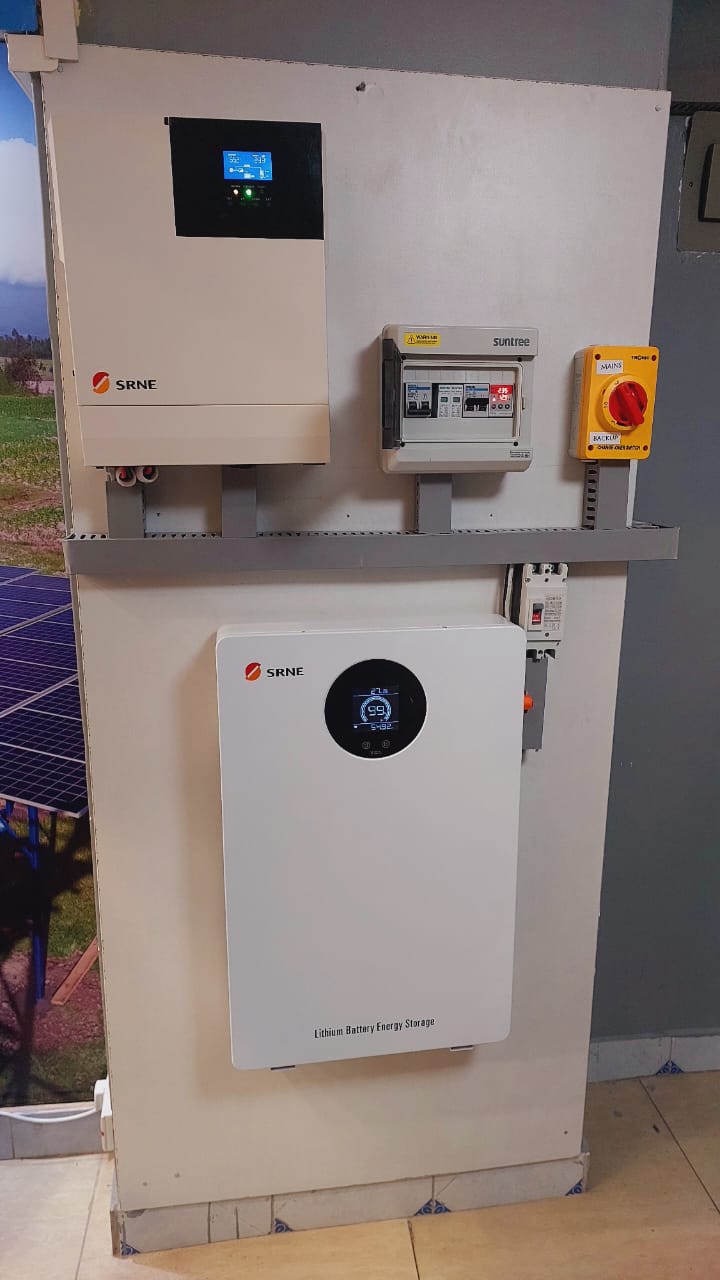

Device Type: All-in-One Off-Grid / Hybrid Solar Inverter with Built-In MPPT Solar Charge Controller
Part Number/SKU: HFP4850S80-H (SR-HFP4850S80-H)
Brand: SRNE (HFP Series)
Rated Output Power: 5,000 W
Max Peak Power: 10,000 VA
Output Waveform: Pure Sine Wave (SPWM Modulation)
Rated Output Voltage: 230 Vac (L/N/PE, Single Phase), ±5%
Rated AC Frequency: 50 Hz / 60 Hz (Auto-Detection)
Load Motor Capacity: 4 HP
Battery System:- Rated Battery Voltage: 48 Vdc (Minimum Startup Voltage: 44V)
- Battery Voltage Range: 40–60 Vdc ±0.6 Vdc
- Battery Types Supported: Sealed, Flooded, GEL, AGM, LFP (Lithium Iron Phosphate), Ternary (Li-ion), User-Defined
- Max Hybrid Charging Current: 80 A
- Max Mains/Generator Charging Current: 60 A
Solar Input (Built-In MPPT):- Number of MPPT Trackers: 1
- Max PV Array Power: 5,500 W
- Max PV Open-Circuit Voltage: 500 Vdc
- PV Working Voltage Range: 120–500 Vdc
- MPPT Voltage Range: 120–450 Vdc
- Max PV Input Current: 22 A
- Max PV Charging Current: 80 A
- MPPT Tracking Efficiency: Up to 99.9%
AC Input (Grid/Generator):- Rated Input Voltage: 220/230 Vac
- Input Voltage Range (UPS Mode): 170–280 Vac ±2%
- Input Voltage Range (APL Generator Mode): 90–280 Vac ±2%
- Frequency Range: 50/60 Hz (Auto-Detection)
- Mains Charging Efficiency: >95%
- Switch Time (Bypass to Inverter): 10 ms (Typical)
Efficiency:- Max Efficiency: 97.5%
- Max Battery Inverter Efficiency: 92%
Parallel Capability: Up to 6 Units (Supports Single-Phase, Split-Phase, and Three-Phase Configurations)
Communication & Interfaces:- Embedded: RS485, CAN, USB, Dry Contact
- Optional Modules: Wi-Fi, GPRS
- BMS Communication: RS485/CAN (for Lithium Battery Management Systems)
Protection Features: Short Circuit Protection, Overload Protection, Reverse Polarity Protection, Under-Voltage & Over-Voltage Protection, Over-Temperature Protection, Back-Filling Protection
Special Features:- Uninterrupted Power Supply: Simultaneous Connection to Grid/Generator and PV
- 4 Charging Modes: Only Solar, Mains Priority, Solar First, Solar & Mains Hybrid
- Intelligent Programming: Configurable Output Source Priority
- Power Saving Mode: Reduces Consumption at Zero Load
- Intelligent Variable-Speed Cooling Fans
- LCD Screen + 3 LED Indicators for Real-Time System Monitoring
Physical & Environmental:- Dimensions (H × W × D): 426 × 322 × 124 mm
- Weight: 10.5–10.9 kg
- Protection Degree: IP20 (Indoor Use Only)
- Operating Temperature Range: -15°C to +55°C
- Noise Level: <60 dB
- Cooling Method: Internal Fan
Key Specs: SRNE HFP4850S80-H, 5kW 48V All-in-One Off-Grid Hybrid Solar Inverter, Pure Sine Wave Output, Built-In 80A MPPT Solar Charge Controller, 500Vdc Max PV Input, 120–450Vdc MPPT Range, 5,500W Max PV Array Power, 48V Battery System (40–60Vdc), Supports Li-ion/Lead-Acid/User-Defined, 80A Hybrid Charging, 60A Mains Charging, 10ms Transfer Time, Parallel Up to 6 Units, 97.5% Max Efficiency, 99.9% MPPT Tracking Efficiency, IP20, RS485/CAN/USB/Dry Contact, Optional Wi-Fi/GPRS, LCD Display
Usage: Off-Grid Solar Power Systems, Residential & Commercial Backup Power, Homes, Offices, Shops, Small Businesses, Battery Storage Systems, Areas with Unstable or No Grid Power, Medium to Large Solar Installations
