Back-UPS (BX Series)
This is the standard, entry-level line for home and small office use
.
- Power Rating: 1200 VA / 650 W (for 230V models).
- Topology: Line-interactive with Automatic Voltage Regulation (AVR).
- Runtime: Typically 1 minute at full load (650W) and 5 minutes at half load (300W).
- Outlets: Varies by region (e.g., 4 Schuko, 6 IEC C13, or 4 Universal + 1 IEC).
- Features: LED status indicators, audible alarms, and data line surge protection.
- Battery: Internal lead-acid, typical recharge time of 8 hours.
Back-UPS Pro (BR Series)
This line offers more features and higher wattage for the same VA rating.
- Power Rating: 1200 VA / 720 W.
- Topology: Line-interactive with AVR and pure sine wave output on battery.
- Features: LCD display (vs. LED), 2 USB smart charging ports, and a user-replaceable battery.
- Outlets: Typically 8x IEC C13 in 230V regions.
Smart-UPS (SMT Series)
This is the higher-end, business-grade line, often rack-mountable.
- Power Rating: 1200 VA / 1000 W (for 100V models).
- Topology: Line-interactive with AVR and pure sine wave output.
- Form Factor: 1U Rack-mountable.
- Features: LCD console, switchable outlet groups, emergency power off (EPO), and typically a SmartSlot for network management cards.
- Runtime: Approximately 3 minutes 29 seconds at full load (1000W).

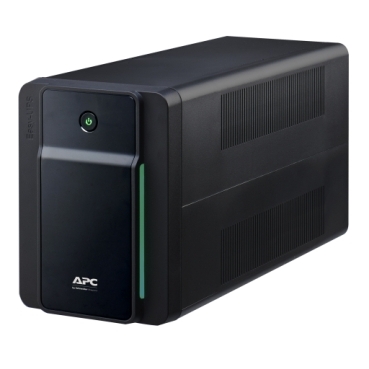

Easy UPS (BVX Series)
A more budget-focused line, though often still 1200VA.
- Power Rating: 1200 VA / 650 W.
- Topology: Line-interactive with AVR.
- Outlets: Varies (e.g., 4 Universal + 1 IEC).
- Battery: Internal lead-acid, but with a notably shorter typical battery life of 1 to 2 years on some models.
