KSh 481,840(KSh 558,934 Incl VAT)

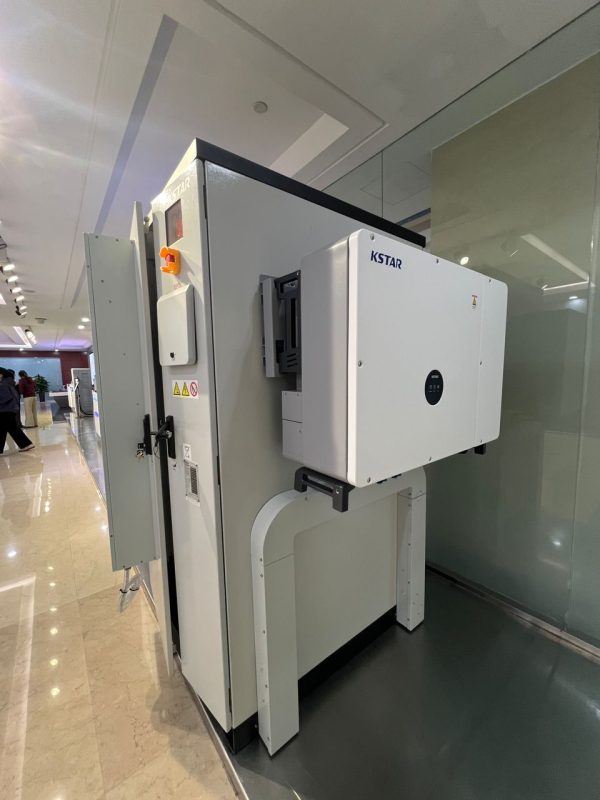

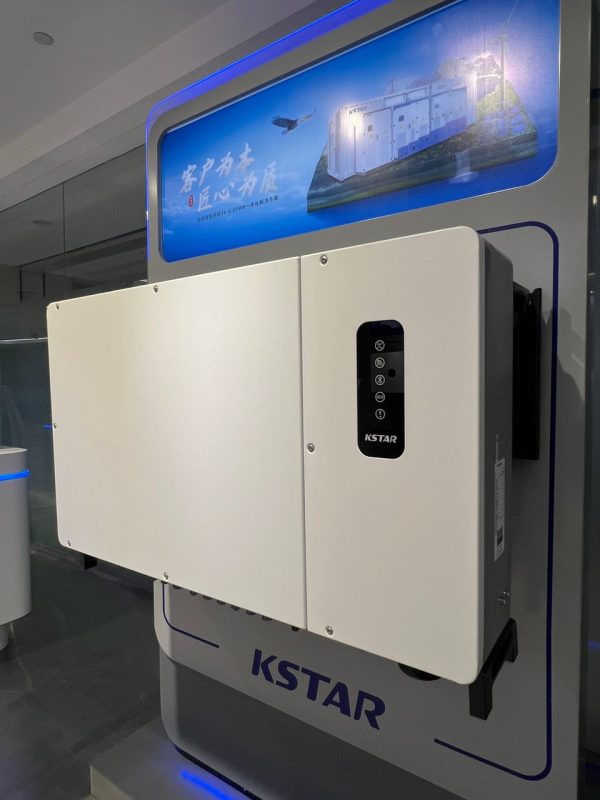

Device Type: 125kW Three-Phase On-Grid String Solar Inverter (BlueKernel Series)
Model / SKU: G125KT7
Input (DC): Max. DC Voltage: 1100V; Max. Input Current per MPPT: 40–45A; Max. Short-Circuit Current per MPPT: 60A; Start Voltage: 350V; MPPT Voltage Range: 200–1000V; Nominal Voltage: 650V; 8x MPPT Trackers; 2 Strings per MPPT
Output (AC): Nominal AC Output Power: 125kW; Max. AC Apparent Power: 125kVA; Nominal AC Voltage: 230V / 400V, 3W+PE, 3W+N+PE; AC Grid Frequency Range: 50/60Hz (±5Hz); Max. Output Current: 181.2A; Power Factor: 0.8 Leading ~ 0.8 Lagging; THDi: <3% (Nominal Power)
Efficiency: Max. Efficiency: 98.7%; Euro Efficiency: 98.5%
Protection: DC Switch, Anti-Islanding Protection, Output Over Current Protection, DC Reverse Polarity Protection, AC Short Circuit Protection, Insulation Detection, Residual Current Monitoring; DC/AC Surge Protection: Type II (DC & AC); String Fault Detection (Optional), AFCI Function (Optional), PID Recovery (Optional), Night SVG Function (Optional)
Communication & Monitoring: RS-485, PLC (Power Line Communication), WiFi, Ethernet, Bluetooth + App Access, LED Indicators; Supports Remote Monitoring, Fault Diagnosis, and OTA Software Updates
General Specifications: Dimensions (W×H×D): 965 × 700 × 355 mm; Weight: 85 kg; Operating Temperature Range: -30°C to 60°C; Cooling Type: Fan; IP Rating: IP66; Max. DC/AC Ratio: 1.5 (150% Oversizing)
Key Specs: KSTAR BlueKernel G125KT7 125kW Three-Phase Inverter, 8x MPPT, 1100V DC Input, 98.7% Max. Efficiency, IP66 Protection, Type II DC/AC SPD, PLC Communication, WiFi/4G Optional, 150% DC Oversizing, Optional AFCI & PID Recovery
Usage: Commercial & Industrial (C&I) Solar Projects, Utility-Scale Solar Power Plants, Large Industrial Installations, and Distributed Generation Systems
