Device Type: 9U Wall-Mount Rack Cabinet (19-inch)
Cabinet Dimensions (W × D × H): 600 × 450 × 505–513 mm (varies by model; Legrand lists 605 × 454 × 492 mm, Serveredge lists 600 × 450 × 513 mm)
Rack Capacity: 9U internal space
Equipment Width: 19-inch standard (482.6 mm modular spacing)
Load Capacity: 8–100 kg static load (varies significantly by manufacturer; common ratings are 27 kg, 45 kg, 60 kg, and 80 kg)
Protection Rating: IP20 (indoor use); some models also rated IK08 for mechanical impact resistance
Material: Cold-rolled steel (SPCC) body; front door typically tempered glass
Front Door: Lockable, reversible (glass or steel depending on model)
Side Panels: Removable, lockable (key lock); snap-fastener removal on some models
Cable Entry: Pre-cut entries at top, bottom, and rear (varies by model)
Ventilation: Passive perforations; ceiling openings for optional fan installation

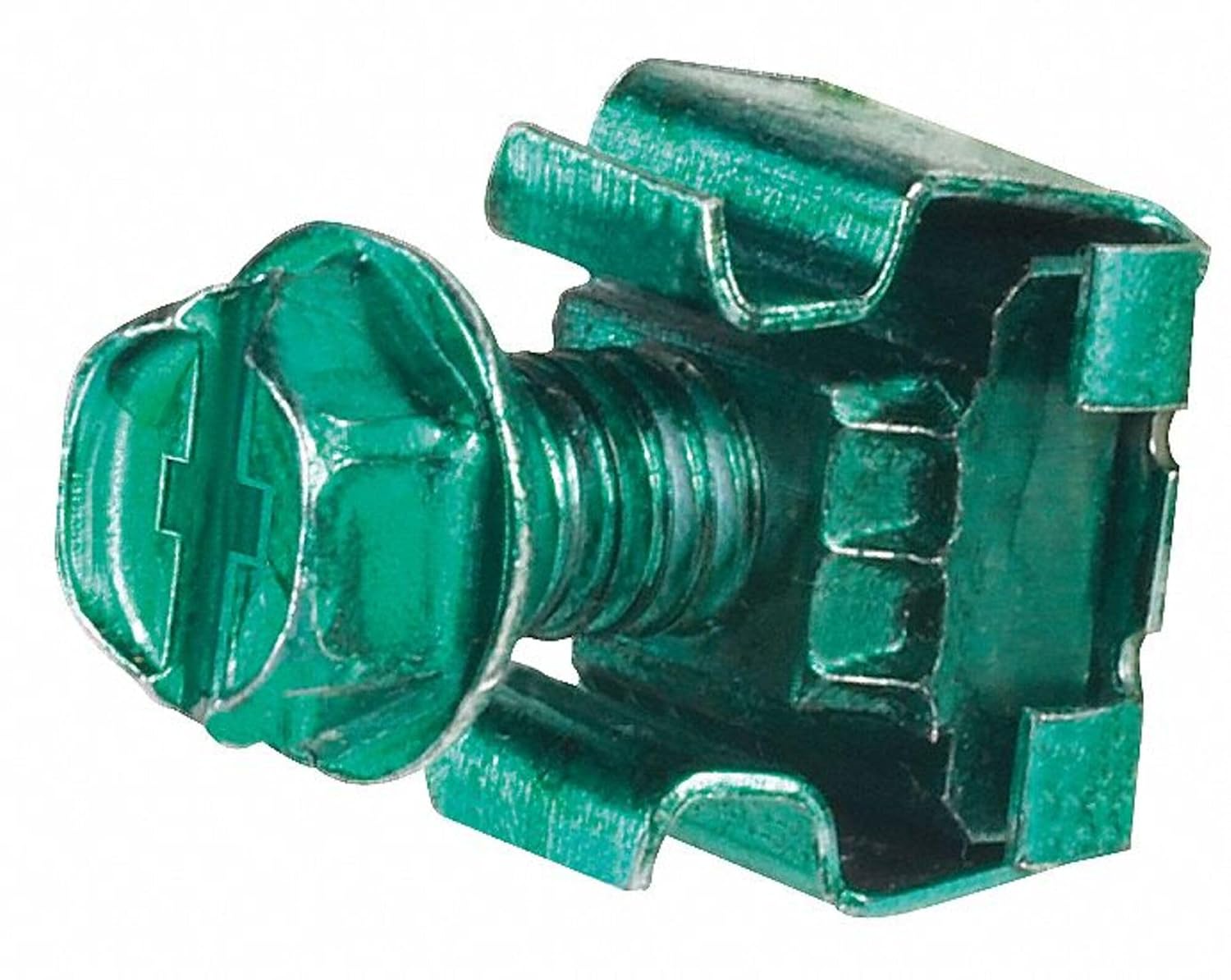

Included Accessories: Rack rails, M6 screws, cage nuts, keys, and blank entry plates (varies by model; some include a cantilever shelf)
Key Specs: 9U 19-inch Wall-Mount Cabinet, 600 × 450 mm Footprint, 8–100 kg Load Capacity (Model Dependent), IP20 / IK08, Cold-Rolled Steel, Lockable Glass/Steel Door, Removable Lockable Side Panels, Top/Bottom/Rear Cable Entry, Optional Fan Mounting
Usage: Network Closets & Small Server Rooms, CCTV & IP Surveillance Equipment Housing, Alarm/Access Control Low-Voltage Systems, Telecom & IT Cabling, Home & Office Rack Installations
