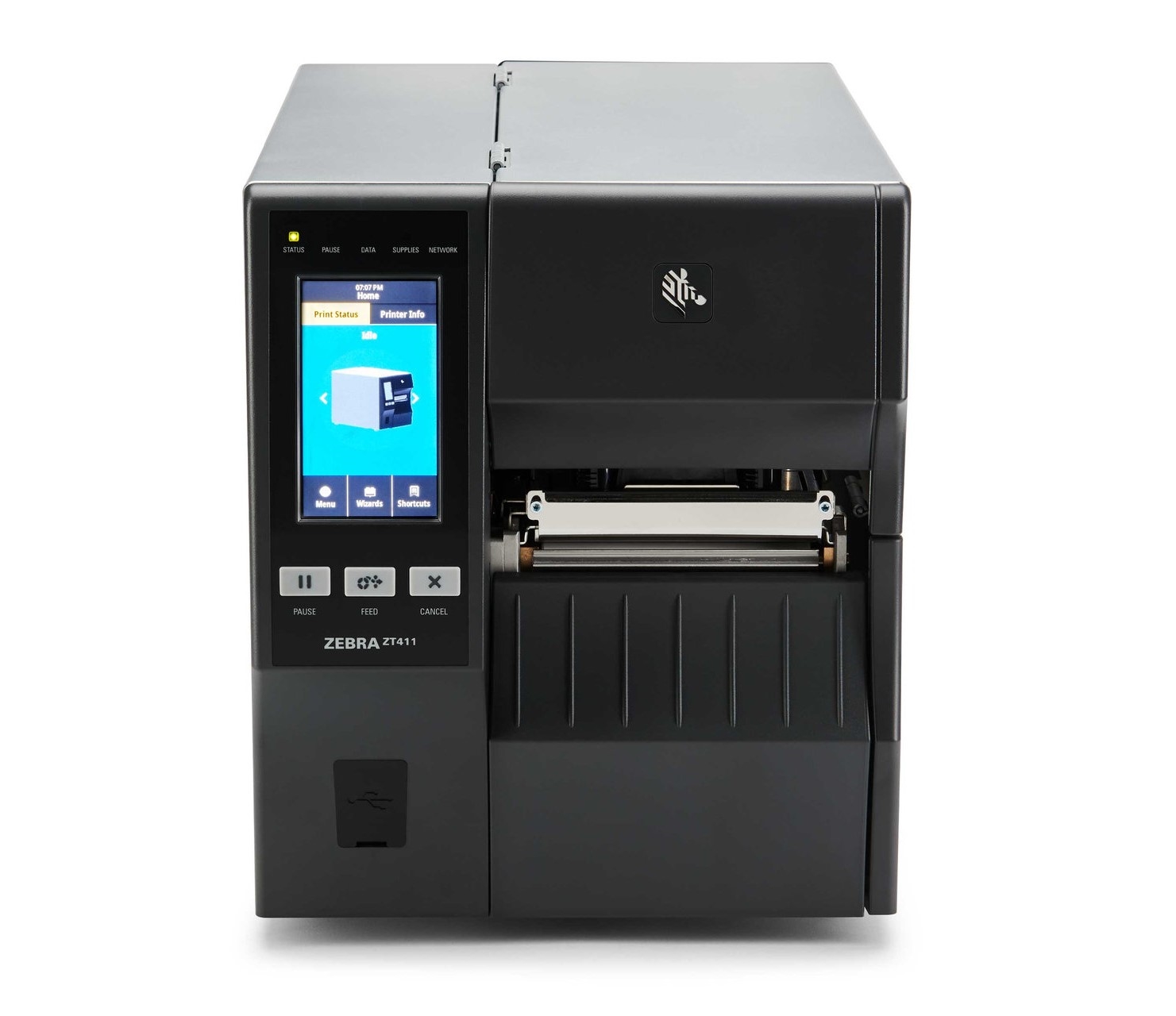

Core Printing Capabilities
- Print Resolution: 300 dpi (12 dots/mm), providing higher detail than the standard 203 dpi model .
- Print Technology: Supports both Thermal Transfer (using ribbon) and Direct Thermal printing .
- Print Speed: Maximum speed of 14 inches per second (ips) at 203 dpi, with the 300 dpi model capable of up to 10 ips (254 mm/s) .
- Maximum Print Width: 4.09 inches (104 mm) .
Industrial Construction & Usability
- Durable Design: Features an easy, side-loading metal print mechanism and a metal media cover with an enlarged viewing window, built to withstand demanding environments .
- Intuitive Interface: Equipped with a 4.3-inch color touch display for quick operation and settings management, plus bi-colored status LEDs .
- Space-Saving: The bi-fold media door decreases the overall operating space required by 35% .
- Connectivity & Integration
- Standard Interfaces: Includes USB 2.0, RS-232 Serial, 10/100 Ethernet, Bluetooth 4.2, and Dual USB Host ports .
- Field-Upgradable: Two open communication slots allow you to easily add optional cards like Parallel, Applicator Interface, or advanced wireless (Wi-Fi 6/5) as your needs evolve .
- Programming: Resident ZPL, ZPL II, and EPL languages, plus XML-Enabled Printing for seamless integration without extra server hardware .
Advanced Options & Future-Proofing
- Media Handling: Field-installable options include Peel, Cutter, Liner Take-Up, and Full Rewind .
- RFID Capable: Fully integrated UHF EPC Gen 2 RFID reader/encoder is available, with an optional On-Metal Tagging solution for challenging surfaces .
- Specialty Kits: Supports field-installable Linerless printing kits and 1-inch core media supply hangers .
