KSh 119,550(KSh 138,678 Incl VAT)
Warranty: 1 Year

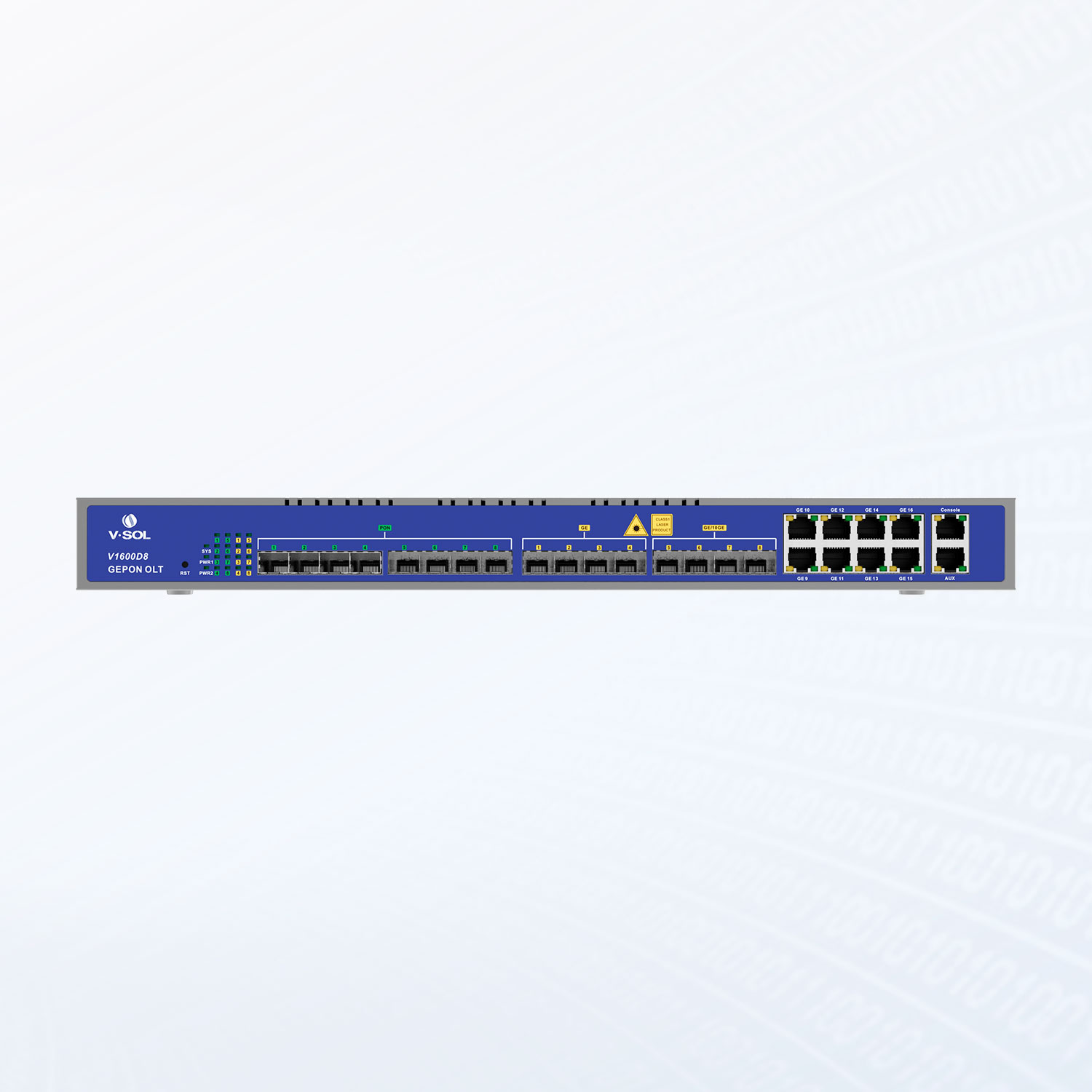

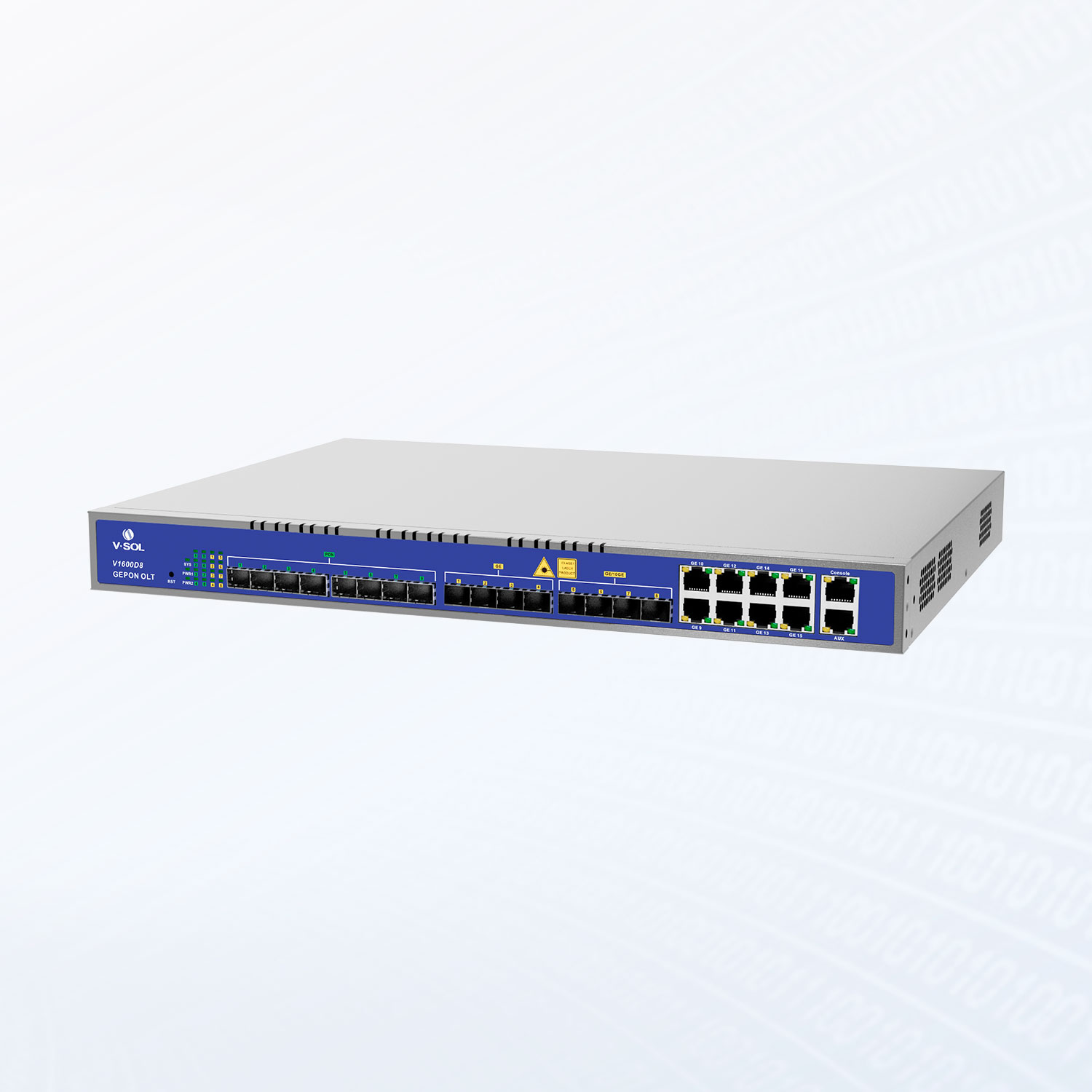

Device Type: 8-Port EPON OLT (VSOL V1600D8)
Video Output: N/A (Network OLT)
Data Ports: 8 × EPON PON Ports (SC/UPC), 8 × GE RJ45 Uplink Ports, 4 × 1G SFP Uplink Slots, 4 × 10G SFP+ Uplink Slots, 1 × Console Port, 1 × 10/100BASE-T Out-of-Band Management Port
Network: Layer 3 EPON OLT, 128 Gbps Backplane Bandwidth, 1:64 Max Split Ratio, Up to 512 ONUs, 20 km Transmission Distance
PON Specifications: Symmetrical 1.25 Gbps per PON port, TX 1490nm / RX 1310nm, PX20++ / PX20+++ SFP Modules
Power Supply: AC 100–240V (Standard); DC -48V Option Available; Max Consumption 45–55W
Dimensions: 1U 19-Inch Rack Mount, 442 × 320 × 43.6 mm
Weight: Approx. 4.3–4.5 kg
Operating Temp: -10°C to +55°C (or -20°C to +60°C per VSOL official)
Key Specs: VSOL V1600D8, 8-Port EPON OLT, 1U Rack Mount, 8× EPON PON, 8× GE RJ45 + 4× SFP + 4× SFP+ Uplink, 512 ONUs, 1:64 Split, 20km Reach, Layer 3 Routing (RIP/OSPF), PX20++ SFP Modules Included
Usage: FTTH/FTTx Deployments, ISP Access Networks, Enterprise LAN, IP Camera Backhaul, Triple-Play Services
