The

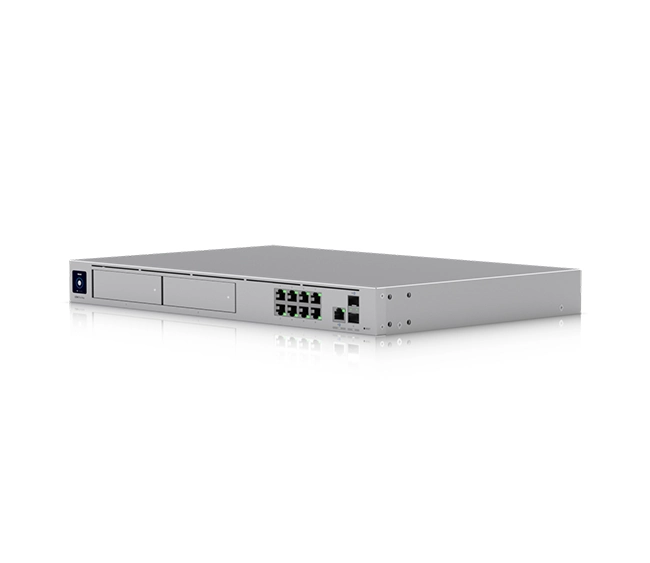

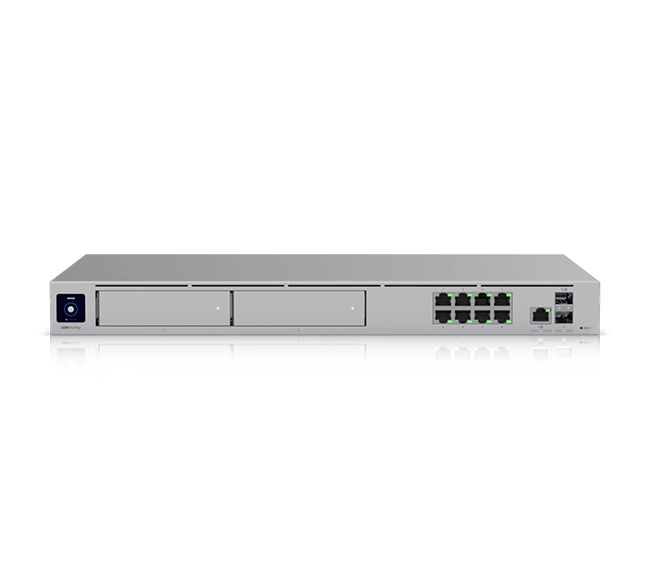

UniFi Dream Machine Pro Max (UDM-Pro-Max) is Ubiquiti’s most powerful all-in-one UniFi Cloud Gateway, designed to support large-scale networks with enhanced performance, storage, and security features.
🔧 Key Hardware Specifications
- Processor: Quad-core ARM® Cortex®-A57 at 2.0 GHz
- Memory: 8 GB DDR4
- Storage:
- 32 GB eMMC (system)
- 128 GB integrated SSD (NVR detection recordings)
- (2) 3.5" HDD bays with RAID support for UniFi Protect
- Networking Interfaces:
- WAN:
- (1) 2.5 GbE RJ45 port
- (1) 10G SFP+ port
- LAN:
- (8) 1G RJ45 ports
- (1) 10G SFP+ port
- Management Interfaces: Ethernet, Bluetooth
- Display: 1.3" touchscreen for device status and diagnostics
- Enclosure: Aluminium CNC, SGCC steel
- Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
- Weight: 4.7 kg (10.4 lb)
- Power Supply: Internal AC/DC, 100W; supports UniFi SmartPower RPS for redundant power
🌐 Networking & Performance
- Routing Performance: Up to 5 Gbps with IDS/IPS enabled
- Client Capacity: Supports over 200 UniFi devices and 2,000+ clients
- Security Features:
- Intrusion Detection and Prevention System (IDS/IPS)
- Deep Packet Inspection (DPI)
- Application, domain, and country-based QoS
- VPN support: IPsec, OpenVPN, WireGuard, Teleport
- Redundancy:
- Dual WAN with failover and load balancing
- Redundant NVR storage with RAID support
- Power redundancy via USP-RPS
📦 UniFi OS Application Support
The UDM-Pro-Max runs the full UniFi OS suite, including:
- UniFi Network: Advanced routing, firewall, and network management
- UniFi Protect: Video surveillance with support for up to 25 HD, 15 2K, or 10 4K cameras
- UniFi Access: Door access control
- UniFi Talk: VoIP phone system
- UniFi Connect: Digital signage and other connected devices
