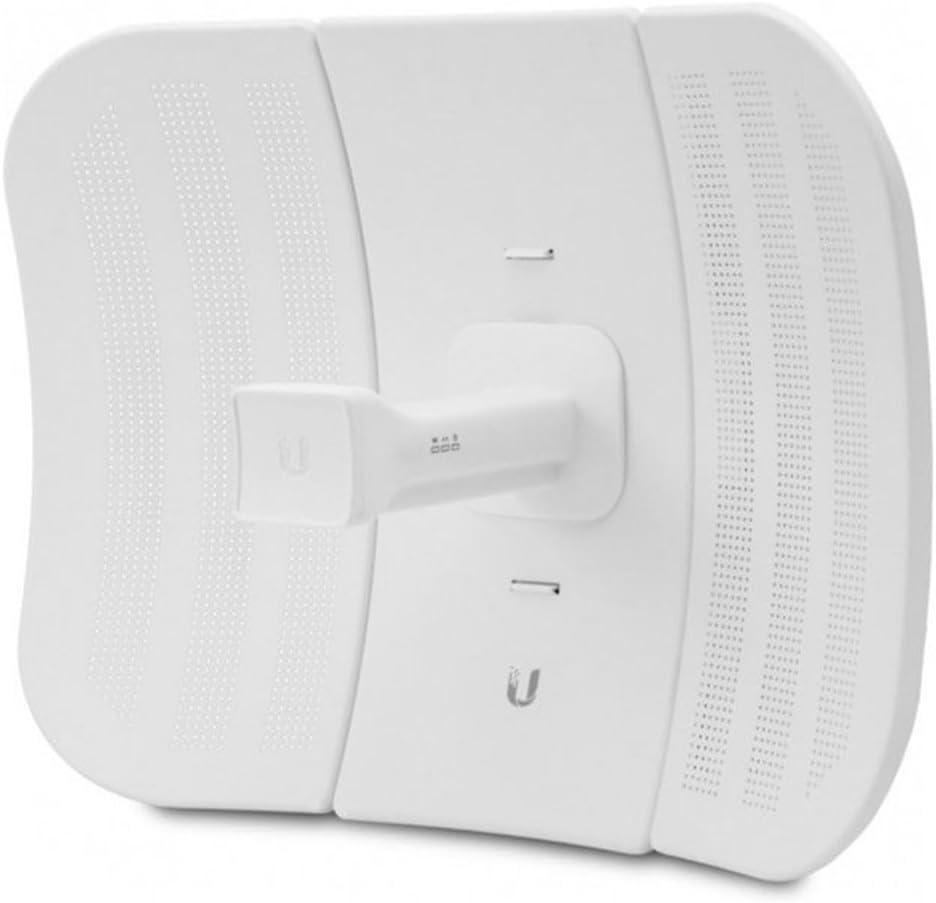

Ubiquiti M5-23 Air Max Litebeam
KSh 8,130(KSh 9,431 Incl VAT)
High-Gain Antenna: Equipped with a 23 dBi directional antenna and 25 dBm max output power, providing strong signal focus for long-distance links .
Long Range: Capable of links up to 15 km to 30+ km, depending on environmental conditions and alignment .
Throughput: Delivers up to 100+ Mbps real outdoor throughput, suitable for backhaul or broadband access .
airMAX TDMA Technology: Uses Time Division Multiple Access (instead of standard Wi-Fi CSMA) to eliminate hidden node collisions, improve airtime efficiency, and provide intelligent QoS for voice/video prioritization .
Snap-and-Lock Assembly: The mechanical design allows tool-free assembly and disassembly, simplifying field installation .
3-Axis Ball Joint Mount: The included pole mounting kit features a ball joint for precise alignment in three axes, with an integrated bubble level for accurate aiming .
Lightweight & Compact: Weighs only 750 g with dimensions of 362 x 267 x 184 mm, reducing wind load on the pole .
InnerFeed Technology: Integrates the entire radio system into the antenna feedhorn, minimizing signal loss .
Power: Powered via Passive PoE (24V, 0.2A adapter included). Max power consumption is listed as 4W on some spec sheets and 7W on others .
Rugged Design: Operates in temperatures from -40 to 70°C and humidity of 5 to 95% non-condensing. ESD/EMP protection rated at ±24kV .
Networking Interface: Single 10/100 MbE RJ45 port.
