PoE Input & Output
- Input Compatibility: Accepts 802.3af/at (active) or 48V Passive PoE (44–57V). It supports both Mode A (Pins 1,2,3,6) and Mode B (Pins 4,5,7,8) pinouts.
- Output Power: Delivers up to 25W of power, classified as 802.3af or 802.3at Class 4.
- Output Pinout: Outputs power on Pins 1,2 (+) and 3,6 (-).
Data & Performance
- Gigabit Speeds: Supports 10/100/1000 Mbps data rates with automatic link speed, duplex, and crossover detection.
- Extended Range: Extends PoE an additional 100 meters per unit. By daisy-chaining multiple units, you can reach up to 300 meters over CAT5/CAT6 cable.
- Self-Consumption: Draws a typical 2.0W of power for its own operation.
Outdoor Durability
- Weatherproof Enclosure: Housed in a rugged, powder-coated aluminum case rated IP66, protecting it from dust and water ingress.
- Temperature Range: Operates reliably from -25°C to +55°C (-13°F to 131°F).
- Humidity: Rated for 0 to 100% RH operating humidity.
Installation & Design
- Plug and Play: No configuration required. It is powered entirely by the PoE input, so no additional power source is needed at the extender location.

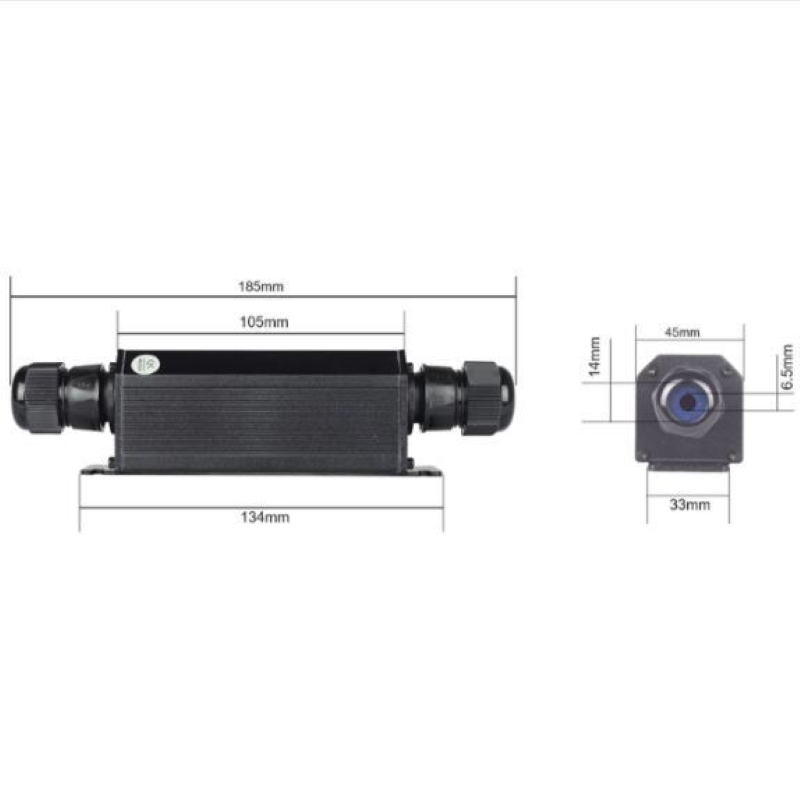

- Compact Size: Measures 185 x 45 x 45 mm (7.3 x 1.8 x 1.8 inches) and weighs approximately 240g (8.5 oz).
Typical Applications
Ideal for powering and connecting remote
wireless equipment (access points),
IP cameras,
sensor equipment, and
PoE lighting in outdoor or industrial settings
