Reyee  RG-RAP1261 - Wi-Fi 6 AX3000 Ultra-Thin Wall Plate Access Point

---

🛠 Technical Specifications

Wireless Standards

• IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Dual-band concurrent operation
• MU-MIMO, OFDMA, Beamforming supported

Max Wireless Rates

• 2.4GHz: 574 Mbps
• 5GHz: 2,402 Mbps
• Total: 2,976 Mbps (AX3000 class)

Antenna Design

• Built-in omnidirectional antennas
• Gain:
  • 2.4GHz: 1.6 dBi
  • 5GHz: 4.13 dBi

Ports

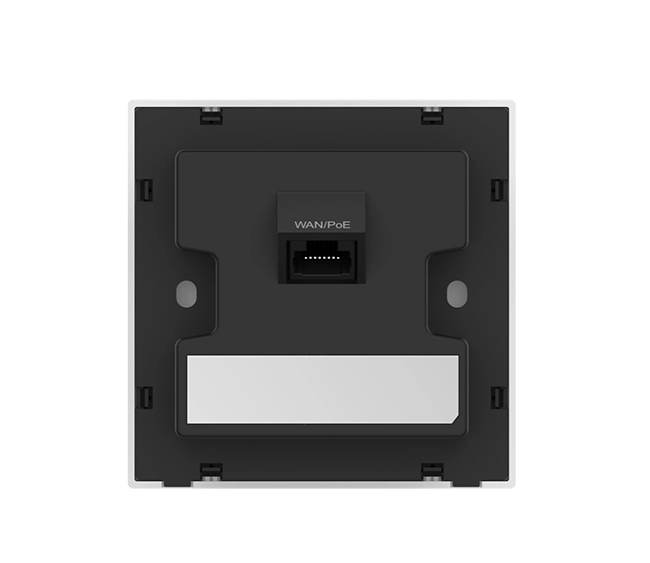

• 1× 10/100/1000Base-T uplink (PoE-in, 802.3af/at)
• 1× 10/100/1000Base-T downlink (LAN)

Power Supply

• PoE: IEEE 802.3af/at
• Power Consumption: ≤ 13.5W

Performance Capacity

• Max users: 512
• Recommended users: 110
• SSIDs: Multiple, with VLAN support
• Layer 2 isolation, RSSI limit, airtime fairness

Roaming & Mesh

• Supports seamless Layer 2/3 roaming
• 802.11k/v/r fast roaming
• Reyee Mesh auto-configuration

Management

• Ruijie Cloud / Reyee Router App
• Local Web UI
• Cloud portal authentication

---

🧱 Mechanical & Environmental

Design

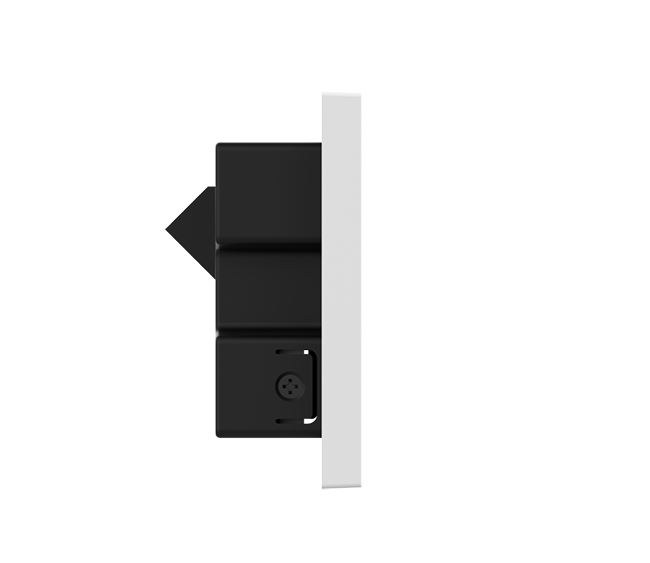

• Ultra-thin 8.5 mm wall plate
• Fits 86 mm standard wall box
• Passive cooling, low heat design

Dimensions

• 86 × 86 × 25 mm
• Weight: ~0.2 kg

Operating Environment

• Temp: 0°C to 40°C
• Humidity: 5% to 95% RH non-condensing

Certifications

• CE, RoHS, SRRC, FCC, etc.

---

✅ Use Cases

• Ideal for hotels, apartments, offices, dormitories
• Blends discreetly into interiors while delivering high-performance wireless
