The

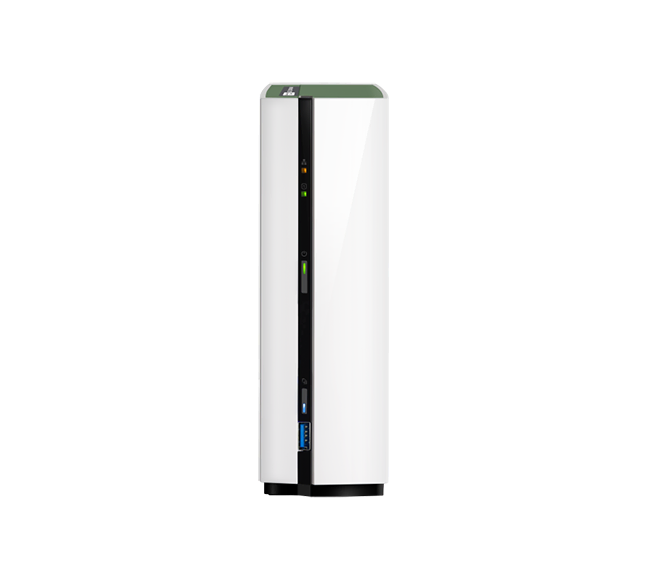

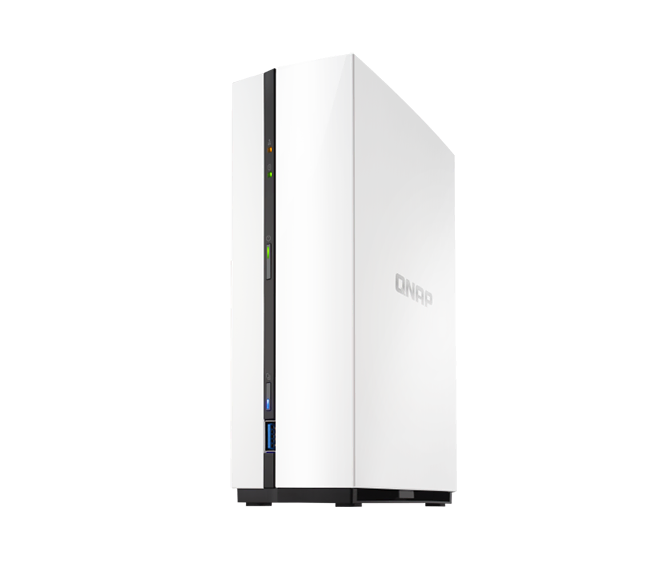

QNAP TS-128A 1-bay NAS is a compact and energy-efficient 1-bay NAS designed for home and small office users seeking simple data backup, secure file sharing, and multimedia streaming. Powered by a quad-core Realtek processor with hardware encryption and snapshot protection, it offers solid performance in a lightweight, quiet form factor.
Detailed Specifications
Processor & Memory
- CPU: Realtek RTD1295, Quad-Core 1.4 GHz (ARM Cortex-A53)
- Architecture: 64-bit
- Memory: 1 GB DDR4 (non-expandable)
- Flash Memory: 4 GB eMMC
Storage & Drive Bays
- Drive Bays: 1 × 3.5” SATA 6Gb/s HDD or SSD
- Maximum Capacity: Supports large-capacity SATA drives
- Hot-Swappable: No
Networking & Connectivity
- LAN Port: 1 × Gigabit RJ-45 Ethernet
- USB Ports: 1 × USB 3.2 Gen 1 (front), 2 × USB 2.0 (rear)
- Buttons: Power, One-Touch Copy
- LED Indicators: Status, LAN, HDD
Performance
- Read/Write Speed: Up to 112 MB/s sequential throughput
- Encryption: Hardware-accelerated AES-256 encryption engine
- Snapshots: Supports up to 16 snapshots per volume and 32 total per NAS
Power & Cooling
- Power Supply: External 36W adapter
- Power Consumption: 7.12 W (operating), 3.09 W (sleep mode)
- Cooling System: 1 × 76mm fan (smart temperature control)
- Noise Level: Approx. 15.7 dB(A)
Physical & Environmental
- Dimensions: 187.7 × 60 × 125 mm
- Weight: 0.56 kg
- Operating Temperature: 0°C – 40°C
- Humidity: 5% – 95% non-condensing
Software & Features
- Operating System: QTS NAS Operating System
- Supported Protocols: SMB/CIFS, AFP, NFS, FTP, WebDAV, iSCSI
- Backup Solutions: Qsync, Hybrid Backup Sync, Cloud Backup, Snapshot Recovery
- Multimedia Support: Photo, Music, and Video Stations with DLNA and Plex support
- Mobile Apps: Qfile, Qmanager, Qphoto, and Qvideo
- Security: AES-256 volume encryption, IP blocking, and access control
Key Features
- Quad-core Realtek 1.4 GHz processor with AES encryption
- Snapshot support for enhanced data protection
- 1 GB DDR4 memory with 4 GB eMMC flash
- Energy-efficient design with low noise
- Up to 112 MB/s performance for file sharing and backup
- Ideal for multimedia streaming and cloud synchronization
Meta Description
The QNAP TS-128A 1-bay NAS powered by a quad-core Realtek 1.4 GHz processor with AES encryption, snapshot protection, and 1 GB DDR4 memory. It offers up to 112 MB/s performance for data backup, sharing, and home multimedia applications in a quiet, energy-efficient design.
