KSh 6,630(KSh 7,691 Incl VAT)

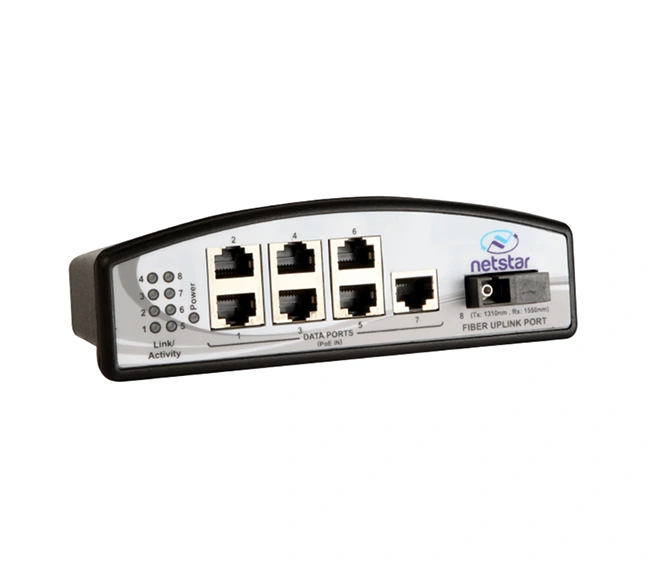

Device Type: Outdoor Reverse PoE Switch with Built-in Fiber Uplink (Fiber Media Converter + RPoE Switch Combo)
Part Number/SKU: NS-RP071F-13T-OD
Brand: Netstar
Downlink Ports: 7 × 10/100 Mbps RJ-45 Reverse PoE (RPoE) Ports
Uplink Port: 1 × 10/100 Mbps Single-Fiber SC Uplink Port (13T: 1310 nm TX / 1550 nm RX)
Power Input: Remote PoE (RPoE) via any standard PoE Injector — 24 V DC, 0.5–1 A; no external AC power required at the outdoor unit
Power Over Ethernet: Any or all 7 downlink ports can power the switch; draw power from a single client
Power Consumption: 2 W (Switch)
Standards: IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX), 802.3x (Flow Control), 802.3az (Energy Efficient Ethernet)
Switching Method: Store-and-Forward
MAC Address Table: 1K Entries
Packet Buffer: 448K bits
Max Forwarding Packet Length: 1536 bytes
Filtering/Forwarding Rates: 100 Mbps Port – 148,800 pps; 10 Mbps Port – 14,880 pps
Cascading: Supports chaining up to 4 units (1 main + 3 satellites)
Port Isolation: Downlink ports isolated from each other; uplink port communicates with all downlinks (DIP switch configurable)
Protection: Surge, Over-Voltage, and Over-Current Protection on all ports
Enclosure: Outdoor-Ready Weatherproof Housing
Dimensions: 185 × 149 × 55 mm
Weight: Approx. 0.4 kg (400 g)
Operating Temperature: 0°C to 50°C
Storage Temperature: –30°C to 60°C
Operating Humidity: 20% to 95% (Non-Condensing)
Cable Compatibility: 4-Pair UTP Cat 5 / Cat 6 (Data: Pins 1,2 & 3,6; Power: +VDC Pins 4,5 / –VDC Pins 7,8)
Key Specs: Netstar NS-RP071F-13T-OD, Outdoor Reverse PoE Switch, 7× 10/100 Mbps RPoE Ports, 1× Single-Fiber SC Uplink (1310nm TX / 1550nm RX), Powered via 24V DC RPoE, Weatherproof Enclosure, Port Isolation, Surge Protection, Cascadable up to 4 Units
Usage: FTTH/ISP Outdoor Last-Mile Deployments, Extending Ethernet over Fiber, Powering Ethernet CPE Devices, WISP Networks, Rooftop/Building-Top Installations, Remote-Powered Outdoor Networking
