hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.
It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage. The port #5 can power other passive PoE capable devices with the same voltage as applied to the unit
IPsec hardware encryption and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude

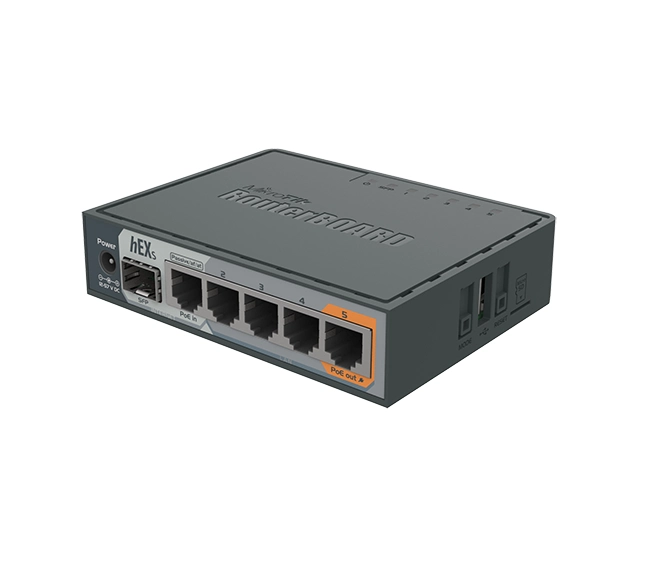

📡 MikroTik RB760iGS – hEX S
Powerful. Compact. Reliable.
🔧 Hardware Overview
A high-performance, affordable Gigabit Ethernet router for professional setups.
- CPU: Dual-Core 880 MHz (MediaTek MT7621A)
- Memory: 256 MB DDR3 RAM
- Storage: 16 MB Flash
- RouterOS: Level 4 License
- Case: Durable plastic with vented design
- Buttons & Indicators: Reset button, Power & Activity LEDs
🌐 Connectivity & Interfaces
- 5 × Gigabit Ethernet Ports
- Port #5 supports Passive PoE Out (max 500 mA)
- 1 × 1.25G SFP Port
- Ideal for fiber connections
- 1 × USB 2.0 Port
- For external storage or 3G/4G modem
- PoE-In Support
- Port #1 supports Passive PoE or 802.3af/at (18–57 V input)
⚡ Power & Efficiency
- Power Adapter Included: 24V 1.2A
- PoE Output: Passive on port 5 (voltage mirrors input)
- Max Power Consumption:
- 11W (without external devices)
- 24W (with USB & PoE load)
- Power Options: DC jack or PoE-in
🧠 Advanced Features with RouterOS
Unlock powerful routing and network management capabilities:
- Dynamic Routing & VPNs
- Firewall & Bandwidth Management
- MPLS, IPsec, Hotspot, VLANs
- Traffic shaping and monitoring
🌍 Built for All Environments
- Operating Temperature: –40°C to +70°C
- Compact Form Factor: Saves desk or cabinet space
- Ideal Use Cases:
- Small Business Routing
- Home Office Networks
- Branch Network Gateways
- Fiber-Connected Deployments
🏆 Why Choose hEX S?
✅
Performance that rivals higher-end routers
✅
Fiber-ready with SFP support
✅
PoE flexibility with output on port 5
✅
Future-proof with RouterOS feature upgrades
✅
Reliable uptime in any conditions
📦 What’s in the Box?
- hEX S Router (RB760iGS)
- 24V 1.2A Power Adapter
- Quick Setup Guide
