Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).
Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
🚀 MikroTik RB1100AHx4
High-Speed Enterprise Router with 13 Gigabit Ports & IPsec Acceleration

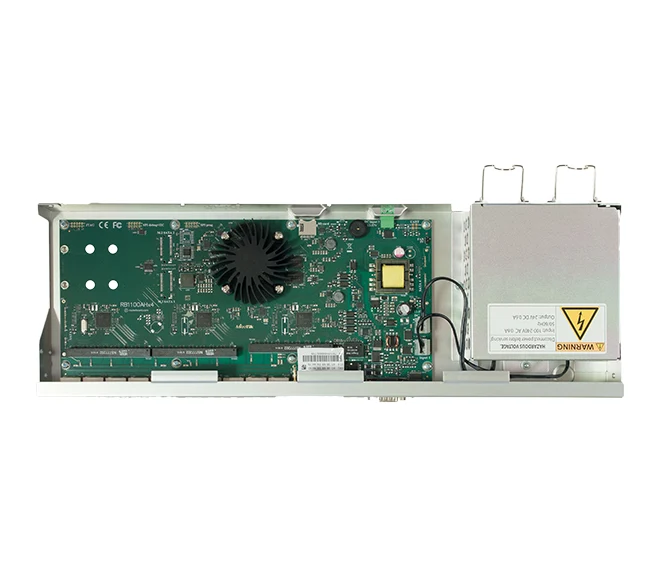

🔧 Hardware Overview
The
RB1100AHx4 is a high-performance
rackmount router featuring a powerful quad-core ARM CPU, hardware-accelerated IPsec encryption, and 13 Gigabit Ethernet ports. It’s designed for
enterprise networks,
data centers, and
branch offices that need reliable, fast, and secure routing with high throughput.
| Feature |
Description |
| CPU |
Annapurna Labs AL21400 (Quad-Core ARM Cortex-A15 @ 1.4 GHz) |
| RAM |
1 GB DDR3 |
| Storage |
128 MB NAND + microSD slot |
| Operating System |
RouterOS Level 6 |
| Form Factor |
1U Rackmount (with rack ears) |
| Case Material |
Metal |
| Dimensions |
444 x 148 x 47 mm |
🌐 Ports & Interfaces
- 13 × Gigabit Ethernet Ports
- Ports 1–12 in switch group
- Port 13 is standalone (ideal for uplink or routing)
- 1 × RJ45 Serial Console Port
- 1 × microSD Slot – For logging and configuration storage
🔒 Security & Performance
- IPsec Hardware Acceleration – Enabled by default
- Max Tested Throughput:
- Without IPsec: ~7.5 Gbps total
- With IPsec: ~2.2 Gbps+
- Firewall Performance: Excellent for high-capacity filtering/NAT
- RouterOS Features (L6):
- Routing: OSPF, BGP, MPLS
- VPN: IPsec, WireGuard, L2TP, OpenVPN, SSTP
- VLANs, bonding, bridging, CAPsMAN
- QoS, scripting, SNMP, Hotspot, advanced firewall
⚡ Powering & Environmental
| Feature |
Description |
| Power Supply |
Dual built-in redundant 100–240V AC PSU |
| Max Power Consumption |
20W |
| Cooling |
Dual internal fans (smart-controlled) |
| Operating Temp |
-20°C to +60°C |
| Mounting |
1U rackmount ears included |
📦 What’s in the Box?
- RB1100AHx4 Router
- 2× Built-in AC Power Supplies (Redundant)
- Rackmount Kit
- Quick Start Guide
🏆 Why Choose RB1100AHx4?
✅
Enterprise-Grade Quad-Core CPU
✅
13 Gigabit Ports for Dense Routing or Switching
✅
Hardware-Accelerated IPsec VPN
✅
Dual Redundant PSU for Maximum Uptime
✅
RouterOS Level 6 – All Features Unlocked
✅
Ideal for: Offices, Data Centers, Hotels, ISPs
