Like the other models in CCR2004 series, this CCR also features the Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores running at 1,7GHz. But here’s the difference. This powerful router crushes all previous CCR models in single-core performance, and that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example.But that’s not all! It also has the best single-core performance per watt and best overall performance per watt among all the CCR devices. Better for the planet, better for the bills, it’s a win-win!
The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel. Like all CCR devices, it comes in a classic white 1U rackmount case. Built-in dual redundant power supplies are included, so you have one less thing to worry about. And, of course, there is active cooling to keep things nice and cool. Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.

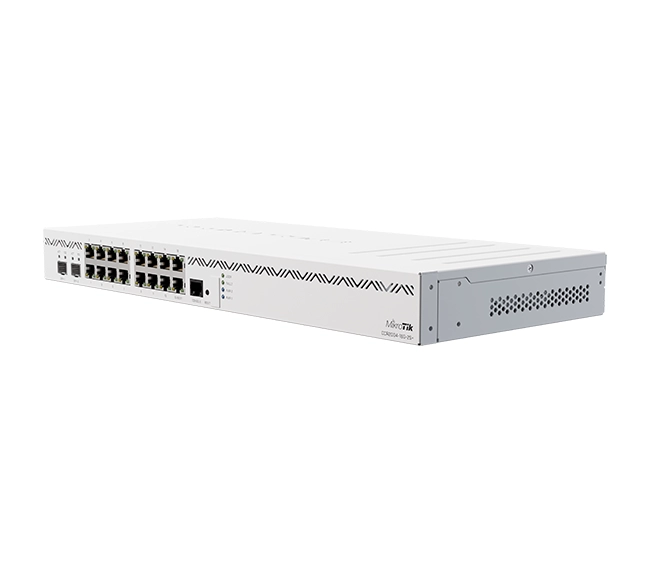

⚙️ MikroTik CCR2004-16G-2S+
Carrier-Grade Cloud Core Router with 16 Gigabit Ports & Dual 10G Uplinks
🧠 Product Overview
The
CCR2004-16G-2S+ is a
high-performance Cloud Core Router powered by a
64-bit ARM architecture CPU. Designed for heavy routing and switching loads, it features
16 Gigabit Ethernet ports and
2 × 10G SFP+ cages, making it ideal for enterprise networks, ISPs, and data center applications that demand high throughput and reliability.
🔧 Hardware Specifications
| Component |
Details |
| CPU |
Annapurna Labs Alpine v2 AL32400 – 64-bit ARM Quad-Core @ 1.7 GHz |
| CPU Architecture |
ARMv8 (AArch64) |
| CPU Core Count |
4 |
| RAM |
4 GB DDR4 |
| Storage |
128 MB NAND |
| Operating System |
RouterOS v7 (Level 6 license) |
| Form Factor |
1U Rackmount |
| Case Material |
Metal |
| Dimensions |
443 × 199 × 44 mm |
🌐 Interfaces & Connectivity
- 16 × Gigabit Ethernet Ports (10/100/1000 Mbps)
- 2 × 10G SFP+ Ports (for high-speed uplinks or fiber connections)
- 1 × RJ45 Serial Console Port
- 1 × USB Type-A Port
🔒 Routing & Performance
- Maximum Throughput: Over 3 Gbps real-world performance
- Advanced Routing Support: BGP, OSPF, MPLS, VRF, VLAN, etc.
- Wire-Speed Switching for most configurations
- IPsec Support (software-based)
- RouterOS v7 Capabilities: IPv6, VRRP, bonding, bridging, scripting, etc.
⚡ Powering & Cooling
| Feature |
Details |
| Power Input |
2 × Hot-Swap AC (100–240V) – IEC C14 |
| Redundant Power |
Yes, dual PSU for failover |
| Max Power Consumption |
~49W |
| Cooling |
4 × Smart-controlled fans |
| Operating Temperature |
-20°C to +60°C |
📦 What's in the Box
- CCR2004-16G-2S+ Router
- 2 × Built-in AC Power Supplies (Redundant)
- 1U Rackmount Kit (ears and screws)
- Power Cords
- Quick Start Guide
🏆 Why Choose CCR2004-16G-2S+?
✅
Quad-Core 64-bit ARM CPU @ 1.7 GHz
✅
16 × Gigabit + 2 × 10G SFP+ Ports
✅
4 GB RAM for Large Routing Tables and Queues
✅
RouterOS Level 6 – Full Feature Set Included
✅
Redundant Dual PSU + Smart Cooling
✅
Ideal for: Enterprise Core Routing, ISPs, and High-Density Uplinks
