Lenovo X1 Carbon GEN 7 | Core i7-8565U | 16GB RAM | 512GB SSD

Processor and Graphics

• Processor: Intel Core i7-8565U (8th Gen, 4 cores / 8 threads, 1.8GHz base, up to 4.6GHz, 8MB cache)
• Graphics: Integrated Intel UHD Graphics 620

Memory and Storage

• Memory: 16GB LPDDR3-2133 (Soldered, not upgradable)
• Storage: 512GB M.2 2280 PCIe NVMe SSD with Opal2 encryption
• Storage Support: Single M.2 2280 slot, supports up to 2TB SSD

Display and Design

• Display: 14-inch FHD (1920 x 1080) IPS, anti-glare, 400 nits, Low Power
• Weight: Starting at approximately 1.09 kg (2.4 lbs)
• Dimensions: 323.5 x 217.1 x 14.95 mm
• Color: Black

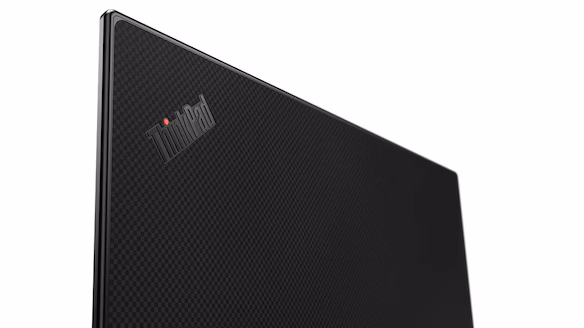

• Build: Carbon Fiber (Top), Magnesium Alloy (Bottom), MIL-STD-810G military test passed

Ports and Connectivity

• USB-C: 2x USB-C 3.1 Gen 2 / Thunderbolt 3 (Power Delivery, DisplayPort)
• USB-A: 2x USB 3.1 Gen 1 (one with Always On charging)
• Video Output: 1x HDMI 1.4b
• Other: 1x Ethernet extension connector, 1x headphone/mic combo jack, side docking connector, security keyhole
• Wireless: Intel 9560 11ac (2x2) + Bluetooth 5.0

Battery and Security

• Battery: Integrated 51Wh, supports Rapid Charge (80% in 1 hour with 65W adapter)
• Power Adapter: 65W USB-C
• Security: Discrete TPM 2.0, touch fingerprint reader, ThinkShutter camera privacy cover
• Camera: 720p HD with ThinkShutter

Software and Warranty

• Operating System: Windows 10 Pro 64
• Warranty: 1-year depot service (some models ship with 3-year onsite)
