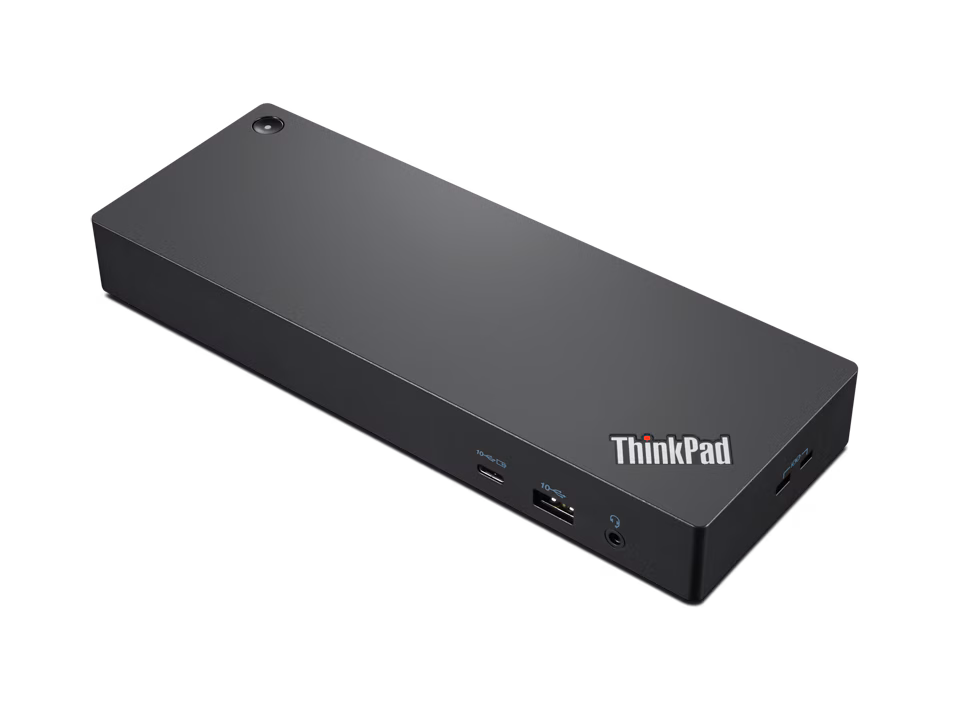

Lenovo ThinkPad Universal Thunderbolt 4 Dock | 40B00135UK

Datasheet

Short Description

The Lenovo ThinkPad Universal Thunderbolt 4 Dock (40B00135UK) is an enterprise-grade docking station designed to transform your compatible USB-C or Thunderbolt laptop into a powerful multi-monitor workstation . Featuring Intel Thunderbolt 4 technology with blazing-fast 40 Gbps data transfer, support for up to 100W power delivery, and the ability to drive one 8K display at 30Hz or up to four 4K displays at 60Hz , this dock delivers reliable, consistent connectivity for professionals in mixed-PC environments.

Key Sections

Enterprise-Grade Thunderbolt 4 Performance

The ThinkPad Universal Thunderbolt 4 Dock is built for demanding professional workflows, leveraging the power of Intel Thunderbolt 4 to deliver up to 40 Gbps of bi-directional bandwidth . This ensures seamless connectivity for high-speed data transfers, multiple 4K displays, and connected peripherals. The dock supports a single 8K display at 30Hz or up to four 4K displays at 60Hz, offering breathtaking visual clarity and detail for enhanced productivity and multimedia experiences .

Dynamic Power Delivery Up to 100W

Stay powered and productive with the dock’s efficient charging capabilities. It supports up to 100W power delivery (PD) to charge your compatible laptop while you work, reducing cable clutter and ensuring your devices are ready for demanding tasks . The included 135W power adapter ensures ample power for both the dock and connected devices .

Versatile Multi-Port Connectivity

The dock provides a rich array of ports to connect all your peripherals :

• Video Ports: 1x HDMI 2.1, 2x DisplayPort 1.4

• USB Ports: 4x USB-A 3.2 Gen 2 (one with Always-On charging), 1x USB-C 3.2 Gen 2

• Network: 1x Gigabit Ethernet (RJ-45)

• Audio: 1x 3.5mm combo audio jack

Universal Compatibility & Advanced Management

Engineered for universal compatibility, the dock works with laptops that support industry-standard USB-C Alt-Mode or Thunderbolt protocols . It also supports advanced features on most Lenovo ThinkPad systems, including MAC address pass-through, Wake-on-LAN, and mirrored power button functionality . The dock features Intel vPro/AMT pass-through support and allows for silent firmware upgrades, making it ideal for IT-managed environments . The dock is designed for Windows 10 64-bit and Windows 11 64-bit operating systems .

Secure & Sustainable Design

The dock includes a NanoSaver lock slot and a MicroSaver lock slot for physical security, protecting your investment in shared workspaces . The compact chassis measures 220x80x30mm and weighs 0.45kg, making it a practical addition to any office, home, or conference room setup .

Core Features

• Thunderbolt 4 Technology: Delivers up to 40 Gbps data transfer speeds for high-performance connectivity

• Multi-Display Support: Drives one 8K display at 30Hz or up to four 4K displays at 60Hz via HDMI 2.1 and dual DisplayPort 1.4 ports

• 100W Power Delivery: Efficiently charges your laptop while you work, reducing cable clutter

• Versatile Connectivity: 4x USB-A (one Always-On), 1x USB-C, Gigabit Ethernet, 3.5mm audio jack

• vPro/AMT Pass-Through: Supports advanced remote management features for enterprise IT environments

• Silent Firmware Upgrades: Enables hassle-free maintenance without interrupting workflow

Performance & Utility Features

• The dock supports up to four 4K displays at 60Hz, offering exceptional visual clarity and detail for enhanced productivity

• Data transfer rates up to 40 Gbps ensure lightning-fast file transfers and peripheral connectivity

• Compatible with Windows 10 and 11 operating systems

• Advanced features like MAC address pass-through and Wake-on-LAN are supported on most ThinkPad systems

Design, Build & Sustainability

• Compact black chassis with red accents offers a sleek, professional aesthetic

• Physical security features include a NanoSaver lock slot and a MicroSaver lock slot

• Includes a 0.7m Thunderbolt 4 passive cable and 135W Slim Tip power adapter

• Sustainable product design with responsible materials sourcing

Technical Specifications Summary

• Part Number: 40B00135UK

• Product Type: Thunderbolt 4 Docking Station

• Host Interface: Thunderbolt 4 (0.7m cable included)

• Power Delivery: Up to 100W

• Included Power Adapter: 135W Slim Tip

• Video Ports: 1x HDMI 2.1, 2x DisplayPort 1.4

• Max Resolution: 1x 8K @ 30Hz (HDMI 2.1) or 4x 4K @ 60Hz

• USB Ports: 4x USB-A 3.2 Gen 2 (1x Always-On), 1x USB-C 3.2 Gen 2

• Network: 1x Gigabit Ethernet (RJ-45)

• Audio: 1x 3.5mm combo headphone/mic jack

• Security: NanoSaver lock slot, MicroSaver lock slot

• Dimensions (WxDxH): 220mm x 80mm x 30mm

• Weight: 0.45kg

• OS Requirements: Windows 10 64-bit, Windows 11 64-bit
