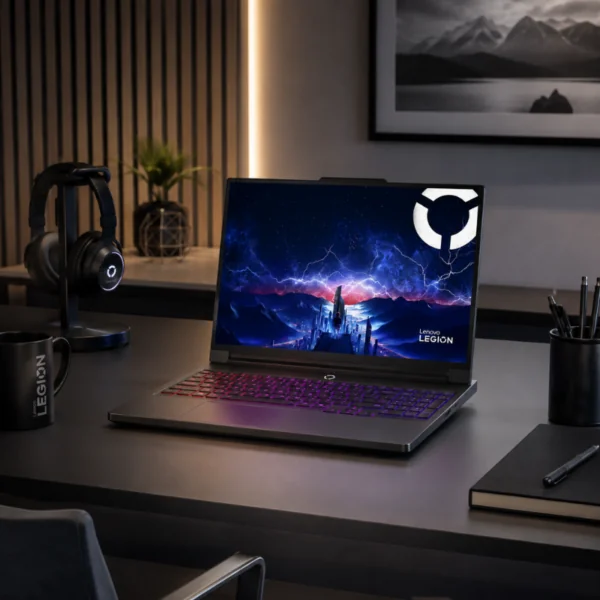

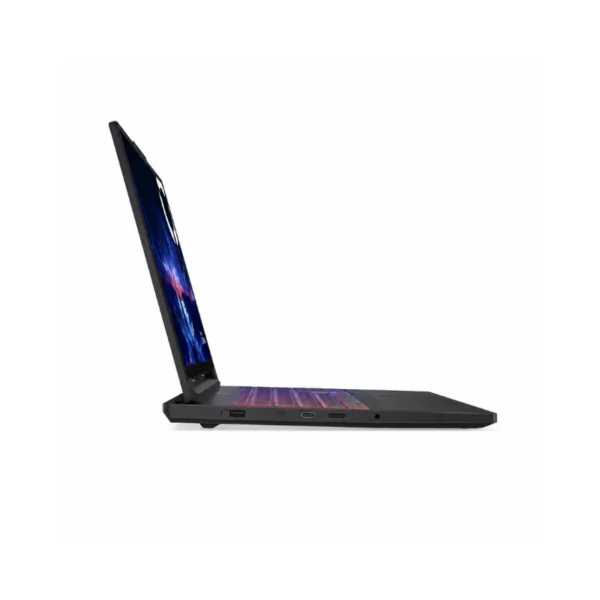

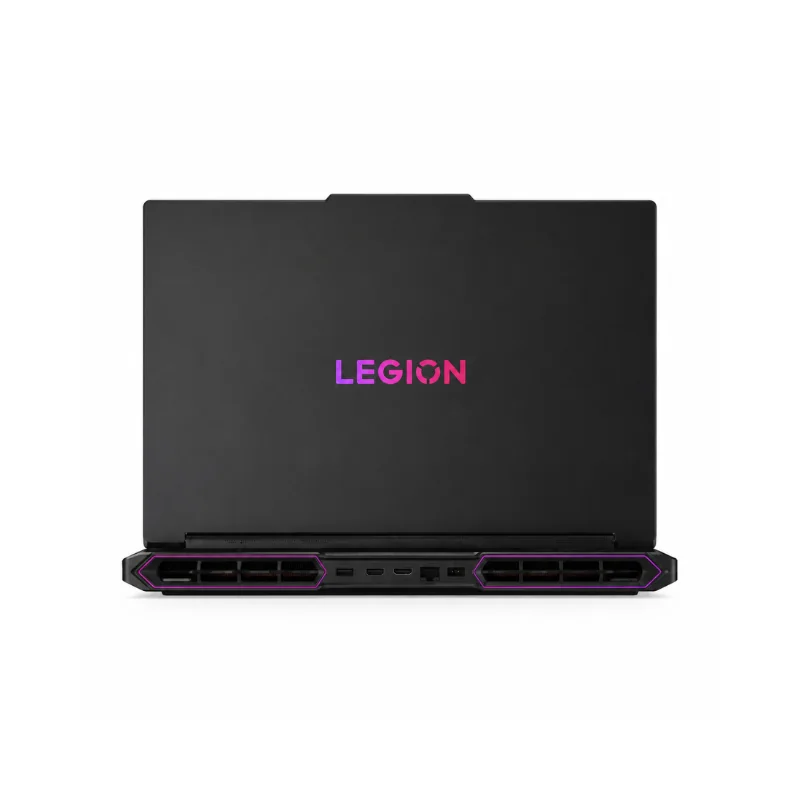

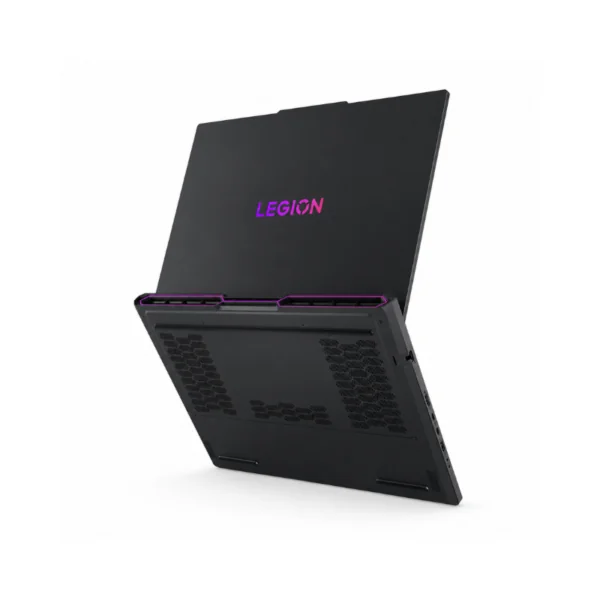

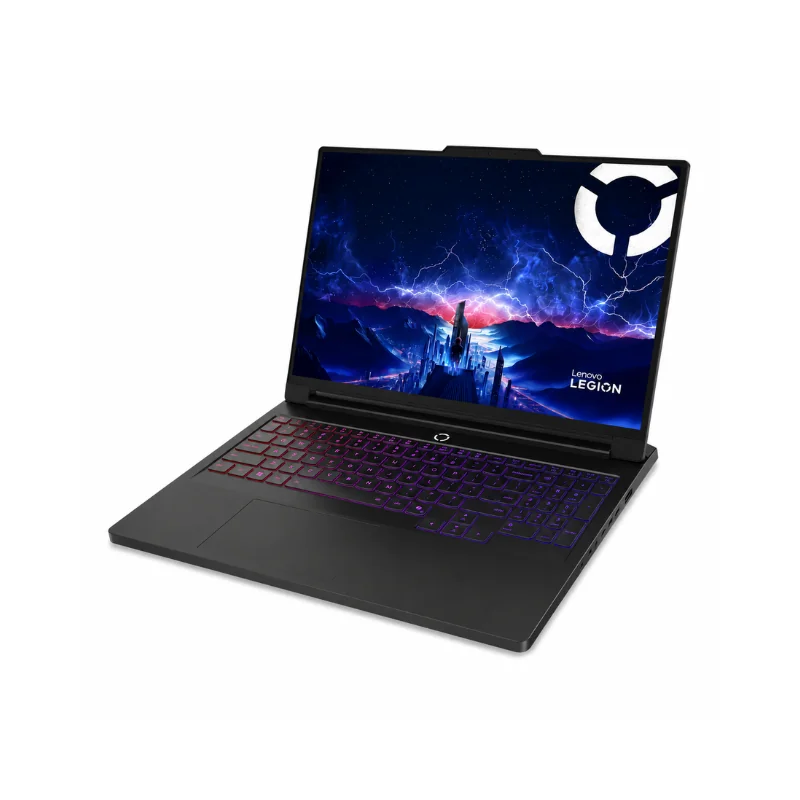

Device Type: 16-inch AI-Powered Gaming Laptop
Part Number/SKU: 83F5 Series (Configuration Dependent)
Brand: Lenovo (Legion Pro 7 16IAX10H / Legion Pro 7i Gen 10)
Processor: Intel® Core™ Ultra 9 275HX (24 Cores: 8P + 16E / 24 Threads, Max Turbo up to 5.4 GHz, 36 MB Intel® Smart Cache)
AI Engine: Integrated Intel® AI Boost NPU (Up to 13 TOPS); Lenovo AI Engine+ with LA3 AI Chip
Graphics: NVIDIA® GeForce® RTX™ 5080 16GB GDDR7, Boost Clock 2287 MHz, TGP 175W, 1334 AI TOPS
Chipset: Intel® HM870
Memory: 64 GB DDR5-5600 (2× 32 GB CSODIMM, Dual-Channel) — Note: Official PSREF lists DDR5-6400 as the maximum supported speed; actual configured speed may vary
Memory Slots: Two DDR5 CSODIMM Slots; Max Memory: Up to 64 GB DDR5-6400
Storage: 1 TB SSD M.2 2242 PCIe® 4.0x4 NVMe®
Storage Slots: Two M.2 Slots — One M.2 2280 PCIe® 5.0 x4 + One M.2 2280 PCIe® 4.0 x4; Max Storage: Up to 2× M.2 SSD (2242 up to 1TB, 2280 up to 2TB)
Display: 16″ WQXGA (2560 × 1600) OLED, 240 Hz, Glossy, 500 nits (Typical) / 1100 nits (Peak), 100% DCI-P3, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, Flicker Free, Factory Color Calibration, 92% AAR
Touchscreen: No
Camera: 5.0 MP with E-Shutter
Operating System: Windows 11 Home
Keyboard: Per-Key RGB Backlit
Touchpad: Buttonless Mylar® Surface Multi-Touch (75 × 120 mm)
Standard Ports:- 2× USB-A (USB 5Gbps / USB 3.2 Gen 1)
- 1× USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
- 1× USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65–100W & DisplayPort™ 2.1
- 1× Thunderbolt™ 4 / USB4® 40Gbps (Data Transfer & DisplayPort™ 2.1)
- 1× HDMI® 2.1 (Up to 8K/60Hz)
- 1× Headphone / Microphone Combo Jack (3.5mm)
- 1× Ethernet (RJ-45, 2.5GbE)
- 1× Slim Tip Power Connector
Wireless Connectivity: Wi-Fi® 7, 802.11be 2×2 + Bluetooth 5.4
Ethernet: 2.5GbE (RJ-45)
Audio: 4 Stereo Speakers (2W × 2 Woofers + 2W × 2 Tweeters), Optimized with Nahimic Audio, Smart Amplifier (AMP)
Microphone: 2× Array
Battery: 99.9Wh
Power Adapter: 400W Slim Tip (3-Pin)
Dimensions (W×D×H): 364.38 × 275.94 × 21.9–26.65 mm
Weight: Starting at 2.57 kg
Case Color: Eclipse Black
Case Material: Aluminium (Top & Bottom), Anodizing Sandblasting Surface Treatment
Key Specs: Lenovo Legion Pro 7 16IAX10H, Intel Core Ultra 9 275HX (24C/24T, up to 5.4GHz), NVIDIA GeForce RTX 5080 16GB GDDR7 (175W TGP, 1334 AI TOPS), 64GB DDR5 (2×32GB), 1TB PCIe 4.0 NVMe SSD, 16″ WQXGA OLED 240Hz (500/1100 nits, DisplayHDR True Black 1000, G-SYNC), Windows 11 Home, Per-Key RGB Backlit Keyboard, 5MP Camera with E-Shutter, Wi-Fi 7 + BT 5.4, Thunderbolt 4, HDMI 2.1 (8K/60Hz), 2.5GbE RJ-45, 99.9Wh Battery, 400W Slim Tip Adapter, Eclipse Black, 2.57kg, 1-Year Warranty
Usage: High-Performance Gaming, AI-Driven Workloads, Content Creation (4K Video Editing, 3D Rendering), VR/AR Development, Machine Learning & Data Science, Competitive Esports, Professional Streaming, Desktop Replacement for Power Users
