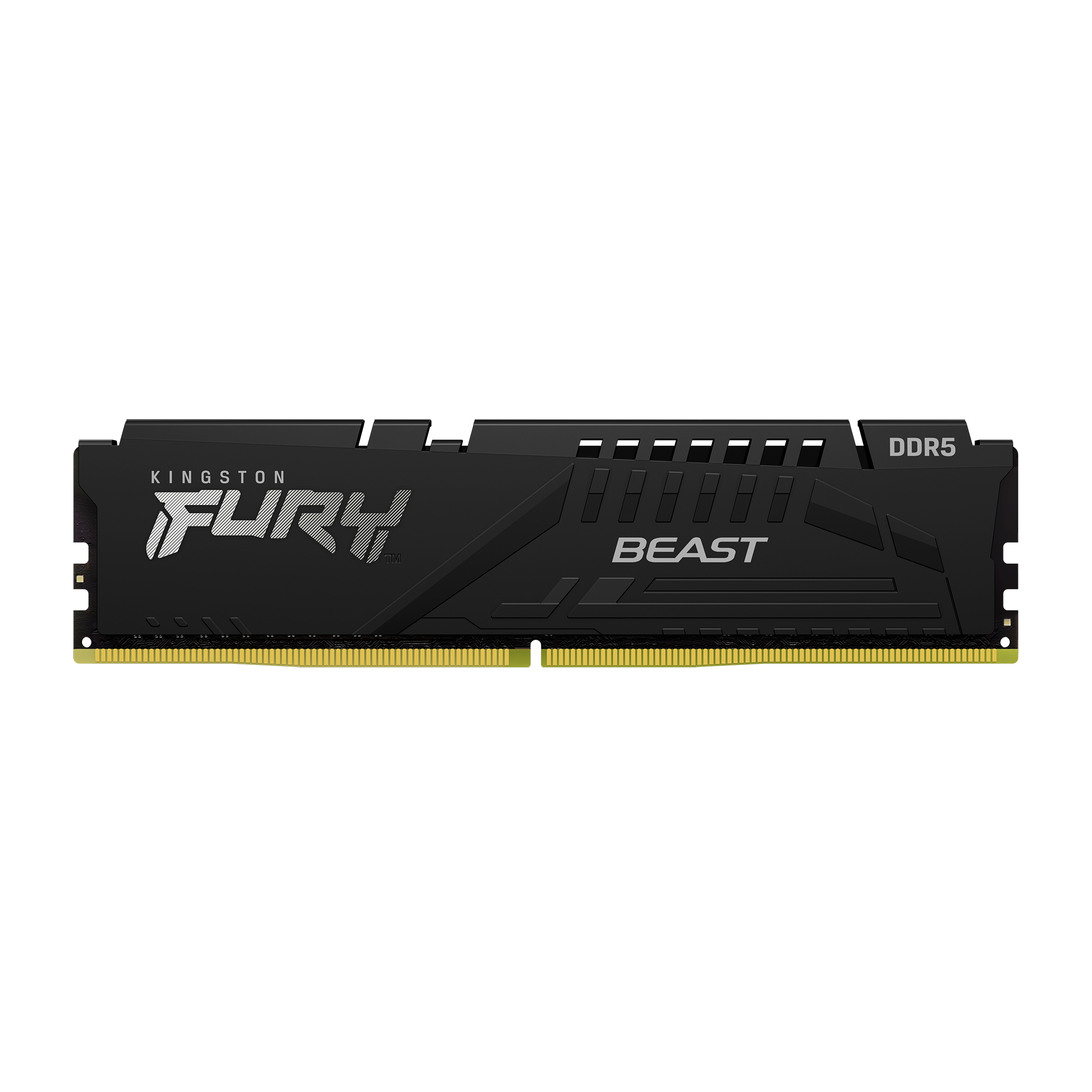

Device Type: DDR5 Desktop Memory Module (U-DIMM)
Part Number/SKU: KF560C36BBE-8
Brand: Kingston (FURY Beast Series)
Memory Type: DDR5 SDRAM
Capacity: 8GB (Single Module, 1x8GB)
Frequency: 6000 MT/s (PC5-48000)
Memory Profile: DDR5-6000 CL36-38-38 @ 1.35V
Voltage: 1.35V
Pin Count: 288-pin
Rank & Density: 1RX16 (Single Rank, x16), 16Gbit DRAM density
Buffering: Non-ECC Unbuffered DIMM (with on-die ECC for stability)
Overclocking Support:- AMD EXPO: Yes — Certified. EXPO Profile #0: DDR5-6000 CL36-38-38 @ 1.35V
- Intel XMP 3.0: Yes — Certified
Key Features:- On-Die ECC (ODECC): Built-in error correction for improved stability at high speeds
- PMIC (Power Management IC): Integrated power management on the module itself
- Dual 32-bit Sub-channels: DDR5 architecture for greater efficiency
- Black Heat Spreader: Low-profile aluminum heat spreader, no RGB lighting
- Plug N Play: Automatically runs at 4800 MT/s (JEDEC) before enabling the overclock profile
Physical Specifications:- Dimensions: 133.35 × 34.9 × 6.62 mm
- Operating Temperature: 0°C to 85°C
- Heat Spreader: Black aluminum
Warranty: Limited Lifetime Warranty
Key Specs: Kingston FURY Beast KF560C36BBE-8, 8GB DDR5-6000 (PC5-48000), CL36-38-38 @ 1.35V, Single Module U-DIMM, 288-pin, Non-ECC Unbuffered with On-Die ECC, AMD EXPO & Intel XMP 3.0 Certified, PMIC, Dual 32-bit Sub-channels, Black Heat Spreader (No RGB), Limited Lifetime Warranty
Usage: Next-Gen Gaming PCs (AMD Ryzen 7000/9000 & Intel 12th–14th Gen Platforms), Content Creation & 3D Rendering Workstations, High-Performance Desktop Builds, Memory Upgrades for DDR5-Compatible Motherboards
