Datasheet

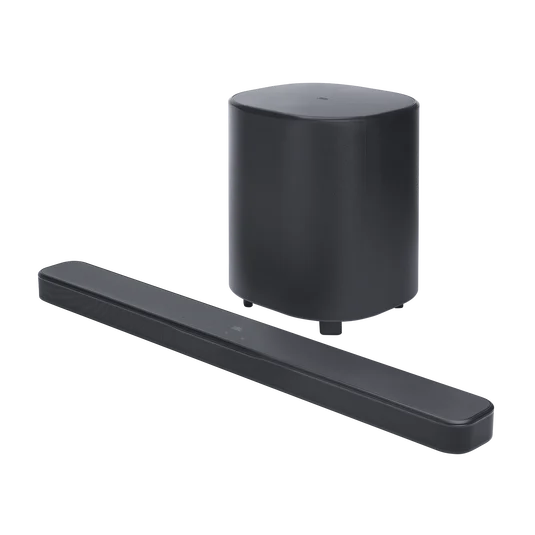

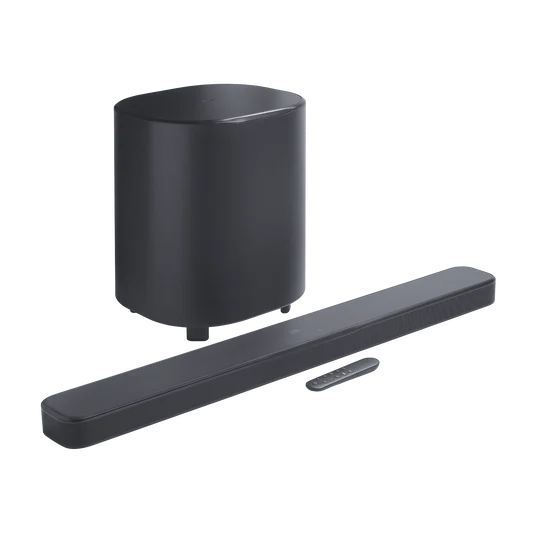

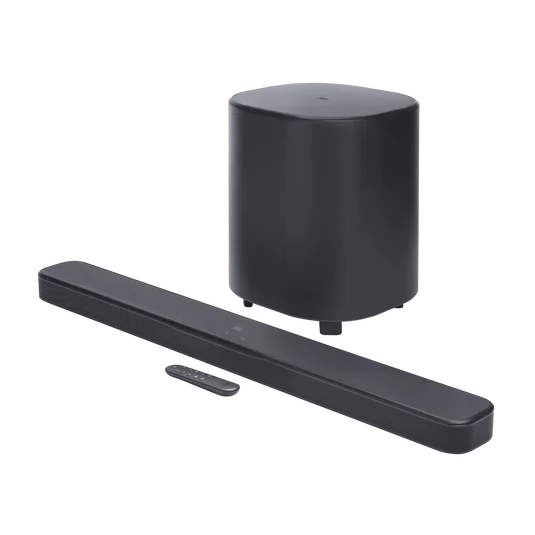

Device Type: 5.1 Channel Soundbar System with Wireless Subwoofer

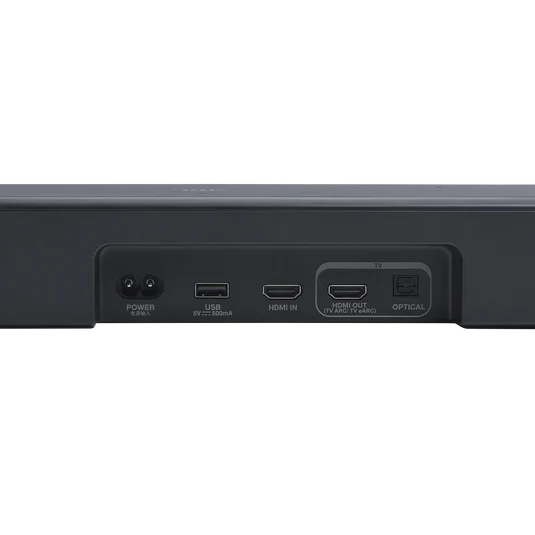

Video Output: 1x HDMI Out (eARC), 1x HDMI In, 4K Dolby Vision Passthrough, HDCP 2.3
Data Ports: 1x USB Type-A (5V/0.5A, Service/Playback), 1x Optical Audio In
Audio Output: 750W Total Max Power (Soundbar: 450W, Subwoofer: 300W)
Sound Technology: Dolby Atmos, DTS Virtual:X, MultiBeam™ 3.0, PureVoice 2.0, SmartDetails
Speaker Configuration: Soundbar: 5x (42x80)mm Racetrack Drivers + 4x 0.75" Tweeters; Subwoofer: 10" (260mm) Driver
Connectivity: Bluetooth 5.3, Wi-Fi (2.4GHz/5GHz), AirPlay, Google Cast, Spotify Connect, Tidal Connect, Roon Ready
Frequency Response: 40Hz – 20kHz (-6dB)
Key Specs: JBL Bar 500MK2, 750W Max Output, 10" Wireless Subwoofer, Dolby Atmos, MultiBeam™ 3.0, PureVoice 2.0, HDMI eARC with 4K Dolby Vision, Bluetooth 5.3, Wi-Fi, JBL One App
Usage: Home Theater, Movie & Music Entertainment, Gaming, TV Audio Upgrade
Physical Specs:- Soundbar Dimensions: 940 x 50.5 x 104 mm (37" x 2.0" x 4.1")
- Subwoofer Dimensions: 325 x 400 x 325 mm (12.8" x 15.7" x 12.8")
- Soundbar Weight: 2.9 kg (6.5 lbs)
- Subwoofer Weight: 8.1 kg (17.8 lbs)
