KSh 13,530(KSh 15,695 Incl VAT)
Datasheet

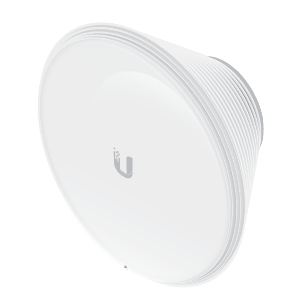

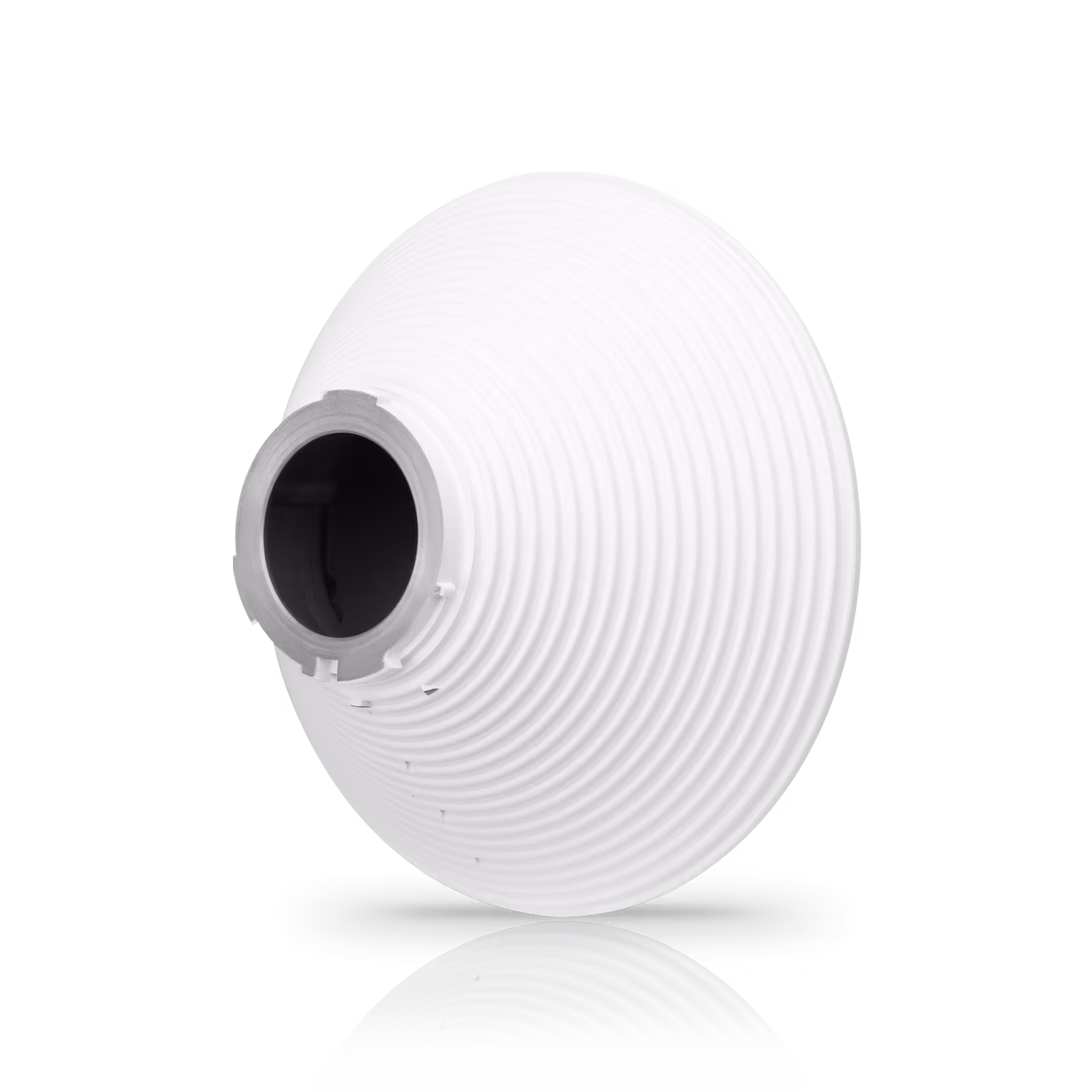

Device Type: 5 GHz Interchangeable Horn Antenna (90° Beamwidth)
Model/Part Number: Ubiquiti Horn-5-90
Video Output: N/A (Antenna Only – Requires Compatible Radio)
Data Ports: N/A (Antenna Only)
Frequency Range: 5.15 – 5.85 GHz
Gain: 13 dBi
Beamwidth: 90° HPOL / 90° VPOL (Horizontal/Vertical); 45° Elevation
Polarization: Dual-Linear
Cross-Polarization Isolation: 17 dB
Max VSWR: 2:1
Compatible Radios: Ubiquiti IsoStation, PrismStation, airFiber AF-LTU
Dimensions & Weight: 152.1 x 186.8 x 113.2 mm; 920 g
Wind Survivability: 200 km/h (125 mph)
Key Specs: Ubiquiti Horn-5-90, 5GHz Horn Antenna, 90° Beamwidth, 13dBi Gain, Dual-Linear Polarization, 17dB Cross-Pol Isolation, Interchangeable with PrismStation/IsoStation, Attenuated Side Lobes, Low Back Radiation, NDAA Compliant
Usage: Point-to-MultiPoint (PtMP) Sector Coverage, High-Density Co-Location Deployments, Urban/Noisy RF Environments, WISP Base Station Antenna (Requires Compatible Ubiquiti Radio)
