Port Configuration & Performance

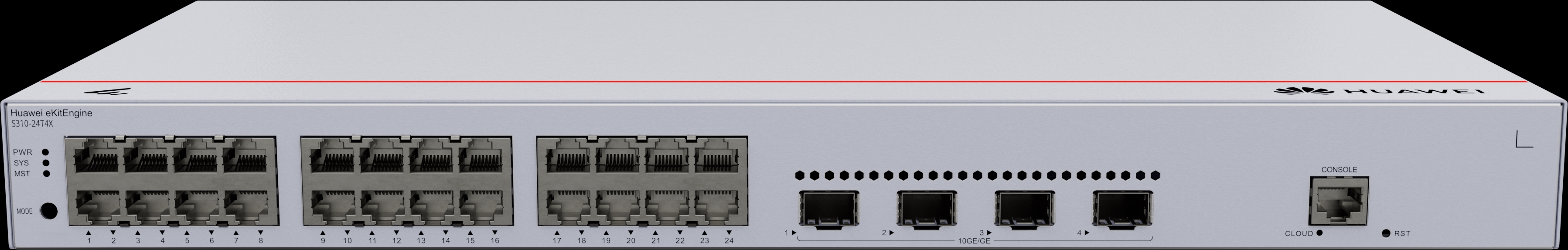

- Fixed Ports: It offers 24 × 10/100/1000BASE-T (RJ45) downlink ports for connecting devices like PCs, printers, or access points, alongside 4 × 10GE SFP+ uplink ports for high-speed fiber connections to the core network or for stacking.
- Switching Capacity: The switch provides a 128 Gbit/s switching capacity with a packet forwarding rate of 95 Mpps, ensuring it can handle high-volume traffic without bottlenecks.
- Power Supply: As you noted, it features a built-in AC power module, which means you don't need to purchase a separate power adapter. It supports an input voltage range of 90 V AC to 264 V AC.
Management & Security Features
- Layer 3 Capability: It supports Layer 3 switching with routing capability, allowing for more flexible network segmentation beyond basic Layer 2 switching.
- Intelligent Stacking (iStack): You can stack up to 4 switches of the same series to form a single logical device. This simplifies management and improves reliability through redundancy.
- Security Controls: It includes comprehensive security features such as DHCP snooping, 802.1X authentication, MAC address authentication, and ARP attack defense to protect the network from unauthorized access and common threats.
- Management Options: The switch can be managed via SNMP, CLI, web UI, or SSHv2, and also supports cloud management for remote configuration and monitoring.
Physical & Environmental Specifications
- Form Factor: It is a 1U rack-mountable device with a metal chassis, making it durable and suitable for standard network racks.
- Cooling & Noise: It uses air cooling with intelligent fan speed adjustment. The airflow goes from left and front to right. The sound pressure level at normal temperature is around 35 dB(A).
- Operating Environment: It operates between -5°C to +50°C (at altitudes up to 1800m) and supports a relative humidity of 5% to 95% (non-condensing).
