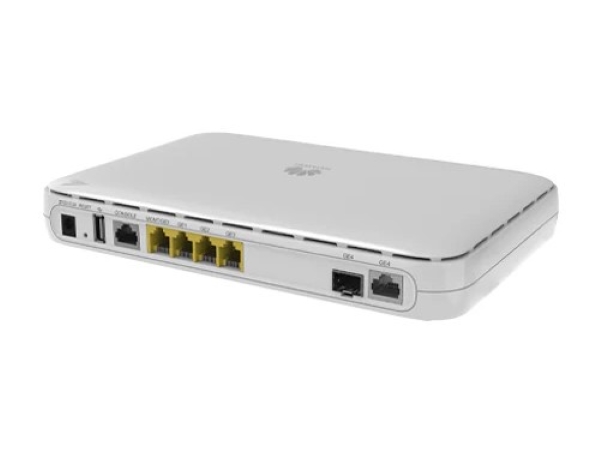

Huawei NetEngine AR303 Enterprise Router

• Datasheet
• Forwarding Performance: 1 Mpps (million packets per second) .
• Recommended Capacity: Supports up to 200 terminals (users/devices) .
• WAN Port: 1 x GE Combo (Gigabit Ethernet, configurable for copper or fiber) .
• LAN Ports: 4 x GE electrical ports (can be reconfigured as additional WAN ports for load balancing) .
• Memory/Storage: 1 GB RAM and 1 GB Flash .
• Power Consumption: 9 W typical, 12 W maximum .
• Dimensions: 38 mm x 240 mm x 161.5 mm .

🔒 Software & Features

• Operating System: Runs Huawei's VRP (Versatile Routing Platform) for mature and stable operation .
• VPN Support: Supports IPsec, GRE, DSVPN, L2TP, and L2TPv3 for secure remote connections .
• Routing Protocols: Includes OSPF, RIP, BGP, and IS-IS, with IPv4/IPv6 dual-stack support .
• Security: Built-in firewall, ACL, MAC authentication, URL filtering, and DoS attack prevention .
• Management: Features a console port for local management and supports USB-based deployment .

🏗️ Design & Reliability

• Fanless: Silent operation with no moving parts, ideal for office environments .
• Environmental Protection: Huawei states its failure rate due to lightning strikes is only 3% of the industry average .
