KSh 14,360(KSh 16,658 Incl VAT)

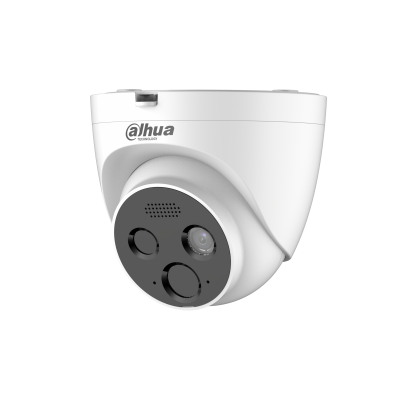

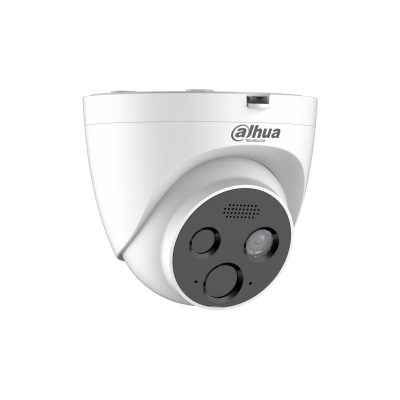

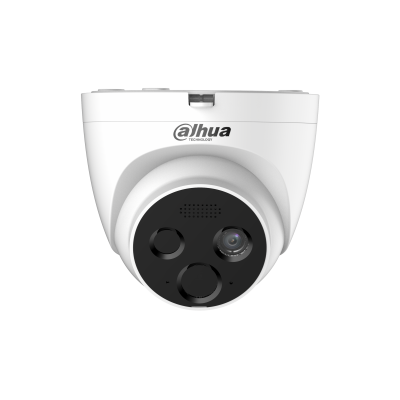

Device Type: Dual-Lens Flame Detection Network Camera (Thermal + Visible) – Eyeball Type
Model / SKU: DHI-HY-FT431LDP (family variants include DHI-HY-FT431LDP-TD1F4-MB)
Thermal Imaging: Vanadium oxide uncooled focal plane detector; 120 (H) × 90 (V) effective pixels; 17 μm pixel pitch; 8–14 μm spectral range; NETD < 60 mK (@f/1.0, 300K); 1.2 mm fixed-focal lens; 90° (H) × 67.5° (V) field of view; close focus 0.5 m; F1.1 aperture
Visible Camera: 1/2.7" 4MP Progressive Scan CMOS; max resolution 2688 (H) × 1520 (V); 4 mm fixed-focal lens; 85° (H) × 44° (V) × 99° (D) field of view; F1.6 aperture; min. illumination Color 0.0052 lux / B&W 0.0028 lux / 0 lux with IR; built-in IR LED with up to 15 m illumination distance
Flame Detection: Detects a 10 cm × 10 cm flame at up to 10 m distance; supports flame tracking and positioning; fire detection alarm, cold/hot spot alarm, and industrial temperature detection alarm functions
Temperature Detection: Range –10°C to +200°C (+14°F to +392°F); accuracy ±5°C / ±5%; supports real-time point temperature detection, and point/line/polygon rules for simultaneous temperature monitoring
Audio & Alarm: Built-in microphone and high-volume speaker; 70 dB alarm sound at ≥1 m (A-weighted); supports two-way talk/remote intercom; sound and light alarm linkage; 1-channel alarm input (3–5V DC, 5 mA) and 1-channel alarm output (300 mA 12V DC); alarm linkage via trigger switch output, email, or snapshot
Video & Network: Compression: H.265; H.264; H.264H; H.264B; MJPEG. Frame rate: 1–25 fps adjustable (main and sub stream). Network port: 1× RJ-45 10M/100M Ethernet with PoE. Protocols: ONVIF, GB/T28181, CGI, Imou; supports HTTPS, TCP, RTSP, DHCP, DNS, DDNS, SNMP, QoS, UPnP, NTP. Storage: FTP, NAS, SFTP. Up to 10 users/hosts. MicroSD card slot not specified in the reviewed datasheets — confirm with the supplier if local storage is required
Power & Consumption: DC 12V (±30%) or PoE; basic consumption 1.8 W, max 3 W
Physical & Environmental: Dimensions φ109.9 mm × 90.1 mm (φ4.32" × 3.54"); net weight 0.35 kg (0.78 lb). Protection: IP66. Operating temperature –10°C to +55°C (+14°F to +131°F); humidity ≤95%; storage –20°C to +70°C. Installation: wall, ceiling, or vertical pole mount. Certifications: CE, FCC
Key Specs: Dahua DHI-HY-FT431LDP dual-lens flame detection camera, uncooled VOx thermal detector (120×90) + 4MP visible CMOS (2688×1520), 10 m flame detection (10 cm × 10 cm target), –10°C to +200°C temperature measurement, H.265, built-in MIC/speaker (70 dB alarm), two-way talk, 1-in/1-out alarm I/O, DC12V/PoE, IP66, ONVIF compliant, eyeball form factor
Usage: Fire detection and video surveillance in small-to-medium commercial and industrial spaces: small warehouses, garages, garbage rooms, libraries and archive rooms, shopping malls, residential communities, and other areas where both early flame detection and visual verification are required. The dual-lens design allows thermal-based flame identification while the visible camera provides confirmation and detailed imagery for remote monitoring.
