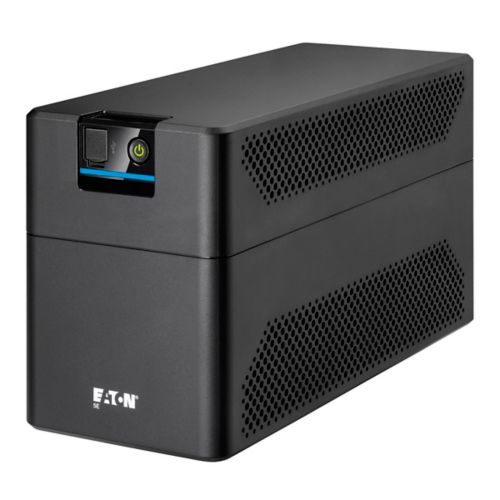

Device Type: Line-Interactive Tower UPS
Brand: Eaton
Series: 5E Gen2
Model / Catalog Number: 5E1600UB (Stock Code: 61UPS0013)
Capacity: 1600 VA / 900 W
- Topology: Line-Interactive with Automatic Voltage Regulation (AVR)

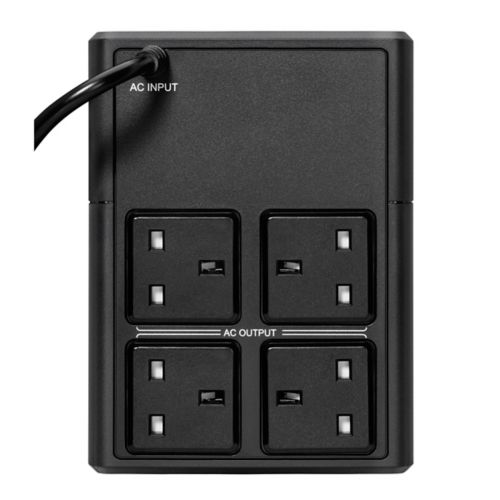

- Input Connection: BS (UK 3-Pin)
- Output Receptacles: (4) BS (UK 3-Pin)
- Form Factor: Tower (Free Standing)
- Dimensions (W x D x H): 133 mm x 330 mm x 180 mm
- Weight: 9 kg
- Input Voltage Range: 140–300 V
- Output Voltage: 230 V (195–257 V range)
- Nominal Frequency: 50/60 Hz (45–63 Hz range)
- Battery Type: Sealed Lead-Acid (VRLA), 12 V / 7 Ah
- Battery Quantity: 2
- Battery Management: Automatic battery test, deep-discharge protection, cold-start capable
- Communication: USB port (HID-compliant) for automatic integration with Windows/Mac OS/Linux
- Software Compatibility: Eaton UPS Companion (safe system shutdown, energy usage metering, configuration)
- User Interface: LEDs
- Operating Temperature: 0°C to 40°C
- Relative Humidity: 0–90% non-condensing
- Efficiency at Max Load: 95%
- Compliance: IEC/EN 62040-1, IEC/EN 62040-2, CE, UKCA
