KSh 32,190(KSh 37,340 Incl VAT)

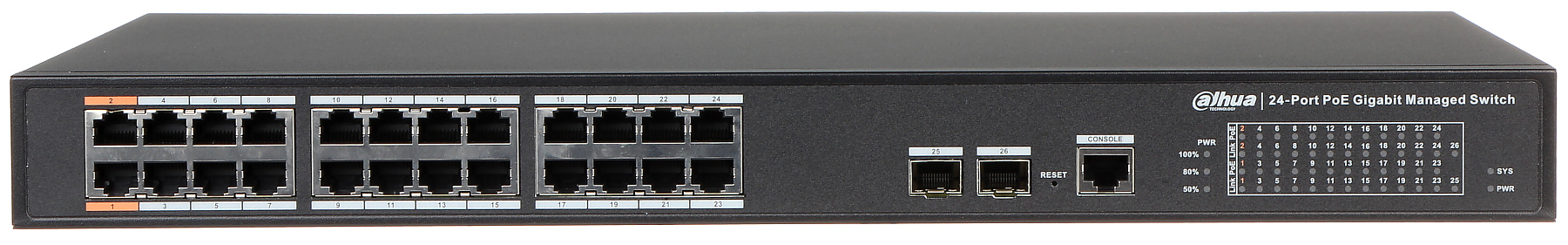

Device Type: 24-Port Layer 2 Managed Gigabit PoE Switch
Model / Part Number: Dahua DHI-PFS4226-24GT-240
Total Ports: 24 × RJ-45 10/100/1000 Mbps (PoE) + 2 × SFP 100/1000 Mbps (Combo Uplink)
PoE Standards: IEEE802.3af, IEEE802.3at, Hi-PoE -2
PoE Power Budget: 240W Total (Ports 1-2: up to 60W each; Ports 3-24: up to 30W each) -2-6
Switching Capacity: 52 Gbps -2-6
Packet Forwarding Rate: 38.688 Mpps -2-6
Packet Buffer Memory: 4 Mb -2-6
MAC Table Size: 8K -2-6
Layer: Layer 2 -2-8
VLAN: 802.1Q Standard VLAN -2-6
Spanning Tree: STP/RSTP/MSTP -2-8
Link Aggregation: Manual / LACP -2-6
Multicast: IGMP Snooping v1/v2/v3 -2-6
DHCP: Client/Server, DHCP Snooping -2-6
Security: IEEE802.1X, SNMP v1/v2c/v3, HTTPS, SSH/SSL, ACL, Loop Protection -2-8
QoS: 8 Output Queues per Port, Port Shaping, DSCP-Based QoS -2-6
Console Port: 1 × RS232 in RJ45 -2
Power Supply: AC 100–240V, 50/60Hz -2-6
Power Consumption: Idling: 20W; Full Load: 240W -7
Lightning Protection: Common Mode 2KV, Differential Mode 1KV -2-6
Operating Temperature: –10°C to +55°C -2-6
Operating Humidity: 5%–95% -2-6
Dimensions: 440 mm × 300 mm × 44 mm -2-6
Key Specs: Dahua DHI-PFS4226-24GT-240, 24-Port Layer 2 Managed Gigabit PoE Switch, 240W Budget, Hi-PoE 60W (Ports 1-2), 2 Gigabit SFP Uplink, VLAN, STP/RSTP/MSTP, SNMP, IEEE802.1X, 52Gbps
Usage: IP Camera Surveillance Systems, PTZ Camera Deployment, Enterprise Networks, and Commercial Security Systems
