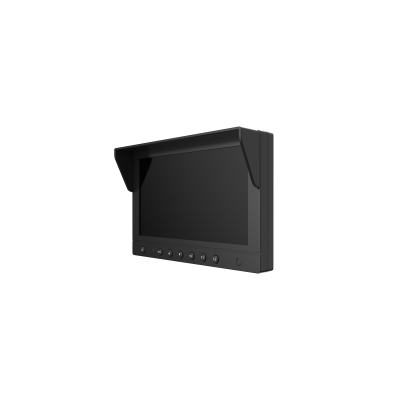

Device Type: Mobile 7-inch LED Monitor (Vehicle-Mounted Display for Mobile DVR/MDVR Systems)
Model / SKU: DHI-MLCDF7-E (also listed as MLCDF7-E / DH-MLCDF7-E; the DAE-MLCDF7-E is the touchscreen variant)
Brand: Dahua
Display:- Screen Size: 7 inch Widescreen TFT-LCD
- Resolution: 1024 × 600 (1024P × 600P)
- Backlight: LED
- Brightness: Self-adaptive / Manually Set
- Touch Screen: Not Supported (DAE-MLCDF7-E variant supports touch)
- Mirror Setting: Supported
Video & Audio:- Video Input: 1 Channel (CVBS)
- Audio Input: 1 Channel, Aviation Connector
- Audio Output: 1 Channel, Speaker Output
On-Screen Controls (Physical Buttons):- Screen On/Off
- MENU (Brightness Setting, Version Info)
- Volume Up / Volume Down
- Mirror Setting
- F1 & F2 (Reserved)
Data Ports:- Video Input: 1 × CVBS
- Audio Input: 1 × Aviation Connector
- Audio Output: 1 × Speaker
- Connector Type: M12 A-coding
Power Supply:- Working Voltage: 12V DC
- Power Consumption: ≤6W
- Protection Circuit: Supports +/- Reverse Protection
Physical:- Installation Method: Bracket Mounting
- Product Dimensions (W×H×D): 181.4 mm × 121.6 mm × 27.7 mm (7.14" × 4.79" × 1.09")
- Cable Length: 1 m
- Net Weight: 450 g (0.99 lb)
Environmental:- Operating Temperature: –30°C to +70°C (–22°F to +158°F)
- Operating Humidity: 0%–95% RH (Non-Condensing)
Key Features: 7-inch Widescreen TFT-LCD Display with LED Backlight; 1024×600 High Resolution; Self-Adaptive Brightness Control; Mirror Function for Image Reversal; Built-in Speaker for Audio Output; M12 A-Coding Aviation Connector for Reliable Mobile Connection; +/- Reverse Protection Circuit; Compact and Lightweight Design (450g); Bracket Mounting for Vehicle Installation; Designed for Mobile DVR/MDVR Systems
Key Specs: Dahua DHI-MLCDF7-E Mobile 7-inch LED Monitor, 7" TFT-LCD, 1024×600 Resolution, LED Backlight, Self-Adaptive Brightness, 1× CVBS Video Input, 1× Audio Input (Aviation Connector), 1× Speaker Output, M12 A-Coding Connector, 12V DC (≤6W), +/- Reverse Protection, Bracket Mounting, 181.4×121.6×27.7mm, 450g, 1m Cable, –30°C to +70°C Operating Temperature, 0–95% RH
Usage: Mobile Surveillance Systems, Fleet Vehicles (Trucks, Buses, Vans), Emergency Vehicles (Ambulances, Police Cars), Construction & Agricultural Machinery, Taxis & Ride-Hailing Vehicles, and Any Vehicle-Mounted Installation Requiring a Compact, Reliable Display for Mobile DVR (MDVR) Video Monitoring
