KSh 3,580(KSh 4,153 Incl VAT)

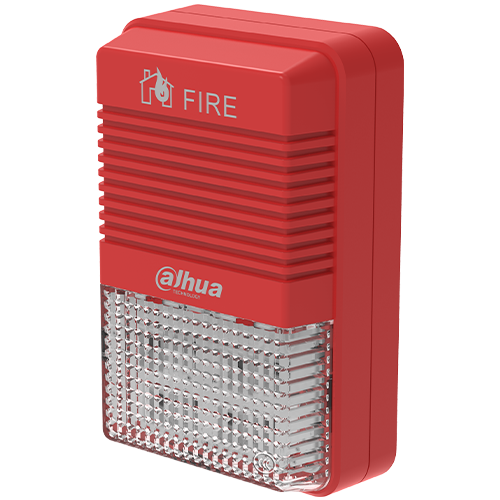

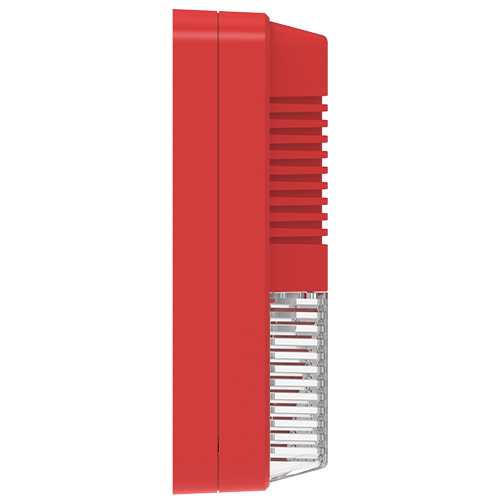

Device Type: Addressable Sounder Strobe (Audible & Visual Alarm Device)
Model / Part Number: Dahua DHI-HY-1500
Working Voltage: DC 24V -2-4
Monitoring Current: ≤ 120μA -4-6
Maximum Operating Current: ≤ 7mA -2-4
Alarm Volume: 75 dB–115 dB @ 3m (A) -2-6
Flash Rate: 1.5Hz–2.0Hz -2-6
Modulation Cycle: 4 s–5 s -2-6
Wiring: Two-Wire, Polarity-Free -2-5
Addressing Method: Electrical Encoder -2-6
Address Range: 1–254 -2-4
Communication Distance: ≤ 1500 m (4921.26 ft) -2-6
Operating Temperature: –10°C to +55°C -2-4
Storage Temperature: –20°C to +65°C -2-4
Operating Humidity: ≤ 95% RH (Non-Condensing) -2-6
Color: Shell: Red / Lampshade: Clear White -2-4
Dimensions: 125 mm × 80 mm × 40 mm -2-6
Weight (with base): 118 g -2-4
Compliance Standard: EN54-3, EN54-23 -2-6
Key Specs: Dahua DHI-HY-1500, Addressable Sounder Strobe, Two-Wire Polar-Free, 24V DC, 1-254 Address, 1500m Distance, 75-115dB @ 3m, EN54-3/23 Certified
Usage: Hotels, Teaching Buildings, Office Buildings, Shopping Malls, Hospitals, Factories, and any facility requiring audible and visual fire alarm notification
