KSh 1,430(KSh 1,659 Incl VAT)

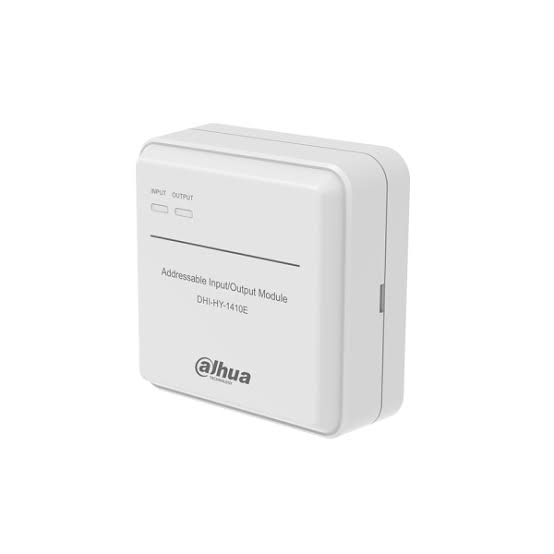

Device Type: Addressable Input/Output Module
Model / Part Number: Dahua DHI-HY-1410
Working Voltage: 24V DC (16V–28V) -8-18
Monitoring Current: ≤ 150μA -2-8
Operating Current: ≤ 9mA -8-14
Output Contact Capacity: Dry Contact, DC 30V / 1A–2A -14-18
Wiring: Two-Wire, Polarity-Free -2-5
Addressing Method: Electrical Encoder -2-4
Address Range: 1–254 -2-5
Communication Distance: ≤ 1500 m (4921.26 ft) -2-4
Operating Temperature: –10°C to +55°C -2-5
Storage Temperature: –20°C to +65°C -2-5
Operating Humidity: ≤ 95% RH (no condensation) -2-5
Color: White -2-5
Dimensions (with base): 90 mm × 90 mm × 37 mm -2-5
Weight (with base): 95g – 120g -2-14
Compliance Standard: EN54-18, GB16806-2006 -8-14-18
Key Specs: Dahua DHI-HY-1410, Addressable Input/Output Module, Two-Wire Polar-Free, 24V DC, 1-254 Address, 1500m Distance, Dry Contact Output, EN54-18 Certified
Usage: Fire Damper Control, Elevator Homing, Smoke Exhaust Ventilation, Fire Pump Activation, Shunt Release Control, Building Automation Integration -9-18
