KSh 2,150(KSh 2,494 Incl VAT)

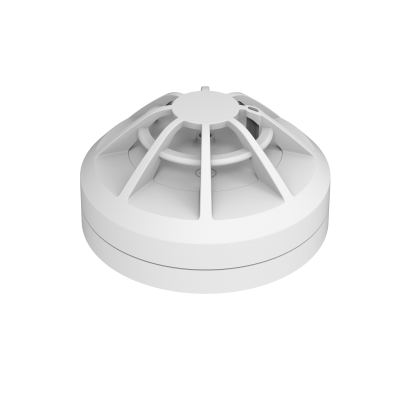

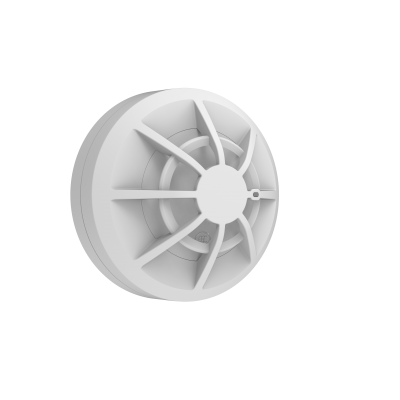

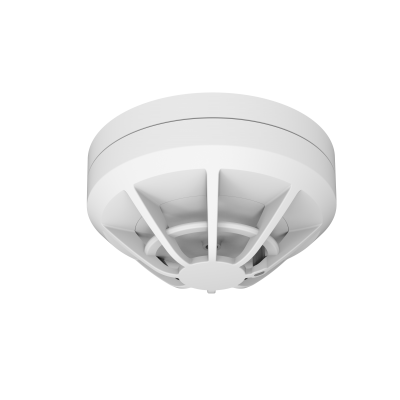

Device Type: Addressable Heat Detector
Model / Part Number: Dahua DHI-HY-1310
Working Voltage: 24V DC -1-5
Monitoring Current: ≤ 120μA -1-10
Maximum Operating Current: ≤ 170μA -1-10
Product Type: A2R -1-5
Alarm Threshold: 54°C to 62°C (129°F to 144°F) -1-5
Wiring: Two-Wire, Polarity-Free -1-5
Addressing Method: Electrical Encoder -1-10
Address Range: 1–254 -1-10
Communication Distance: ≤ 1500 m (4921.26 ft) -1-5
Operating Temperature: –10°C to +50°C (+14°F to +122°F) -1-10
Storage Temperature: –20°C to +65°C (–4°F to +149°F) -1-10
Operating Humidity: ≤ 95% RH (no condensation) -1-10
Color: White -1-10
Dimensions (with base): Φ 100 mm × 50 mm -1-10
Weight (with base): 81 g -1-10
Compliance Standard: EN54-5 -1-10
Key Specs: Dahua DHI-HY-1310, Addressable Heat Detector, Two-Wire Polar-free, 24V DC, 1-254 Address, 1500m Distance, A2R 54-62°C, EN54-5 Certified
Usage: Kitchens, Boiler Rooms, Workshops, Parking Garages, Technical Rooms, Storage Areas
