KSh 2,150(KSh 2,494 Incl VAT)

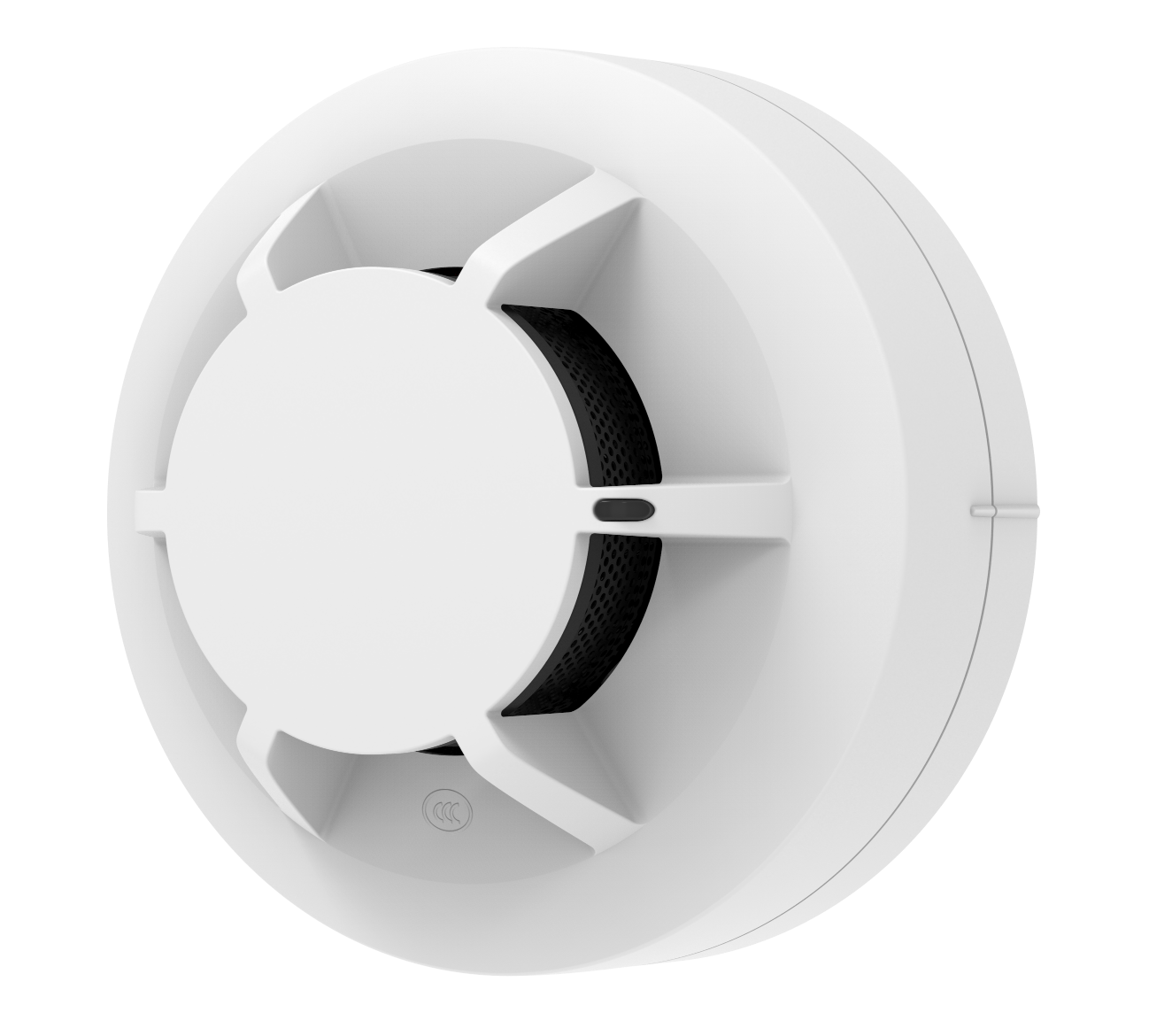

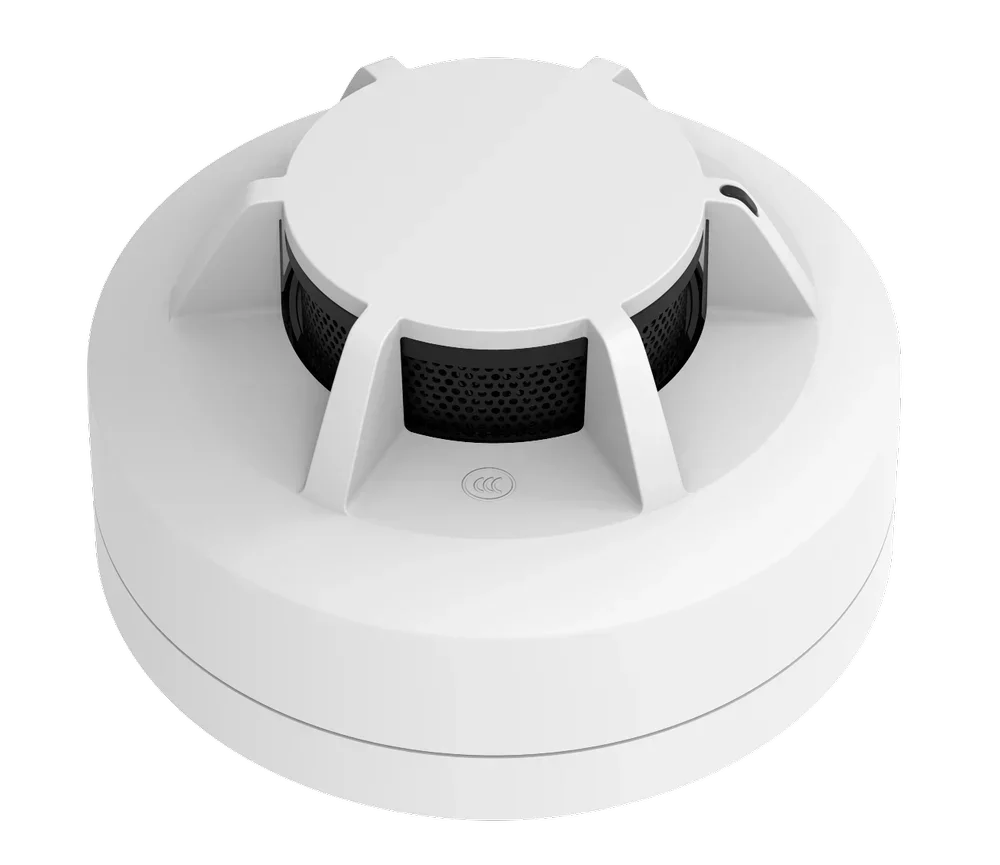

Device Type: Addressable Photoelectric Smoke Detector
Model / Part Number: Dahua DHI-HY-1301
Working Voltage: 24V DC -1-3-6
Monitoring Current: ≤ 180μA -1-3-6
Maximum Operating Current: ≤ 280μA -1-3-6
Wiring: Two-Wire, Polarity-Free -1-3-6
Addressing Method: Electrical Encoder -1-3
Address Range: 1–254 -1-3-6
Communication Distance: ≤ 1500 m (4921.26 ft) -1-3-6
Operating Temperature: –10°C to +50°C (+14°F to +122°F) -1-3-6
Storage Temperature: –20°C to +65°C (–4°F to +149°F) -1-3-6
Operating Humidity: ≤ 95% RH (no condensation) -1-3-6
Color: White -1-3-6
Dimensions (with base): Φ100 mm × 50 mm (Φ 3.00" × 1.50") -1-3-6
Weight (with base): 102 g (0.22 lb) -1-3-6
Certifications: EN54-7, GB 4715-2005 -6-12-17
Key Specs: Dahua DHI-HY-1301, Addressable Smoke Detector, Two-Wire Polar-free, 24V DC, 1-254 Address, 1500m Distance, Dual Photoelectric Chamber, EN54-7 Certified
Usage: Hotels, Teaching Buildings, Office Buildings, Computer Rooms, Communication Machine Rooms, Libraries and Archives -3-9
