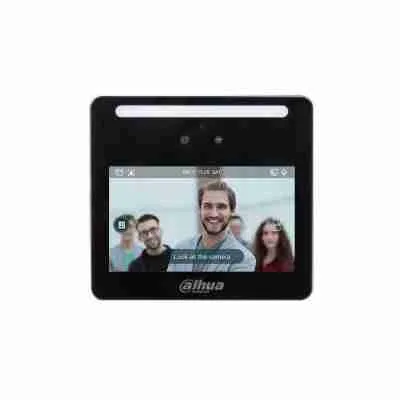

Device Type: Face Recognition Access Controller & Time Attendance Terminal (Standalone, Indoor)
Model / SKU: DHI-ASI3213G-MW (also listed as ASI3213G-MW)
Brand: Dahua
Series: FACT / ASI3 Series
Display: 4.3-inch Capacitive LCD Touchscreen; Resolution 480 (H) × 272 (V)
Camera: 2-MP Wide-Angle Dual-Lens CMOS with Auto White Fill Light & Auto IR Fill Light; Supports DWDR
Verification Methods: Face, IC Card, Password, and Combination Unlock; Supports Unlock by Period; Liveness Detection (Anti-Spoofing) Supported
Face Recognition Performance:- Distance: 0.3 m – 1.5 m (0.98 ft – 4.92 ft)
- Accuracy: 99.5% (Official Dahua)
- Comparison Speed: 0.3 s per person
Capacity:- Users: 1,500
- Faces: 1,500
- Cards: 1,500
- Passwords: 1,500
- Records: 150,000
Data Ports & Network:- Network: 1 × 10/100 Mbps Ethernet Port
- USB: 1 × USB 2.0 Port
- RS-485: 1 Port (for Peripheral Card Reader)
- Alarm Input: 1
- Alarm Linkage: Supported
- Door Lock Control: 1
- Door Status Detection: 1
- Unlock Button: 1
Access Control Functions: Anti-passback, Tamper Alarm, Duress Alarm, Door Sensor Timeout, Illegal Intrusion, Illegal Card Exceeding Threshold Alarm, First-card Unlock, Multi-card Unlock, Remote Verification; Real-time Surveillance; Web Configuration
Period / Schedule: 128 Period Lists; 128 Holiday Periods
Power Supply: DC 12V, 1.5A; Power Consumption ≤18W
Housing Material: PC + ABS
Physical: Dimensions: 116 mm × 107 mm × 22 mm
Environmental: Operating Temperature: -10°C to +55°C (+14°F to +131°F); Operating Humidity: 5%–95% RH (Non-Condensing); Indoor Use Only
Installation: Desktop and Wall Mount
Certifications: CE, FCC
Key Specs: Dahua DHI-ASI3213G-MW FACT Access Control Terminal, 4.3" Touchscreen (480×272), 2MP Dual-Lens Camera with IR & White Fill Light, Face/Card/Password/Combination Unlock, Liveness Detection, 1,500 Users / 1,500 Faces / 1,500 Cards / 150,000 Records, 0.3s Recognition Speed, 99.5% Accuracy, 128 Period Lists & Holidays, Anti-passback, Tamper & Duress Alarms, 10/100M Ethernet, USB 2.0, RS-485, DC 12V 1.5A (≤18W), PC+ABS Housing, 116×107×22mm, Indoor Desktop/Wall Mount, CE/FCC Certified
Usage: Employee Time & Attendance Tracking, Office & Business Access Control, Contactless Workforce Management, Networked Attendance Systems, and Any Indoor Environment Requiring Reliable Facial Recognition, Card, or Password-Based Access Control with Record-Keeping
