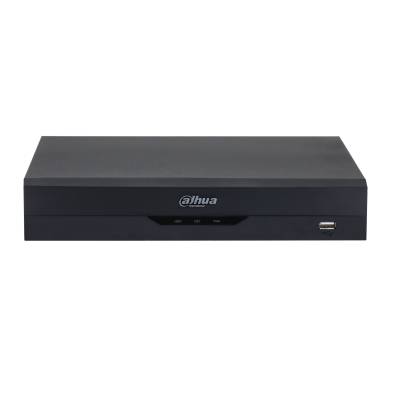

Device Type: 4-Channel Penta-brid 5MP Compact 1U 1HDD WizSense Digital Video Recorder (XVR)
Model / SKU: DH-XVR5104HS-5M-I3/T (also listed as XVR5104HS-5M-I3/T)
Brand: Dahua
Series: WizSense / 5MP Series

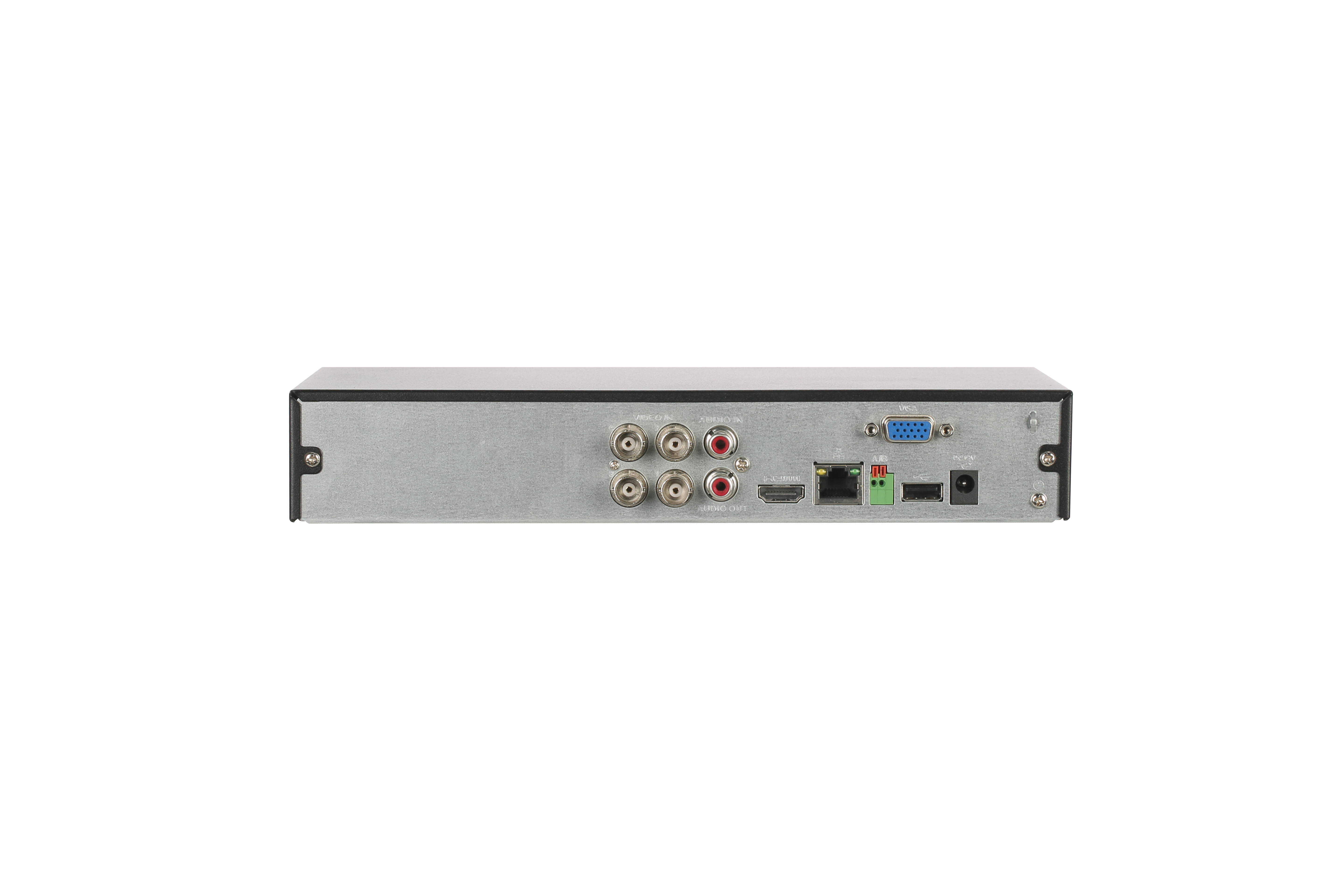

Video Input:- Analog Camera Input: 4 × BNC Ports — Supports HDCVI / AHD / TVI / CVBS auto-detect
- IP Camera Input: Up to 6 channels (2 IP channels by default + 4 channels when analog channels are converted to IP); each IP channel supports up to 6MP
Video Output: 1 × HDMI (up to 3840 × 2160 / 4K) + 1 × VGA (up to 1920 × 1080)
Encoding & Compression:- Video Compression: AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Encoding Capacity (Encode Enhancement Disabled): Main Stream: Channels 1–2 support 5M-N @ 1–25 fps, others 5M-N @ 1–12 fps; Channels 1–2 support 4M-N/1080p @ 1–25/30 fps, others 4M-N/1080p @ 1–15 fps; 1080N/720p/960H/D1/CIF @ 1–25/30 fps
- Encoding Capacity (Encode Enhancement Enabled): Main Stream: 5MP @ 1–12 fps; 5M-N/4M-N/1080p @ 1–25 fps; 1080N/720p/960H/D1/CIF @ 1–30 fps
- Video Bit Rate: 32 kbps – 6144 kbps
Two-Way Talk (Coaxial):- 4-Channel Two-Way Talk over Coaxial Cable — Allows seamless communication between the camera, client, and recorder
- Coaxial Two-Way Talk: 4-channel BNC (Coaxial Audio)
- Local & Network User Two-Way Talk: Shares the same audio input with the first channel
Audio:- Audio Input: 1-channel RCA + 4-channel BNC (Coaxial Audio)
- Audio Output: 1-channel RCA
- Audio Compression: G.711a; G.711u; PCM
- Audio Sampling: 8 kHz, 16 bit
Data Ports / Network:- Ethernet: 1 × RJ-45 (10/100/1000M)
- USB: 2 × USB (1 front USB 2.0, 1 rear USB 3.0)
- RS-485: 1 port
- Incoming Bandwidth: 32 Mbps; Recording Bandwidth: 32 Mbps; Outgoing Bandwidth: 32 Mbps
Storage: 1 × SATA Port, up to 16 TB per HDD
AI Functions (WizSense):- AcuPick: 4-channel AcuPick for analog channels — improves target retrieval efficiency
- Perimeter Protection: 4-channel perimeter protection for analog channels (tripwire and intrusion detection powered by AI)
- Face Detection: 2-channel face detection (up to 8 face images/s per channel); 6 face attributes
- Face Recognition: Up to 10 face databases with 10,000 images; 2-channel face recognition
- SMD Plus: 4-channel SMD Plus for analog channels (secondary filtering for human and vehicle) or 6-channel SMD by camera
- AI Coding: 4-channel AI Coding — saves storage and bandwidth while maintaining target details
- AI Video Quality Analytics: 4 channels — detects brightness levels, color cast, defocus, overexposure, contrast levels, black and white
- Scene Changing: 1 channel
- Irregular Black Block Masking: 1 channel
Power Supply: 12V DC
Power Consumption: <10 W (without HDD)
Physical:- Form Factor: Compact 1U
- Dimensions (W×D×H): 260.0 mm × 237.8 mm × 47.6 mm
- Weight: Approx. 0.9 kg (without HDD)
Operating Conditions: -10°C to +55°C; Humidity 10%–90% (Non-Condensing)
Key Specs: Dahua DH-XVR5104HS-5M-I3/T 4-Channel Penta-brid 5MP WizSense XVR, 4× BNC Analog Input (HDCVI/AHD/TVI/CVBS), Up to 6 IP Channels (6MP), 4-Channel Two-Way Talk over Coaxial Cable, 4-Channel AcuPick, 4-Channel Perimeter Protection, 2-Channel Face Recognition (10 Databases / 10,000 Images), 4-Channel SMD Plus, AI Coding, Smart H.265+/H.265, HDMI 4K + VGA Output, 1 SATA up to 16TB, 32 Mbps Bandwidth, 12V DC, Compact 1U
Usage: Small to Medium Surveillance Systems, Residential Security, Retail Stores, Offices, Cashier Zones, and Any Installation Requiring Hybrid Analog/IP Recording with Advanced AI Analytics and Two-Way Audio Communication
